Split Door Storage Box - Carbon Fiber Version - Limited Edition
Split Door Storage Box - Carbon Fiber Version - Limited Edition
Free Shipping | Delivery ETA: 3–5 Days
Spacious and lightweight carbon fiber and aluminum storage box designed for the Sprinter rear door gear rack.
- FREE shipping to the lower 48 states.
- Download large model mounting instructions [PDF]
- Download regular model mounting instructions [PDF]
Key Features:
- Constructed from an aluminum frame and carbon fiber panels for high strength to weight ratio
- Split door design allows convenient access to gear without fully opening the unit
- Integrated exterior L-Tracks for adaptable mounting of additional gear and accessories
- Top door supported by dual gas struts for effortless self opening
- Zero rust design eliminates corrosion from road salt and snow exposure
- Carbon fiber panels secured by full perimeter screws for maximum rigidity
- Premium rubber seal creates a watertight, dustproof barrier against highway driving rain
- Available in Large (39.4" / 100 cm) with removable shelf or Regular (29.5" / 75 cm) with open interior
- Includes built in locking mechanism with option for secondary padlock
Measurements:
-
Large Model
- Dimensions: 21.7" W x 17.7" D x 39.4" H (550 mm x 450 mm x 1000 mm)

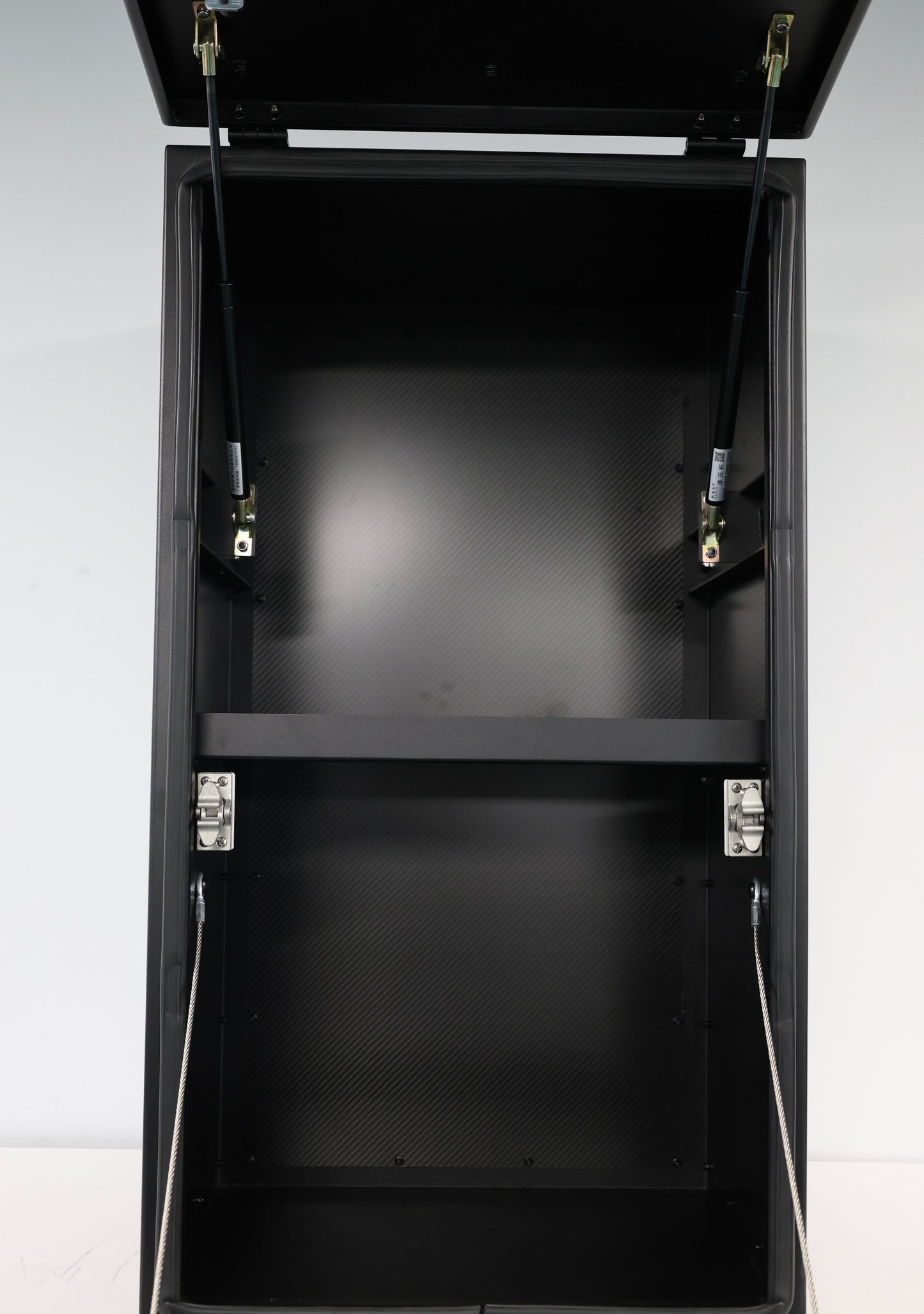

- Internal Config: Includes removable shelf at 19.5" mid point
- Weight: 53.5 lbs (24.3 kg)
-
Regular Model
- Dimensions: 21.7" W x 17.7" D x 29.5" H (550 mm x 450 mm x 750 mm)
- Internal Config: Open interior
- Weight: 39.5 lbs (18 kg)
Description:
The Split Door Carbon Fiber Storage Box combines a rigid aluminum frame with carbon fiber back and side panels to deliver maximum utility with minimal weight. This hybrid construction reduces the unit's weight by up to 5kg compared to all aluminum counterparts, while offering superior strength and a modern aesthetic that withstands harsh environmental conditions.
Designed for versatility, this box features a unique split door system. The top door is supported by dual gas struts for smooth operation, allowing quick access to essentials without exposing the entire contents of the box. The exterior is upgraded with integrated L-Tracks, providing a dedicated mounting interface for recovery boards, tools, or additional accessories.
The interior is tailored to the box size: the Large model includes a removable shelf for organized storage, while the Regular model offers a spacious open cavity for bulkier items. To protect your gear, the doors are lined with premium rubber seals to guard against the elements, and the unit is finished with a dual locking system to ensure security on the road.
FAQ:
1. Will mounting a box this size damage my rear door hinges or cause the door to sag over time?
No, these boxes are lightweight (39.5 lbs or 53.5 lbs), so they will not damage your hinges. However, please make sure the total weight does not exceed your rack's limit. If you are using our gear rack, the limit is 180 lbs. If you use another brand, please check their specific rating.
2. Does the box obstruct the rear parking sensors or cause the blind spot monitoring system to beep constantly in reverse?
This depends on how high you mount it. If it is mounted too low, it might trigger the sensors. You can fix this by mounting the box higher up or adjusting the angle of your sensors.
3. Is this box compatible with existing Sprinter carrier plates from brands like Owl Vans, Aluminess, or other standard panels?
This depends on the gear rack. Please check the measurements or contact us before purchasing to ensure it fits your setup.
4. Is the weatherproof seal capable of withstanding high pressure car washes and driving rain at highway speeds?
The box is highly weather resistant. It utilizes premium rubber seals to protect against rain and road spray. However, due to the split door design, it does not feature a continuous single piece seal like our regular models. We recommend avoiding direct high pressure water spray at the door seam.
5. Does the box interfere with the rear door opening fully (180° vs 270° hinges) or hitting the side of the van?
This depends on your gear rack settings. After installing, check the door opening angle carefully to make sure the box doesn't hit the side of the van. You may need to install a limit stop on your door hinge or use a check strap to stop the door earlier.
6.How secure is the locking mechanism against theft for high value items?
The box features a dual point locking system to resist prying, with the option to add secondary padlocks for double security. Structurally, the carbon fiber panels are anchored by a full perimeter of screws. This reinforced assembly prevents the panels from being kicked in or pried off the frame.
