Isotherm

3160BB3C00017

Isotherm Drawer 160 - 5.5 cu ft

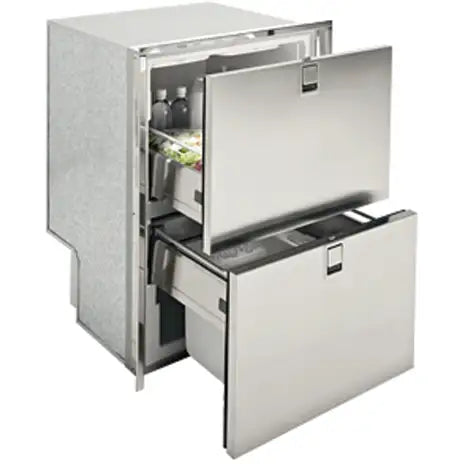

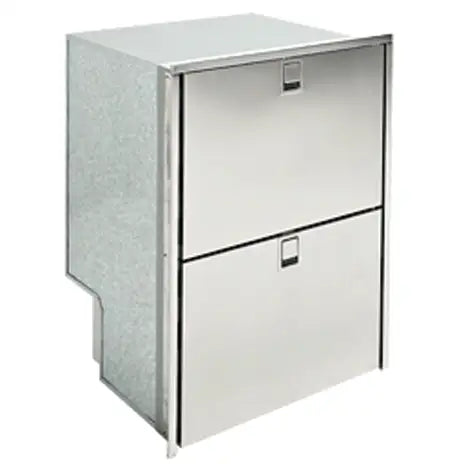

The Isotherm Drawer DR 160 Light INOX Refrigerator / Freezer- 5.5 cu. ft. features a user-friendly design, high quality materials and robust construction to ensure a long service life in the marine environment. The lower drawer is the freezer compartment. Both drawers have a positive latching handle and the unit works with AC and DC power.

Features:

  • Rugged drawer construction specifically designed for the marine environment
  • Positive latching handles and lock mechanisms keep drawers closed even in rough sea conditions
  • Universal DC / AC works with common power supplies used worldwide
  • User-friendly access and ease of use
  • Stainless steel drawer fronts, handles and flange
  • The Isotherm warranty is 2 years from the date of purchase on all components and a 5 year limited warranty on the compressor

Specifications:

  • Model No. 3160BB3C00017
  • Refrigerator Type: Double Drawer
  • Interior Light: LED (blue)
  • Mount: Built-In / Flush
  • Total Volume / Capacity: 5.5 cu. ft.
    • Refrigerator (top): 3.2 cu. ft
    • Freezer (bottom): 2.3 cu. ft
  • (2) Pull-out refrigerator drawers
  • Compressor: Danfoss BD80F
  • Voltage: 12 / 24V DC and 115 / 230V AC (60 / 50 Hz)
  • Current Draw: 6.0 Amp @ 12V DC (half at 24V DC)
  • Fuse: 15 Amp for 12V DC / 7.5 Amp for 24V DC
  • Drawer and 4-Sided Flange Finish: Stainless steel
  • Operating Ambient Temperature Range: 32°F - 107°F

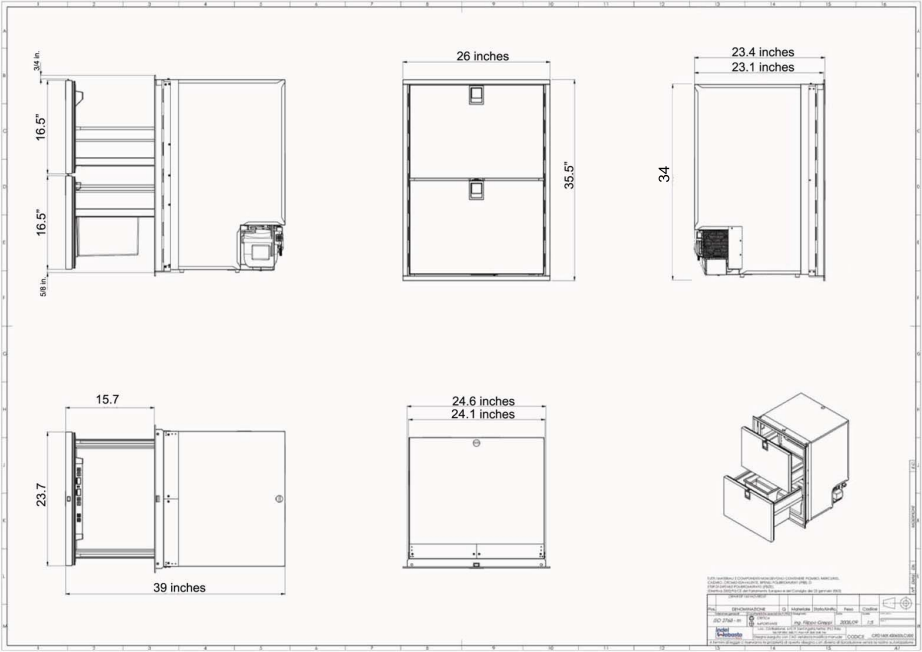

  • Dimensions (Cut-Out): 33.8" H x 24.25" W x 21.5" D
