Dometic RTX 2000 12V Air Conditioner w/ Install Kits + 200Ah LiFePO4 + Premium Gasket

Suggested Blog Post: Dometic RTX vs Nomadic Cooling

INCLUDES:

• (Qty 1) Dometic RTX 2000
• (Qty 1) Dometic RTX Installation Kit

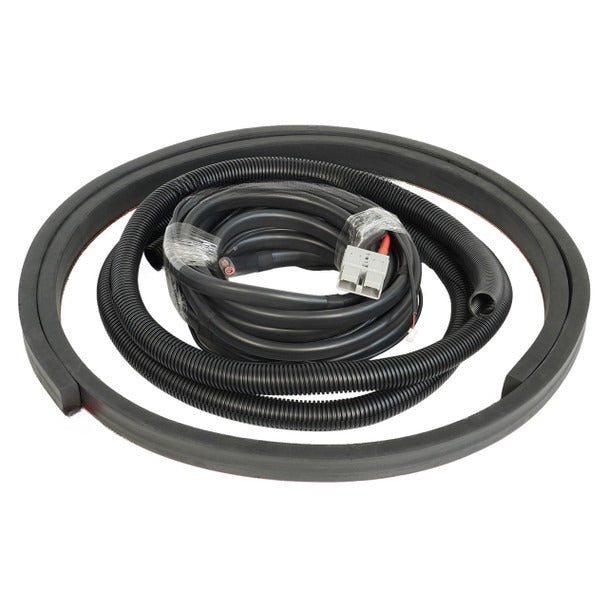

• (Qty 1) Dometic RTX 4AWG Wiring Kit - 26 ft
• (Qty 2) EcoFlow Lithium 12V 100Ah Deep Cycle LiFePO4 Batteries
• (Qty 1) Premium Dual Layer Gasket

Typically Ships Same or Next Business Day

• Same-Day Pick Up Available @ Our West Fargo, ND or Sioux Falls, SD Warehouses

Product Overview Video

MAXIMUM COOLING, MINIMUM ENERGY

The third generation CoolAir from Dometic includes an entirely new technology. The ingenious Dometic CoolAir RTX 2000 provides added cooling performance and runtime compared to other units - without consuming more energy! The variable speed inverter compressor allows for best-in-class cooling while operating both quietly and efficiently.

This unit is self-contained, meaning you do not need a thermostat or any additional components to operate this 12V battery powered unit. It is unbelievably efficient with only 19A consumption in Eco mode. Power consumption in other modes ranges between 10 amps to 58 amps.

• 6,824 BTU, 12 Volt - (Dometic advertises lab-tested performance of the RTX unit. Most competitor brands only advertise "Rated" BTU.)
• INTEGRATION INTO ROOF
• VARIABLE SPEED CONVERTER COMPRESSOR
• 180Ah+ BATTERY BANK RECOMMENDED
• BEFORE ORDERING, PLEASE REVIEW INSTALLATION MANUAL
  • Professional installation recommended. Installation error can cause damage or injury. A professional installer is able to adhere to fitment and electrical wiring standards in your area. If you are not confident in personally installing this unit, please contact a trusted local technician for support.

Installation Video

Not Included:

• Batteries
• Fuse Breakers
• RV Roof Sealant

Warranty:

1 Year Manufacturer Warranty

Freight

This product ships LTL Freight. For residential deliveries, the customer will need to be available by phone for the carrier to schedule delivery. Prompt scheduling is required.

EFFICIENCY THAT WORKS FOR CAMPER VANS & TRUCK CABS

A familiar picture for offgrid campervans and truck parking areas: drivers leaving the engine running for hours to use the air conditioner or to recharge the batteries during their resting periods. Not only is this terrible for the environment, it’s also against the law in most areas. Tons of fuel wasted, and operators pay dearly for it. Plus, it accelerates engine wear. The Dometic RTX keeps operating costs down. Equally important to is the fact that it improves safety and thus ensures that operators remain safe and sound. The Dometic CoolAir RTX is a powerful self-contained air conditioner.

...AND MORE

• 2000W (6,824 BTU), 12 V - (Dometic advertises actual performance. Most competitors advertise their unit's "Rated" BTU.)
• Up to 12 hours of running time
• Very quiet
• The parking cooler is suitable for ambient temperatures of 41 °F to 126 °F
• Turbo cooling operating mode for quick cooling
• All A/C components integrated into roof unit
• Highly efficient: only 19A in Eco mode. Power consumption in other modes ranges between 10 amps to 58 amps.

MORE EFFICIENCY AND POWER

The Dometic CoolAir RTX comes with an entirely new technology to continue a unique success story. CoolAir compressor parking coolers have been around for over ten years to improve working conditions, safety and cost efficiency in the European utility vehicle industry. The third generation Dometic CoolAir roof air conditioners do that in two convincing ways: it provides more cooling performance and a longer running time while consuming less energy than its predecessor model. The RTX 2000 generates more than twice the cooling power of the RTX 1000, but at the same running time. All of this is possible thanks to the use of a variable speed inverter compressor, which makes for excellent cooling performance and amazingly efficient and quiet operation.

QUALITY FEATURES

The Dometic Coolair RTX 1000 creates pleasant temperatures for up to twelve hours before the battery monitor gives advance warning and finally cuts off the power supply to keep the engine ready to start. The even more powerful RTX 2000 uses its ample capacity to face hot temperatures in the truck cabin for up to twelve hours. Added to this, the CoolAir RTX is amazingly quiet in operation. The two-cylinder compressor works unnoticeably, leaving the driver to rest perfectly to enjoy all the comforts of their cabin: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner. Drivers are fascinated by the enormous staying power of the CoolAir RTX.

SPECIFICATIONS

GENERAL

• SKU number 9600028490 & 4450022959 & 9100300152
• Model RTX2000
• Model on label RTX2000
• Cool Only or Heat Pump Cool Only
• Certification Not NRTL Tested
• Product Description Truck Air Conditioner, 2000W (6,824 BTU), 12 V
• Thermostat Zones Single

DIMENSIONS

• Dimensions full product depth 25.39 "
• Dimensions full product height 12.13 "
• Dimensions full product width 33.86 "
• External dimensions height 6.6 "
• External dimensions length 25.4 "
• External dimensions width 33.9 "
• Internal dimensions height 5 "
• Internal dimensions length 15 "
• Internal dimensions width 14 "
• A 18.9 in. x 15.3 in. (480 mm x 390 mm) opening is required.
• Net weight 70.56 lbs

ELECTRICAL

• Input voltage (DC) 12 V

PERFORMANCE

• Cooling capacity (ISO 5151) 2000 W
• Cooling Capacity 6824 BTU

DOWNLOADS

• Installation & Operating Manual

RTX Unit Placement Requirements

• A 18.9 in. x 15.3 in. (480 mm x 390 mm) opening is required. The roof opening is part of the return air system of the unit.
• The joist support frames must be spaced no greater than 16 in. (406 mm) on center. The unit is designed to fit over an existing roof vent opening or a new roof opening created by the installer.
• When no roof vent is available or when another location is desired, an opening must be cut through the roof and ceiling of the vehicle. This opening must be located between the roof reinforcement beams.
• Mount the unit slightly forward of the vehicles center (front to back) and centered from side to side.
• The ventilation openings must not be covered. A minimum distance of 3.8 in. (98 mm) must be maintained from other external attachments.

EcoFlow Lithium 12V 100Ah Deep Cycle LiFePO4 Batteries

- Best lithium battery for RVs, cabins, and off grid workshops

- Group 27 equivalent

- 1280Wh capacity, 1280W continuous output

- Best-in-class EV-grade LFP cells with 6000+ cycles

- 5-year warranty, UL, CE, FCC, UN38.3, RoHS certified

- 50% less weight, 50% more energy than lead acid

- IP65 waterproof rating

- X-Guard BMS with low-temp cut-off

- Highest-level UL5VA flame-retardant casing

Premium Dual Layer Gasket

Upgrade your Dometic RTX or Velit rooftop air conditioner with our Premium Dual Layer Foam Gasket. Specifically designed for rooftop models, this 1-7/8" thick gasket can be easily notched to fit the roof of any van.

Our premium foam gasket features a dual-layer design for superior performance. The top layer is made of high-density closed-cell foam that provides an excellent seal, preventing air leaks and enhancing the efficiency of your AC unit. The bottom layer consists of a lower density open-cell foam that offers exceptional sound dampening, reducing operational noise for a quieter environment.

The gasket comes as a one-piece design with a self-adhesive backing tape for easy installation. For a leak-proof seal, we recommend using a silicone sealant.

Please note, this gasket is an upgraded premium product and is not included with a Dometic RTX or Velit A/C unit.

Dimensions (L x W x D):

• From the outer edge of the gasket: 19.5" x 23-1/8" x 1-7/8"
• From the inner edge of the gasket: 15.5" x 19" x 1-7/8" *Please note, dimensions are measured by hand and there may be small discrepancies
