20-Gallon Galley Water Tank (Fresh/Grey)

About the Product

Fits seamlessly into tight spaces without sacrificing interior room. Compact box shape works in galley cabinets, bench seats, or custom storage cavities. Use it as a fresh water tank or a grey water tank. TEi lists it as both a potable water tank and a waste holding tank. Drains straight through your subfloor with a ball valve or connects to an undermount tank for additional storage.

Features

Specifications

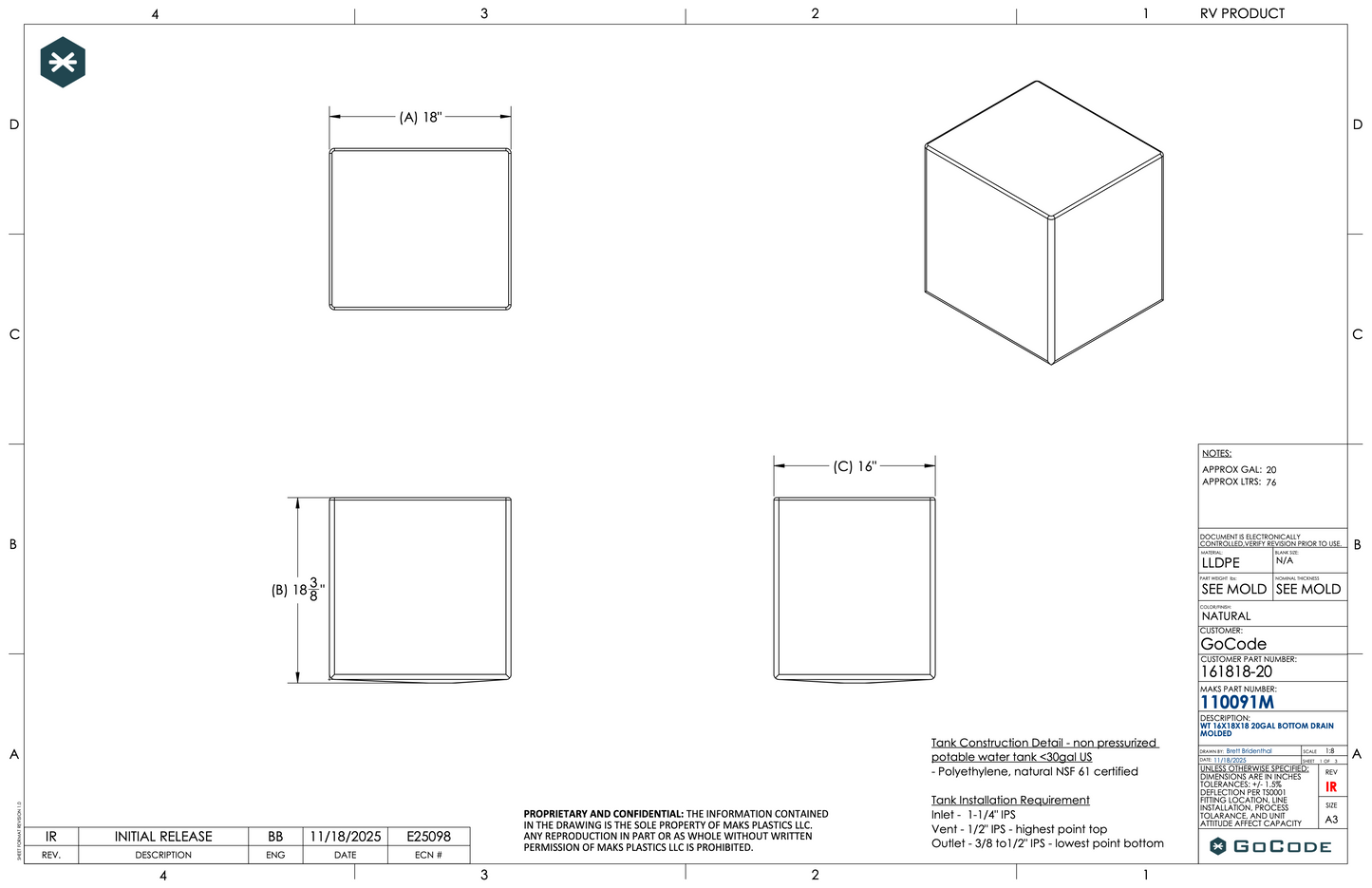

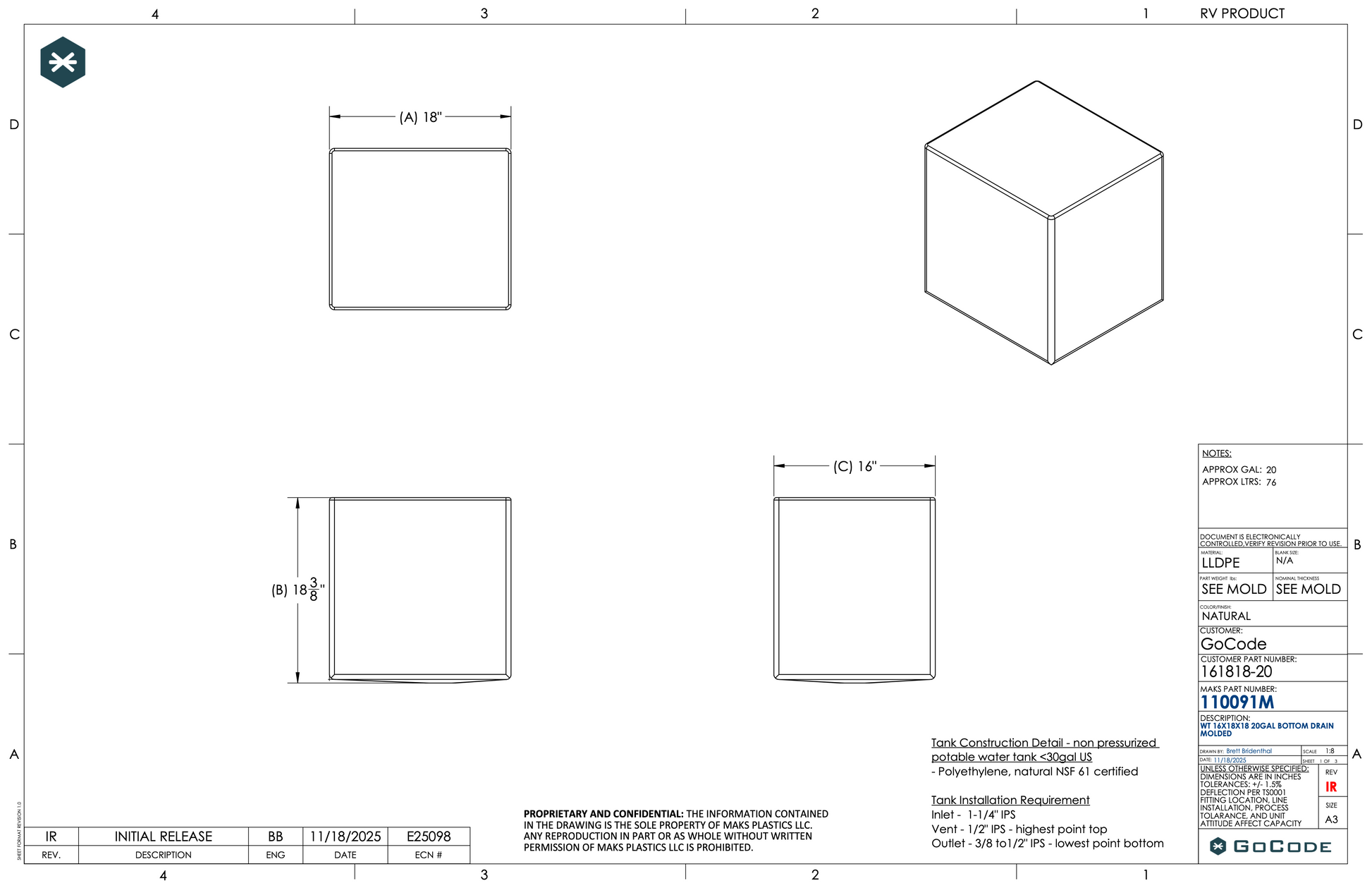

• Nominal dimensions: 18" L x 16" W x 18.375" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 20 gallons
• Dry Weight: 16 lbs
• Filled Weight: 183 lbs
• Recommended Sensor: KUS S5U-17
• Recommended Heating Pad: Facon CW-T1218
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• TEi listed and RVIA approved
  • TEi listed to IAPMO TS 4 for fresh water
  • TEi listed to IAPMO TS 2 and CSA B45.6 for grey water (waste holding)

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• 1/2" NPT fittings, pre-installed
• 1.5" NPT fittings, pre-installed

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

• Compatible with any van, truck, or RV platform where dimensions allow, including Sprinter, Transit, and ProMaster builds

Resources

• Install guides
• Our Blog
• TEI Listing
