36-Gallon Wheel Well Water Tank - Center (SP-C-36)

About the Product

Made for a Mercedes Sprinter. Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.

Features

Specifications

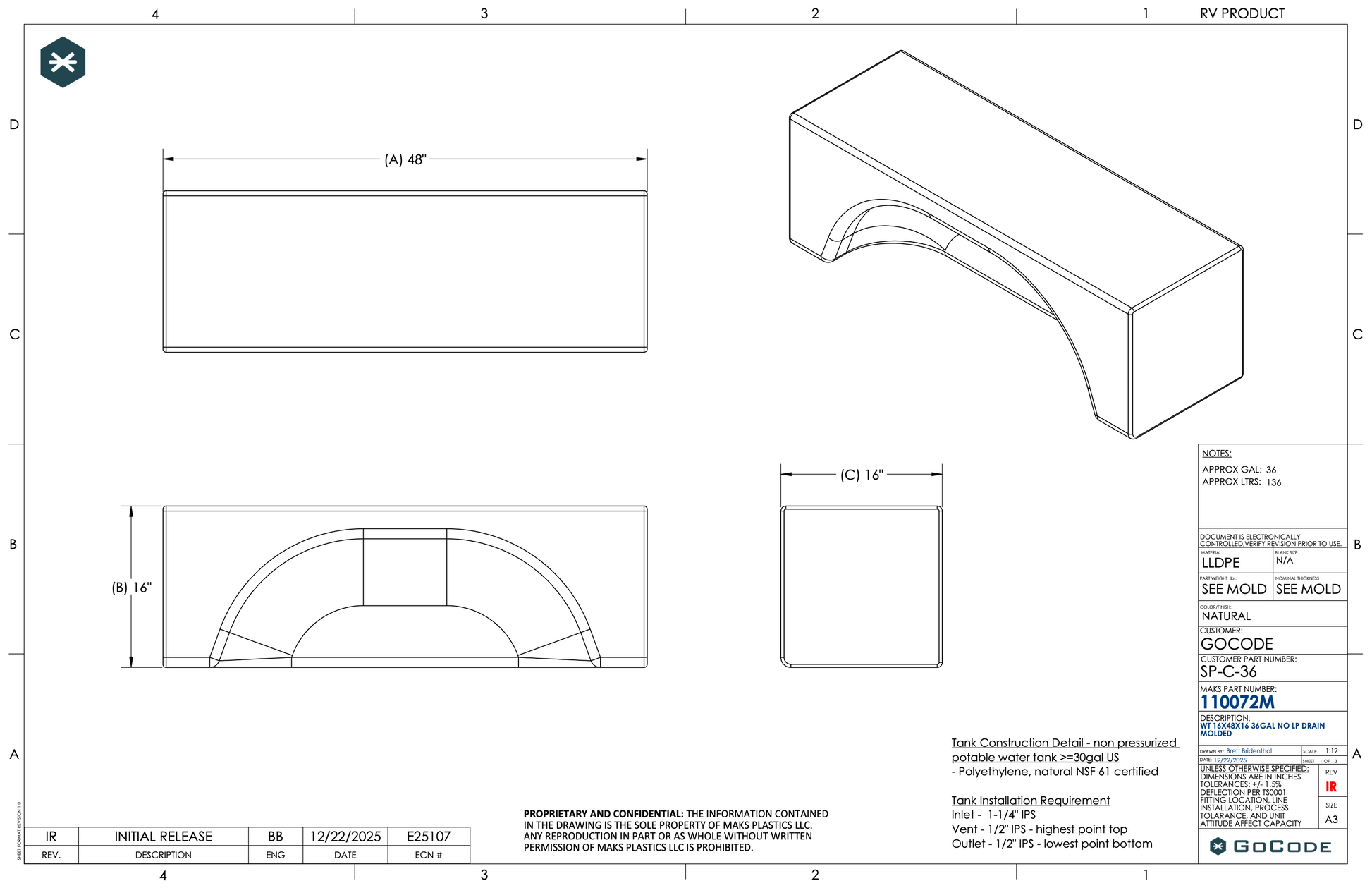

• Size: 48" long × 16" deep × 16" tall
• Capacity: 36 gallons
• Weight: 31 lbs
• Recommended sensor: KUS 154015F, 15" (1.5" NPT threaded)
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEi listed and RVIA approved

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

Shipping & Lead Time

• Ships in 1-2 business days

Compatibility

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models (see below)
• Can be placed on either driver or passenger side
