28-Gallon Dodge Promaster Wheel Well Water Tank - Center (PM-C-28)

About the Product

Designed specifically for the Ram ProMaster, this tank contours directly over the wheel housing, letting you build your bed or cabinetry flush against the wall without losing interior volume.

Features

Specifications

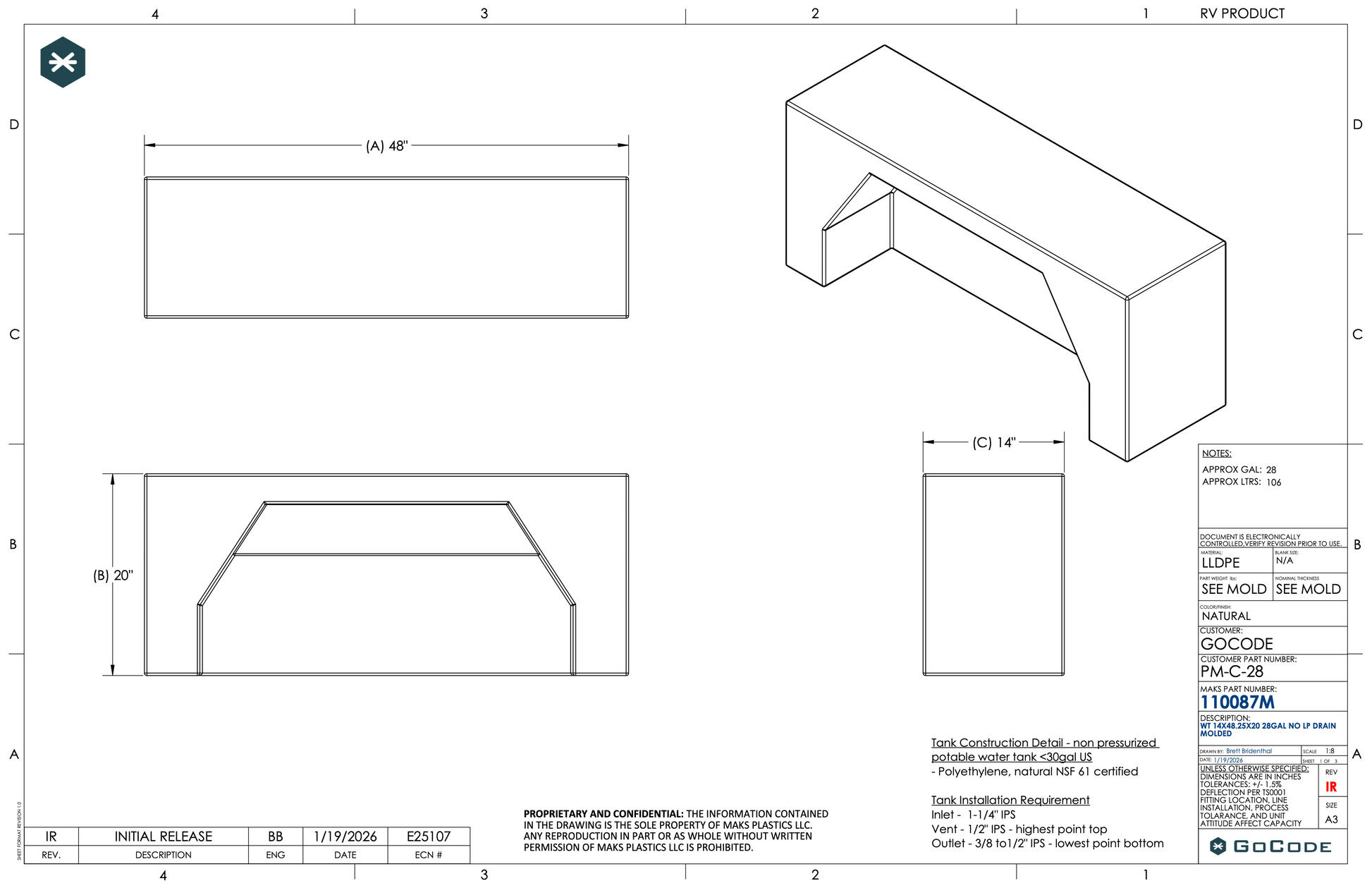

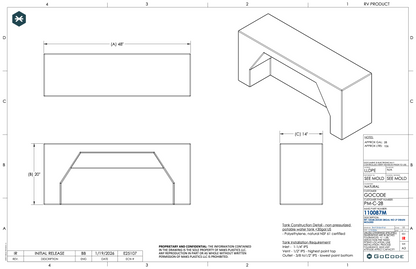

• Size: 48" long × 14" wide × 20" tall
• Capacity: 28 gallons
• Weight: 31 lbs
• Recommended sensor: KUS 154019F, 19" (1.5" NPT threaded)
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA
• IAPMO TS 4 Certified
• TEi listed and RVIA approved

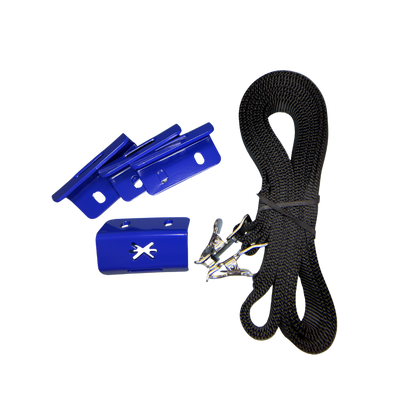

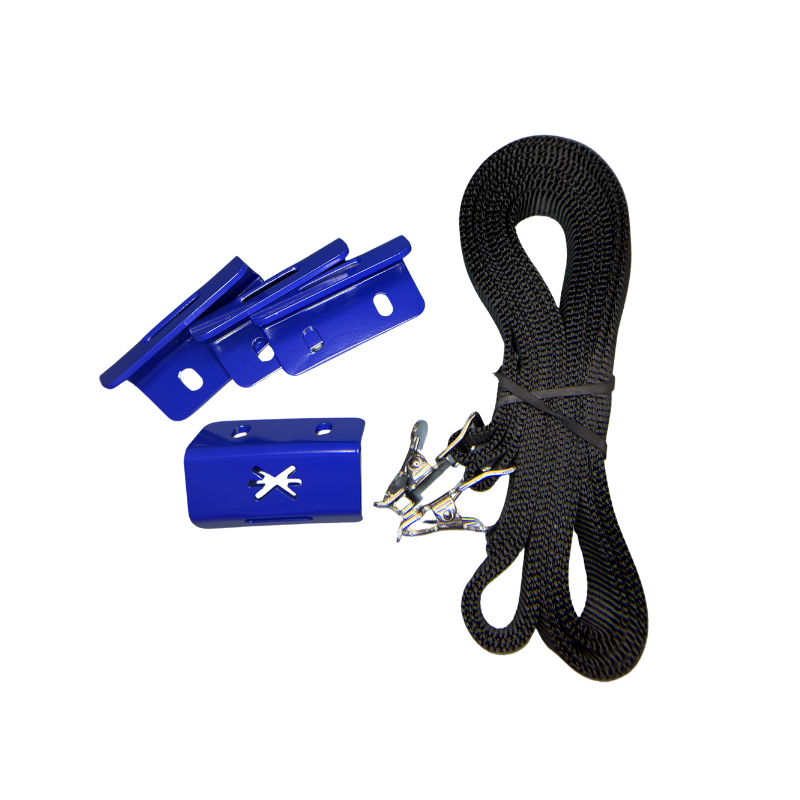

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end, open and ready to use
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

Shipping & Lead Time

• Ships in 1-2 business days

Compatibility

• ProMaster designed for a near-perfect fit over the factory wheel well
• Sprinter & Transit will fit securely with a gap around the top of the wheel well, ideal for insulation or sound deadening
• Compatible with other vehicles such as box trucks and trailers where dimensions allow
• Can be placed on either driver or passenger side
