25-Gallon Dually Wheel Well Water Tank (SP-DU-25)

About the Product

Designed specifically for dual rear wheel vans, this tank fits the wheel well space, keeping your floor plan open while adding water capacity.

Features

Specifications

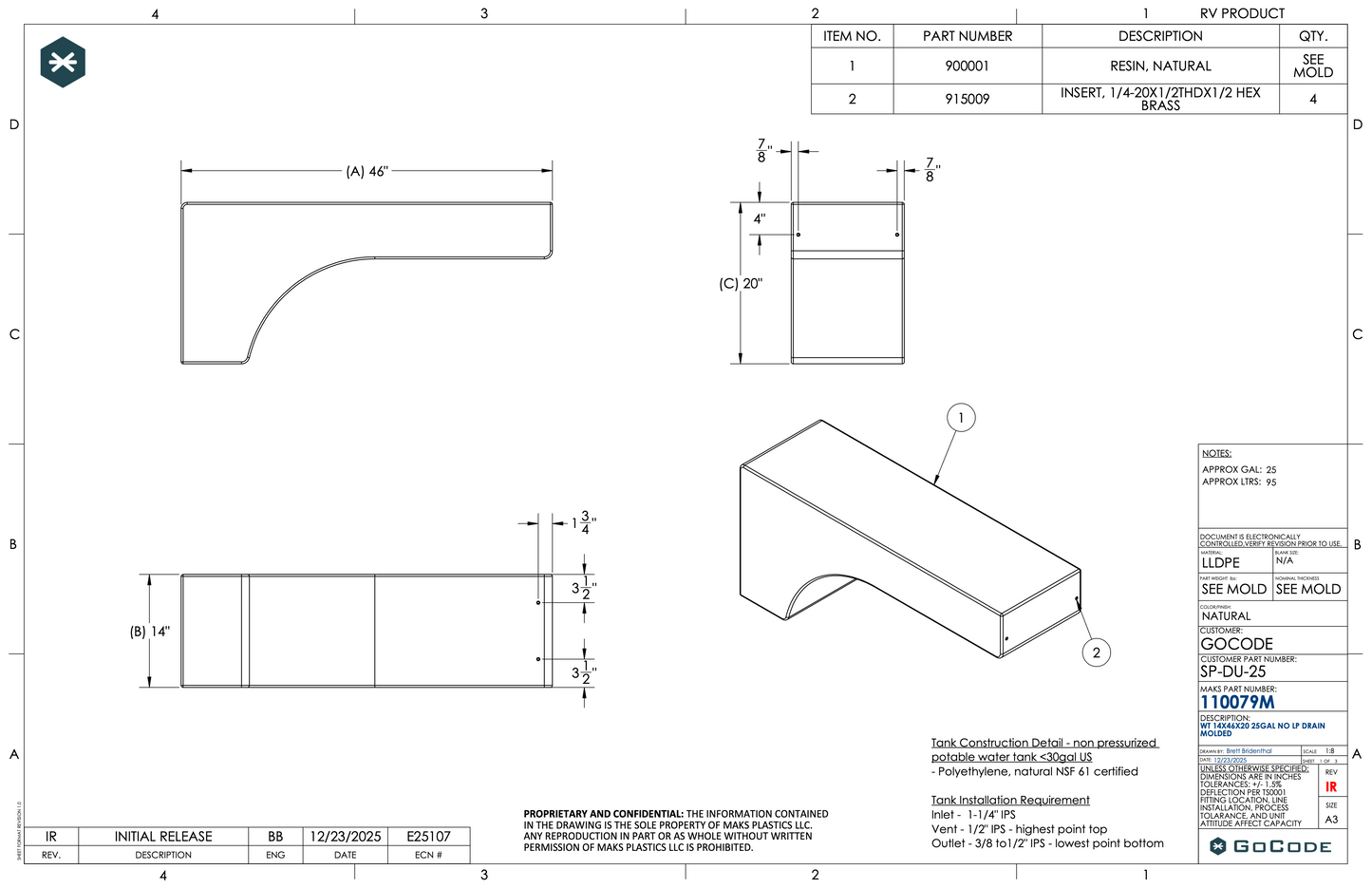

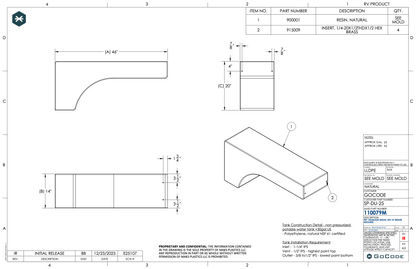

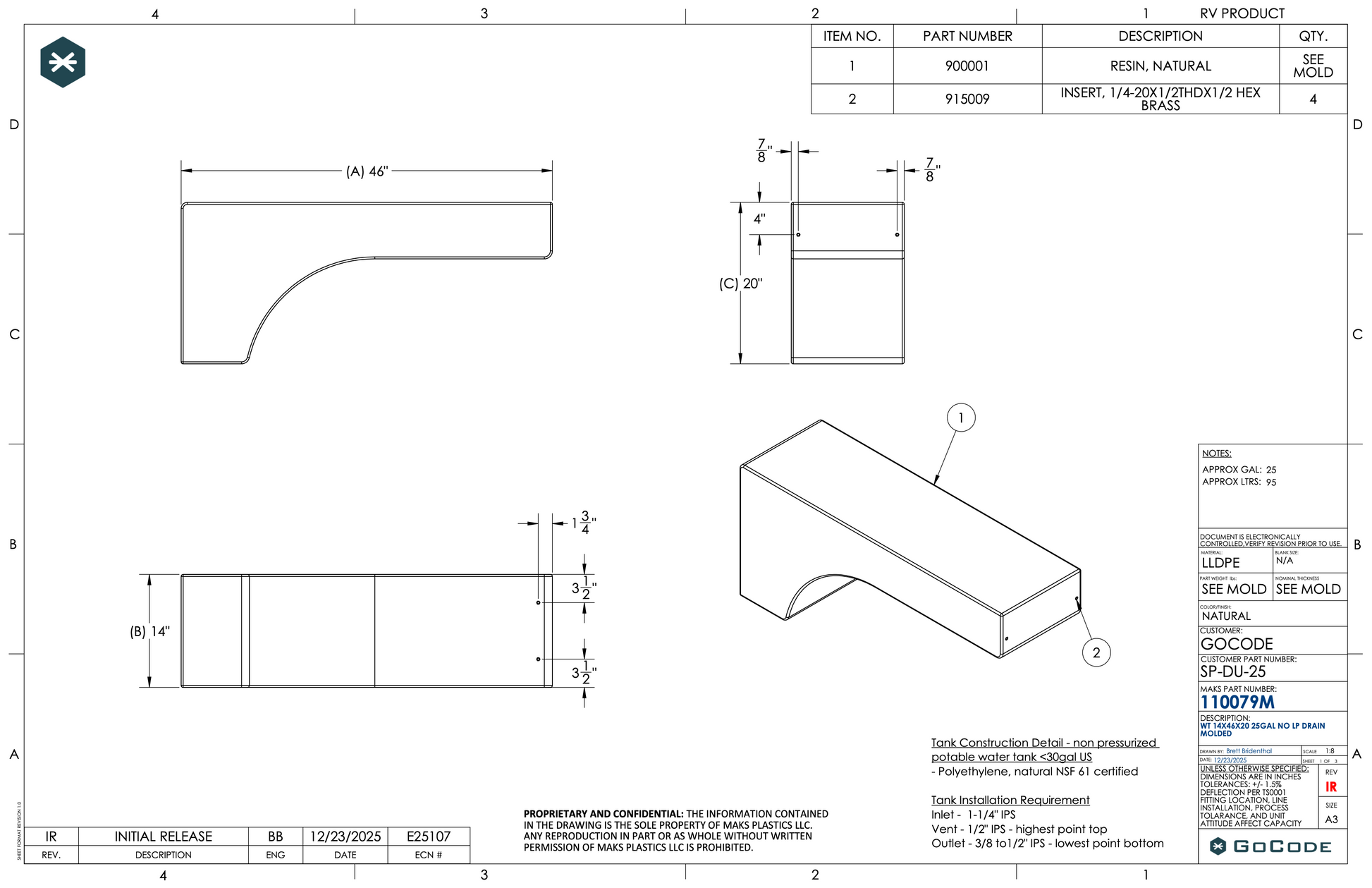

• Size: 46" long × 14" wide × 20" tall
• Capacity: 25 gallons
• Weight: 28 lbs
• Recommended sensor: KUS 154019F, 19" (1.5" NPT threaded)
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA

What's Included

• Water Tank
• Support plate and mounting hardware included with every order

Ports & Plumbing

• (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the larger end
• (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
• (1) 1/2" NPT port on the end above the wheel well
• (1) 1.5" NPT port on top, pre-marked, drill out to use

Shipping & Lead Time

• Ships in 1-2 business days

Compatibility

• Sprinter 3500 Dually primary fit (also fits Sprinter T1N dually)
• Transit Dually direct fit with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models
• Can be placed on either driver or passenger side
