24-Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)

About the Product

Designed specifically for the Transit van, this tank fits the wheel well space, keeping your floor plan open while adding water capacity. Sits offset toward the rear or front of the wheel well depending on placement side.

Features

Specifications

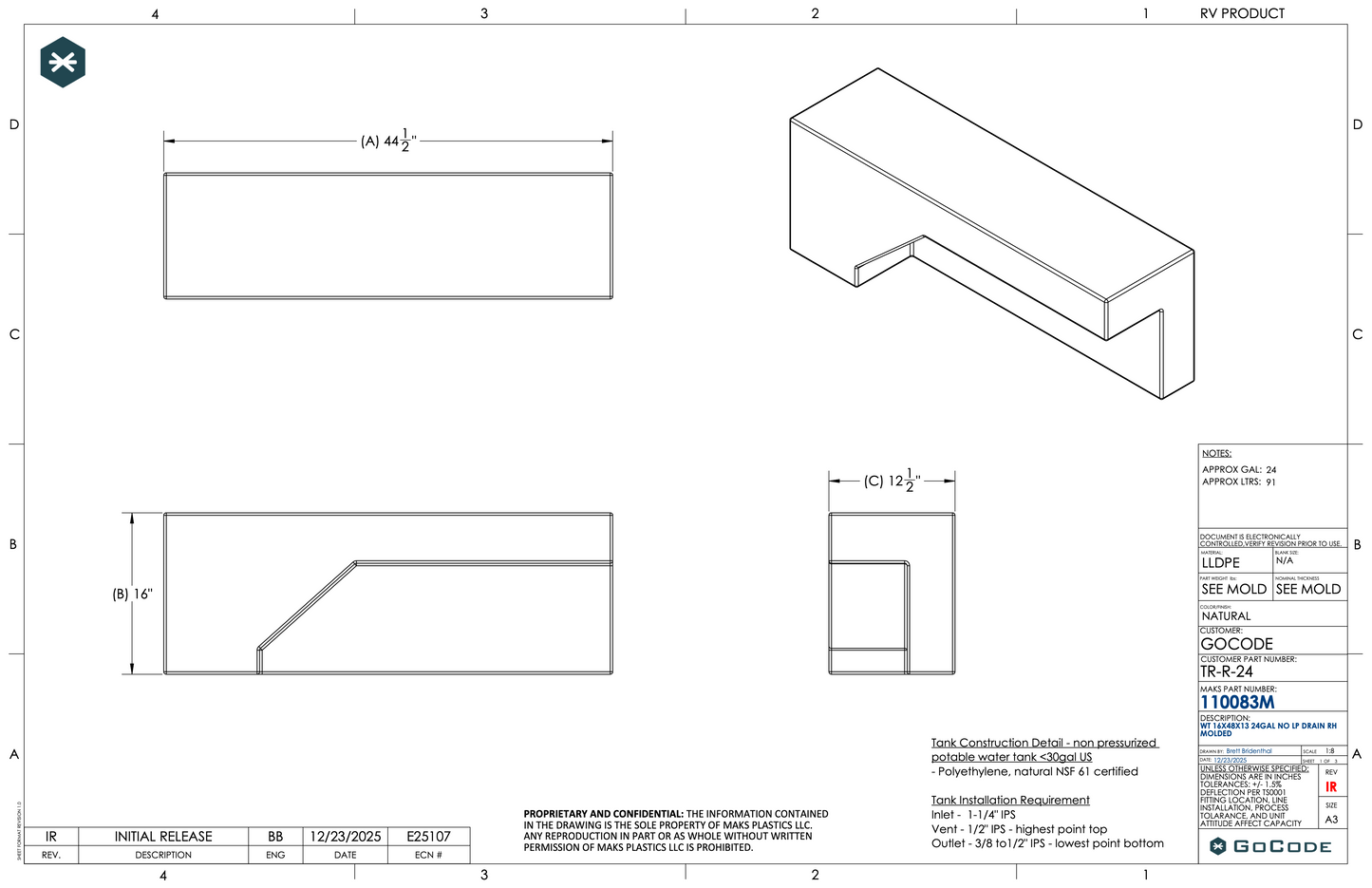

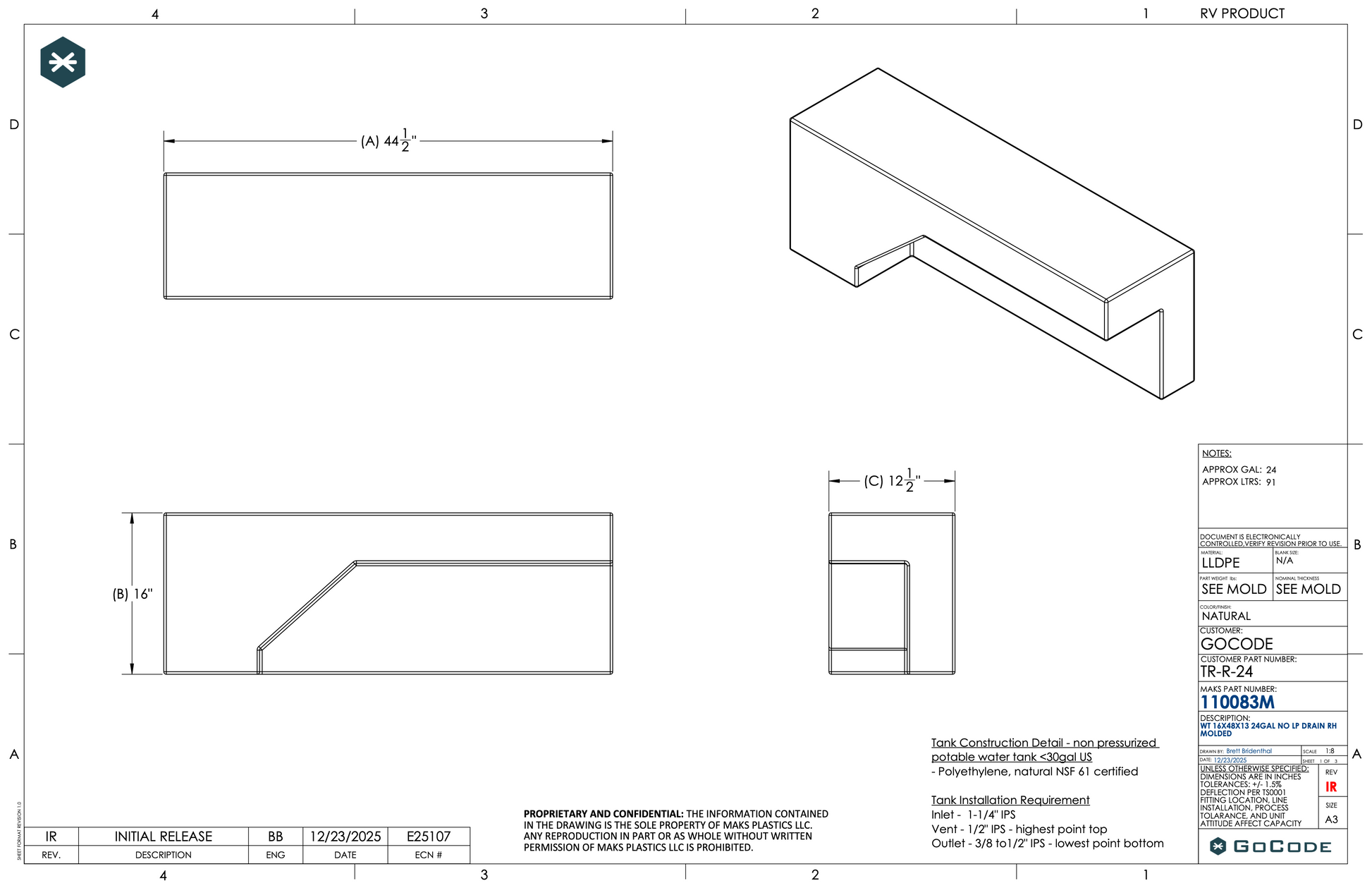

• Size: 44.5" long × 16" wide × 12.5" tall
• Capacity: 24 gallons
• Weight: 22 lbs
• Recommended sensor: KUS 154015F, 15" (1.5" NPT threaded)
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified

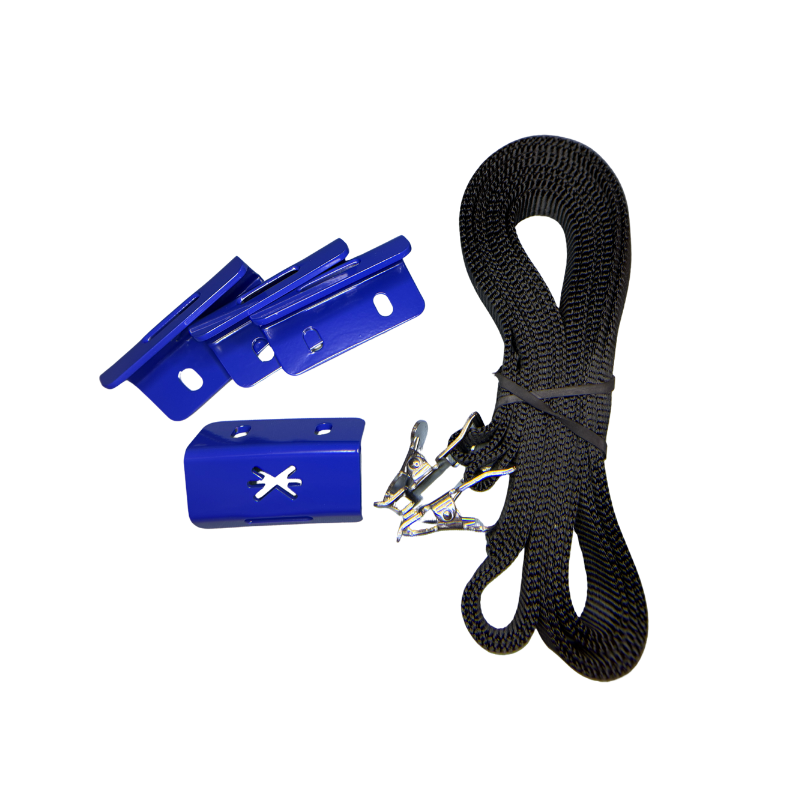

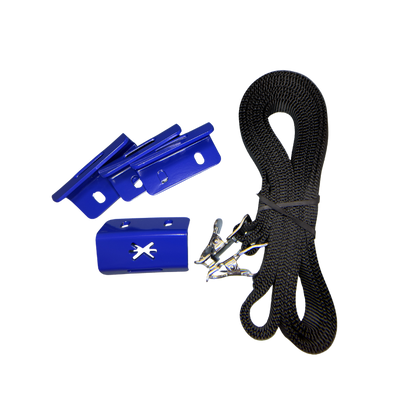

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (1) 1/2" NPT port on the open end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

Shipping & Lead Time

• Ships in 1-2 business days

Compatibility

• Designed specifically for the Transit van
• May also fit other makes and models
• Passenger side: tank sits with majority rear of wheel well
• Driver side: tank sits with majority front of wheel well
