19-Gallon Slim Dually Wheel Well Water Tank (SP-DU-19)

About the Product

Designed specifically for dual rear wheel vans, this slim tank fits the wheel well space without taking up any width between the wheel wells, leaving the full width free for cabinetry or gear storage.

Features

Specifications

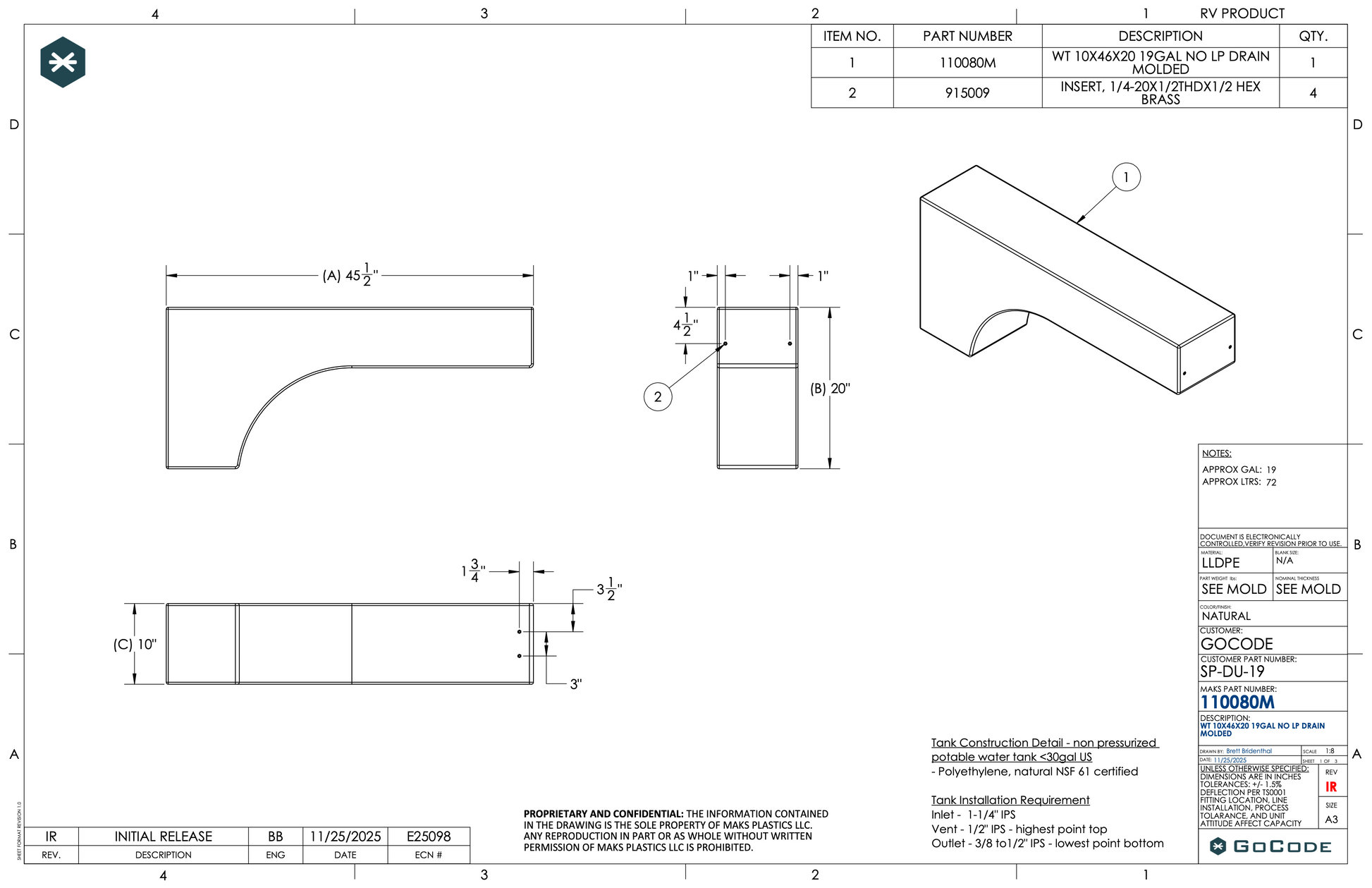

• Size: 46" long × 10" wide × 20" tall
• Capacity: 19 gallons
• Weight: 27 lbs

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEi listed and RVIA approved

What's Included

• Water Tank
• Support plate and mounting hardware included with every order

Ports & Plumbing

• (2) 1.5" NPT ports on the larger end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the larger end
• (1) 1.5" NPT port on the end above the wheel well, pre-marked, drill out to use
• (1) 1/2" NPT port on the end above the wheel well
• (1) 1.5" NPT port on top, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Shipping & Lead Time

• Ships in 1-2 business days

Compatibility

• Sprinter 2500 & 3500 Dually direct fit (also fits Sprinter T1N)
• Transit 2500 & 3500 Dually fits with slightly more room around the wheel well for insulation
• ProMaster requires approximately 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models
• Can be placed on either driver or passenger side, positioned in front of or rearward of the wheel well
