View Mark 3 Series User Manual
Cooling Capacity | 1550W/ 5280BTU |
Heating Capacity | 1700W/ 5800BTU |
Working Mode | Rocket/Cool/Sleep/Fan/Dry/Care/Heating |
Cooling Rated Input | 500W |
Wind Speed Level | 4 |
Rated Working Voltage | 48V DC |
Working Voltage Range | 38V-58.5V |
Thermostat Setting | Cooling: 61℉-82℉/16°C - 28°C Heating: 64℉-88℉/18°C - 31°C Dehumidifying: 15% - 90% relative humidity |
AC Adapter Input | 100V-240V (50Hz/ 60Hz) |
Ambient Temperature for Operation | 50°F-104°F/10°C-40°C |
Ambient Temperature for Storage | 14°F-140°F/-10°C-60°C |
Refrigerant | R290 |
Unit Size |
22"L x 10"W x 12"H / 56cm x 26cm x 31cm
|
Weight | 22lbs/10kg |
Moisture Protection | IPX4 |
Ventilation Configuration | Dual Hose |

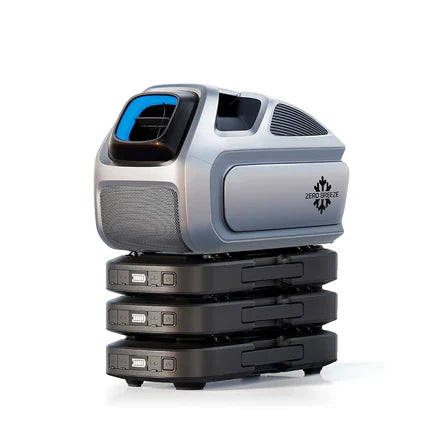

Mark 3 Battery Specification
View Mark 3 Battery User Manual
Battery Type | 21700 Lithium-Ion Polymer Battery |
Net Weight |
14lbs/6.4kg
|
Unit Size |
20"L x 8"W x 4"H / 51cm x 21cm x 11cm
|
Capacity | 1022Wh |
DC Charge Input Voltage | 12V-60V |
Charge from 0% to 80% | About 2 hours (by official power adapter) |
Safety | Short protection Over current protection Low voltage protection Over temperature protection |
Chainable | Support 2, 3, 4, or more batteries chaining one after another |
Operating Temperature |
14°F-104°F/-10℃-40℃
|
Output Power Max | 550W |
Output Voltage | 42V-58.8V |
12V Anderson Output | 12V/10A Max(120W) |
USB Type C | PD(100W Max) |
USB Type A | QC 3.0 18W |
Charging Method | Power adapter from the wall outlet Solar Panels Cigarette Port |
Charging Limited Current | 10A |
Charging while discharging | Yes |
