Vitrifrigo C115/C130/DP150 Black Replacement Door - R501.336.3BP

Name: Vitrifrigo C115/C130/DP150 Black Replacement Door - R501.336.3BP
Brand: RackUp+Go
SKU: R501.336.3BP
Price: 229.99 USD
Availability: InStock

Vitrifrigo C115/C130/DP150 Black Replacement Door - R501.336.3BP

$229.99

Sale Sold out

Free Shipping | Delivery ETA: 3–5 Days

Shipping calculated at checkout.

Quantity

View full details

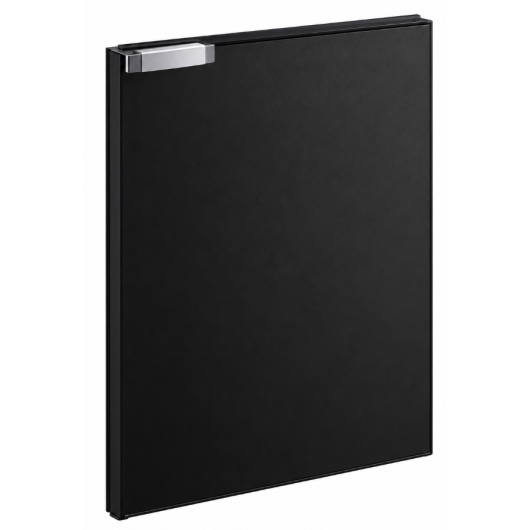

Refresh the thermal performance and look of your galley cooling system with the genuine Vitrifrigo R501.336.3BP Black Replacement Door Assembly.

Designed specifically for larger-capacity Vitrifrigo front-loading marine and RV refrigerators, this complete factory door panel is the direct replacement solution for worn-out, dented, or poorly sealing doors. Over time, persistent exposure to marine environments, road travel, and constant use can warp internal insulation and degrade magnetic gaskets. This factory assembly completely restores an airtight thermal barrier to minimize compressor run time and protect your house battery bank from unnecessary power draw.

Key Features:

OCN Air Lock Integration: Masterfully pre-configured to receive and mount the modern Vitrifrigo OCN Air Lock side-latch handle mechanism for a positive lock during transit (Note: handle/latch hardware is sold separately).
Complete Factory Assembly: Shipped fully built with a fresh magnetic perimeter gasket, core insulation panel, inner storage liner shelves, and the clean black outer face.
Genuine Updated Revision: This exact part number represents the newest factory engineering layout, providing improved durability profiles over legacy components.

Appliance Cutout Dimensions & Fitment Guide:

This replacement door assembly coordinates with the following physical footprint dimensions. Please ensure your cabinet profile matches your specific model below:

For Vitrifrigo C115i / C115IB:
- Cutout Height: 28-1/4" (717 mm)
- Cutout Width: 21-1/2" (545 mm)
- Cutout Depth: 21-1/2" (546 mm)
For Vitrifrigo C130L / C130IB:
- Cutout Height: 30-1/8" (765 mm)
- Cutout Width: 21-1/2" (545 mm)
- Cutout Depth: 21-1/4" (539 mm)
For Vitrifrigo DP150 / DP150IB:
- Double-check your dual-compressor or shared cabinet layout height clearance to ensure standard OCN hinge point alignment.

(Note: Disconnect all 12/24V DC and 115V AC electrical breakers completely before extracting the outer frame hinge pins to perform a safe door swap).

Compatibility Checklist:

This replacement door panel is engineered strictly for the following front-loading models:

Vitrifrigo C115i / C115IB (115 Liters)
Vitrifrigo C130L / C130IB / C130P (130 Liters)
Vitrifrigo DP150 / DP150IB (Dual-Door Configurations)
Select SeaClassic black panel units using the standard side-latch handle profile
