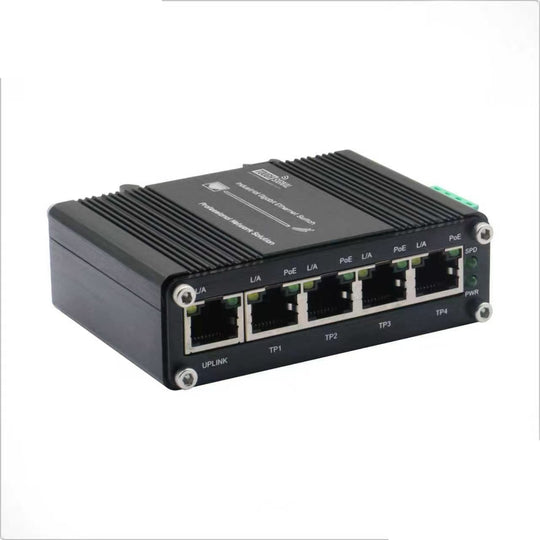

ToughSignal Industrial 5-Port Gigabit PoE+ Switch (12–48V DC)

Introducing the ToughSignal 5-Port Industrial Gigabit PoE+ Switch — the perfect solution for mobile, off-grid, and industrial environments where reliability, DC power flexibility, and compact size matter. Designed specifically for the demands of RV, marine, van conversion, overland, and field-deployable installations, this advanced switch accepts a wide 12–48V DC power input. This eliminates the need for inverters or bulky adapters while providing reliable 48V PoE+ output for your gear.

Equipped with 5 Gigabit Ethernet ports and 4 PoE+ injector ports (Ports 1–4), the switch is ideal for powering enterprise-grade access points, IP cameras, sensors, and other PoE devices directly from your DC system. Engineered with a rugged aluminum enclosure, industrial surge/ESD protection, and DIN-rail or wall-mount compatibility, this switch is built for harsh, space-constrained environments encountered in mobile and off-grid deployments.

Our products are engineered to deliver enterprise-grade performance at competitive pricing, ensuring reliability without compromise. All ToughSignal hardware includes a 1-year manufacturer warranty managed directly by our U.S.-based team — eliminating the hassle of dealing with overseas warranty processes.

Note: This switch is designed for direct-wired 12–48V DC input and does not include a power adapter. Optional fused DC power cables and AC-to-DC adapters are available separately.

Key Features

• 5 × Gigabit Ethernet Ports with auto-MDI/MDI-X for full compatibility with routers, cameras, APs, and LAN devices.
• 4 × IEEE 802.3af/at PoE+ Ports (Ports 1–4) supplying up to 30W per port.
• Wide 12–48V DC Input Range — ideal for RV, marine, off-grid, and industrial electrical systems.
• Non-blocking 10 Gbps switch fabric for high-performance networking.
• 20 Gbps backplane bandwidth and 14.88 Mpps forwarding rate.
• Industrial operating range: -40°C to 80°C for extreme conditions.

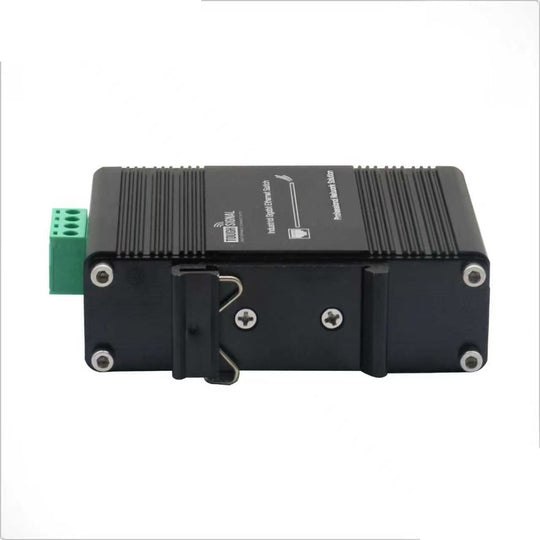

• Aluminum housing with DIN-rail or wall-mount installation options.
• Built-in surge protection on RJ45 and DC input plus ESD protection up to 8kV.

Power Input & PoE Output Capabilities

The switch intelligently adjusts available PoE budget based on input voltage.

• 12V DC Input — Up to 60W total PoE budget
• 24V DC Input — Up to 90W total PoE budget
• 48V DC Input — Up to 120W total PoE budget

Each PoE+ port supports up to 30W (IEEE 802.3at).

Ideal Use Cases

• RVs, buses, motorhomes, van conversions
• Marine vessels and off-grid boats
• Overlanding and expedition vehicles
• Mobile command trailers and emergency response units
• Security camera deployments
• Industrial automation and remote field installations
• Peplink router multi-WAN installations
