ROAMiQ x Victron STACK 48V Power/Control trekMount System | Pre-Wired | Pre-Configured

ROAMiQ × Victron STACK

Bench-Built, Fully Integrated Power & Control System

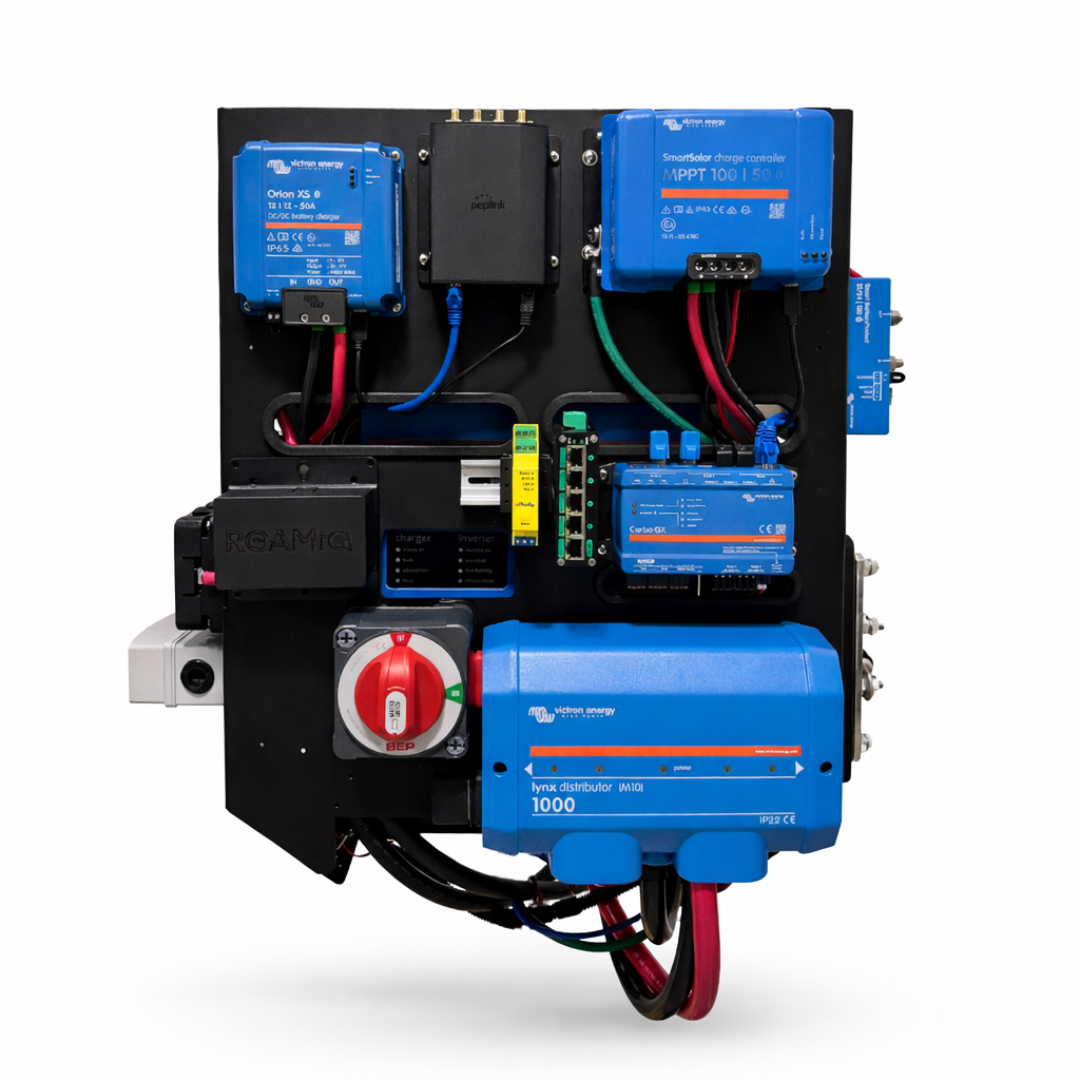

*some components shown in product image may vary - see below for included components

The ROAMiQ × Victron STACK is a bench-built, stacked Victron Power and ROAMiQ Control system engineered to eliminate the time, space, and variability of traditional on-vehicle power builds. Every STACK ships pre-mounted, pre-wired, pre-configured, and fully tested before it ever reaches your door.

Batteries Sold Separately.

Wall-Mounted Display Screen Sold Separately.

Designed for Speed, Density, and Repeatability

STACK consolidates AC power, DC distribution, charging sources, monitoring, and system protection into a compact, low-profile assembly mounted on a structural bracket. Components are vertically stacked using optimized conductor lengths and fixed routing paths, resulting in a dramatically smaller footprint than traditional wall-mounted Victron builds.

The mounting bracket is engineered to install directly over the inverter/charger, forming a compact, protected, and thermally managed power assembly while still respecting Victron’s installation requirements. The bracket geometry is designed to maintain the recommended 4 inches of clearance around the inverter/charger, ensuring proper airflow and heat dissipation as specified by Victron.

Rather than spacing components apart across a large wall area, the system uses a purpose-built structural bracket with integrated active cooling to manage thermal performance within a much smaller footprint. The bracket incorporates dedicated cooling fans that are synchronized with the inverter/charger’s internal fan operation. As inverter load and temperature increase, the bracket-mounted fans activate in tandem, actively moving air across the inverter, surrounding components, and the vertical stack.

This coordinated airflow reduces heat buildup in confined installations, minimizes thermal stress on adjacent components, and supports consistent performance under sustained loads. By integrating airflow management directly into the mounting structure, it eliminates the need for oversized ventilation cutouts or ad-hoc cabinet fan solutions.

The result is a clean, space-efficient installation that preserves Victron-recommended clearances, maintains proper cooling behavior, and enables professional-grade installations in tighter utility bays and cabinets without compromising reliability or serviceability.

Install time is measured in minutes, not days.

Fully Bench-Built & Tested Before Shipment

Each ROAMiQ × Victron STACK is:

• Assembled and wired on the bench

• Electrically verified and inspected

• Pre-configured for proper charging logic and system behavior

• Prepared for fast, clean installation

All internal circuits are completed using properly sized cables, crimped terminals, and heat-shrink.

Modular by Design — Built for Customization

While this version represents a proven baseline configuration, the bracket is intentionally modular and fully customizable.

Any component can be substituted or adjusted to meet the specific requirements of your build, including:

• DC-DC charging configuration, including the additional of high output alternators/regulators

• Solar charge controller selection

• AC or DC distribution layout

• Networking, monitoring, or control components

• Protection and disconnect hardware

Optional extension wings can be added to the mounting system to support additional components now or in the future, allowing the system to scale without redesigning the core assembly.

Compact Footprint, Maximum Capability

By stacking components and eliminating excess wiring length, the system:

• Reduces required cabinet or wall space

• Improves serviceability and visual cleanliness

• Minimizes installer variability

• Creates a repeatable, professional-grade installation every time

The result is a power appliance, not a wiring project.

What’s Included in This Version

This configuration includes a complete Victron-based power architecture with integrated mounting, distribution, monitoring, and charging components, assembled on a modular mounting bracket and delivered ready to install.

• trekMount Modular Mounting Bracket

• ROAMiQ Control Hub
• 5 Zone Lighting Controller
• Victron MultiPlus-II 48/3000/35-50 120V Inverter/Charger (UL
  Listed)

• Victron Orion-Tr 12/48-8A DC-DC

• Victron Energy Cerbo GX MK2
• Victron Lynx Distributor (M10)
• Victron SmartSolar MPPT 100V 20 Amp 12/24/36/48-Volt Solar Charge
  Controller
• Victron Energy Smart BatteryProtect 100A
• Victron MEGA-Fuse up to 80V + Spares
• Solar PV Disconnect 250V DC 32A (2-pole)
• (Qty 2) Blue Sea Systems Shore Power 30AMP Breaker
• Victron Battery Switch On/Off 275A

• Blue Sea Systems 120V 4 Position AC Distribution Panel
• Victron Orion-Tr 48/12-30A Isolated DC-DC Converter
• 20 Circuit 12V/24V DC Fuse Block - 16 low amp circuits (1-25A) + 4 high amp J-Case Circuits (20-50A) - Total current capacity up to 200A

• Peplink MAX BR1 Mini 5G with Wi-Fi
• (Qty 2) Automated cooling fans
• 5-Port Industrial PoE Switch
• Template for easy placement and mounting
• Pre-Mounted, Pre-Wired, Pre-Configured, Tested

*internet signal strength can vary depending on location, terrain, and/or vehicle construction. For the best internet connectivity experience, consider installing an external antenna and a dedicated access point inside the vehicle. Please contact us for more information.

Important Note on Customization

Customization Available

The ROAMiQ × Victron STACK platform is fully modular. Any component shown can be swapped, upgraded, or reconfigured to meet the specific electrical, space, or usage requirements of your vehicle. If your build requires a different charging strategy, solar capacity, or expansion capability, our team can configure a system tailored to your needs.

Ideal For

• Professional upfitters and OEM builders

• High-end campervans and RVs

• Overland and expedition vehicles

• Fleet and repeatable production builds

• Customers who want maximum reliability with minimal install time
