ROAMiQ Dual-Channel Relay Module
Add ROAMiQ control to two independent circuits from one compact module.
The ROAMiQ Dual-Channel Relay Module is designed to bring simple on/off control into the ROAMiQ ecosystem for two separate circuits. It gives installers a clean way to control compatible accessories, lighting zones, pumps, fans, auxiliary devices, or other low-voltage loads directly from ROAMiQ.
Once installed, each relay channel can be controlled independently from the ROAMiQ screen, supported connected interfaces, and compatible ROAMiQ automations. This makes it easy to centralize control of multiple vehicle accessories without adding unnecessary standalone switches, apps, or control panels.
- Current Monitoring
- Configurable Current Trip Limits
- Two NO C NC Relays for Versatility
- Each Rated 10A Max
Key Features
Two Independent Relay Channels
Control two separate circuits from a single module, with each channel operating independently inside the ROAMiQ system.
Plug-and-Play with ROAMiQ
Designed to work directly with ROAMiQ for clean system integration and straightforward setup.
Centralized Accessory Control
Control compatible devices from the ROAMiQ screen or supported connected interface, reducing switch clutter and disconnected control points throughout the vehicle.
Automation Ready
Use connected circuits as part of ROAMiQ scenes, alerts, and automations. Turn devices on or off based on temperature, vehicle mode, power conditions, time of day, user input, or custom logic.
Clean Installation
Built for mobile electrical systems where space, clean wiring, and reliable accessory control matter.
Flexible Applications
Ideal for a wide range of low-voltage vehicle accessories and auxiliary circuits.
Common Applications
-
Lighting zones
-
Water pumps
-
Vent fans
-
Accessory power circuits
-
Auxiliary relays
-
Exterior lights
-
Garage or cargo area devices
-
Small control loads
-
System enable/disable circuits
-
Custom vehicle automation outputs
Why It Matters
Many vehicle accessories still operate as isolated circuits controlled by individual switches. The ROAMiQ Dual-Channel Relay Module brings those circuits into the same intelligent control environment as the rest of your build.
That means cleaner control, smarter automation, fewer disconnected switches, and a more unified vehicle experience.
Compatibility
Designed for use with ROAMiQ systems and compatible low-voltage circuits.
Compatibility depends on the connected device, voltage, current draw, wiring configuration, switching requirements, and installation design. Always verify that each connected load is within the relay module’s rated capacity before installation.
Important Installation Notes
Professional installation is recommended. Proper wire sizing, fuse protection, load calculation, relay configuration, polarity, grounding, and system testing must be completed before use.
The installer is responsible for confirming that all connected devices are compatible with the ROAMiQ Dual-Channel Relay Module and that each circuit operates safely and correctly after installation.

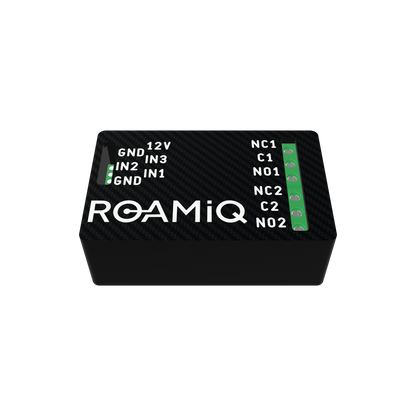

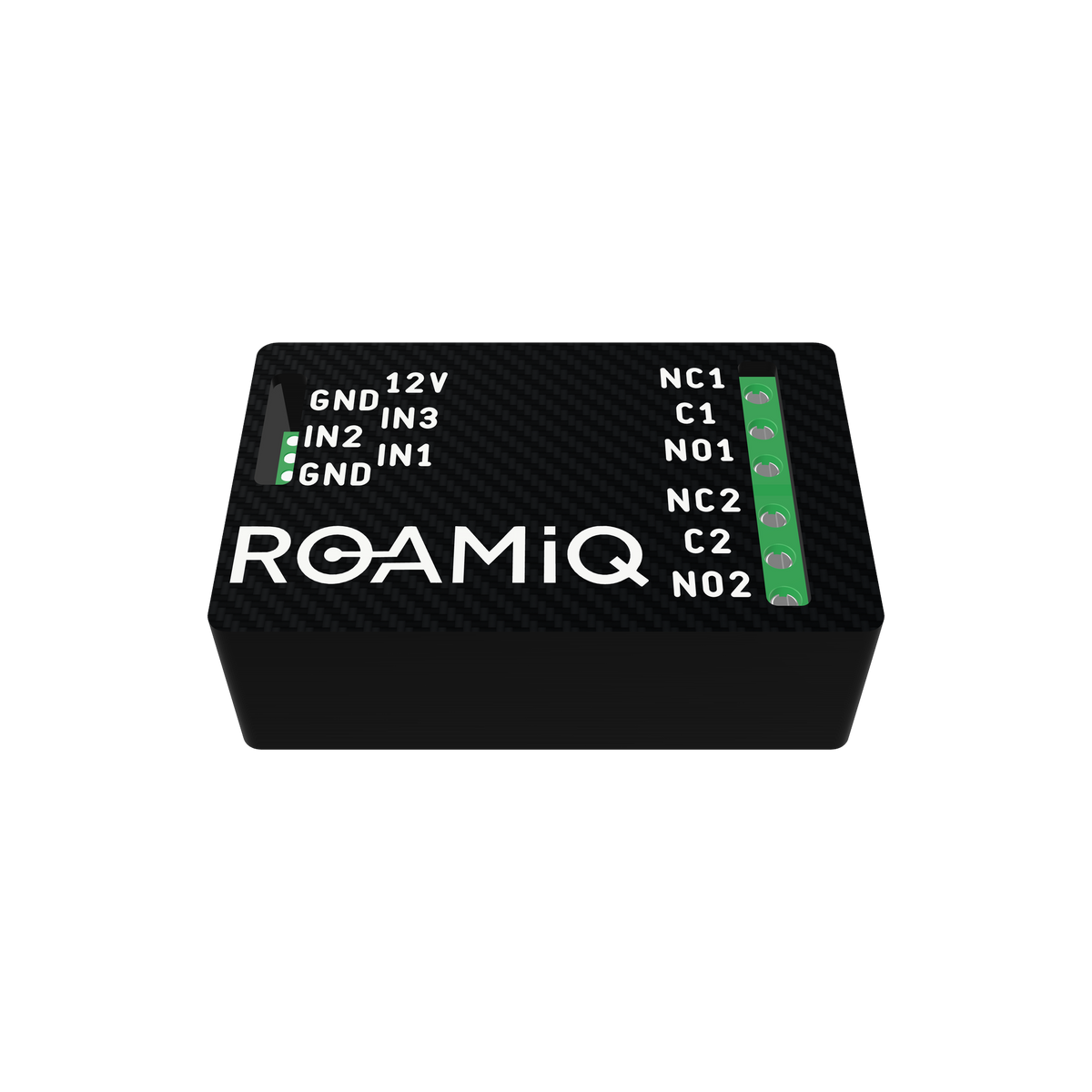

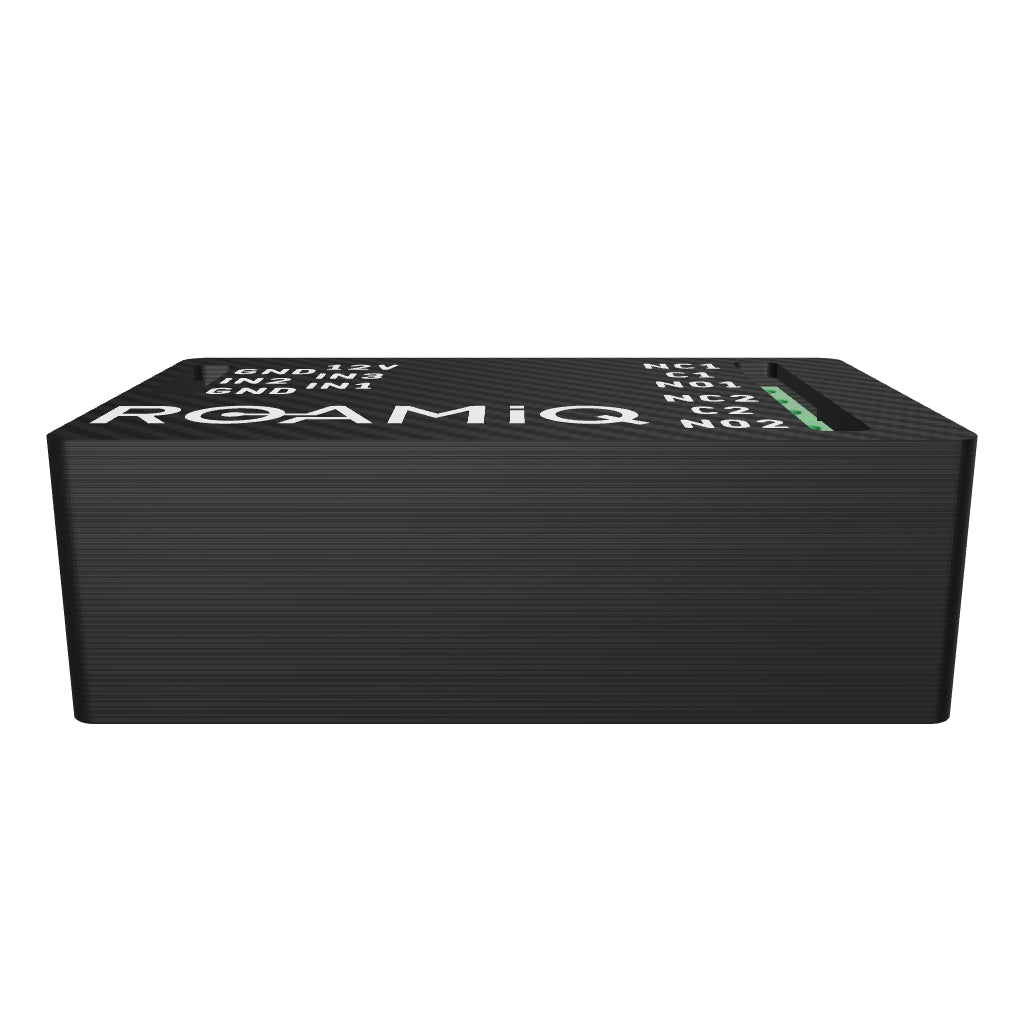

Case size: 90.4 × 56.4 × 29.4 mm (3.56 × 2.22 × 1.16 in), approx.
ROAMiQ · Motor Control Module · RQ-MCM
Dual Channel Relay
Two relays with NO, C and NC contacts, each rated 10A max, controlled from ROAMiQ or a wall switch on the ground-triggered inputs.
Happijac bed lift in three steps
The relays stand in for the wall switch’s UP and DOWN contacts. Terminal names match the case labels.
Moving highlights show which wires belong to each step. Wire colors are illustrative.
Power the relay board
Try the wall switch
Both relays at rest: C is connected to NC, the bed is still.
Demo only. Nothing is connected.Never apply 12V to IN1, IN2 or IN3. These inputs are triggered by connecting them to ground.
Use only NO and C for the Happijac wires. NC is closed at rest, so wiring the control box to NC moves the bed when the relay powers up.
Keep the wall switch off the Happijac wires. The control box’s voltage can reach the ROAMiQ inputs and damage the board.
Disconnect power before wiring. Pull the fuse for the bed lift and for the relay’s feed.
- 12V IN
- +12V feed that powers the relay board
- GND
- Ground (two terminals)
- IN1 · IN2 · IN3
- Ground-triggered switch inputs
- NO · C · NC
- Relay 1 and Relay 2 contacts, separate from the board’s power
- 2 relays
- NO, C and NC contacts on each
- 10A max
- Rating for each relay channel
- 12V DC
- Fused feed to 12V IN
- 3 inputs
- Ground-triggered IN1 to IN3
- 90.4 × 56.4 × 29.4 mm
- Case size (3.56 × 2.22 × 1.16 in), approx.
