Mile Marker

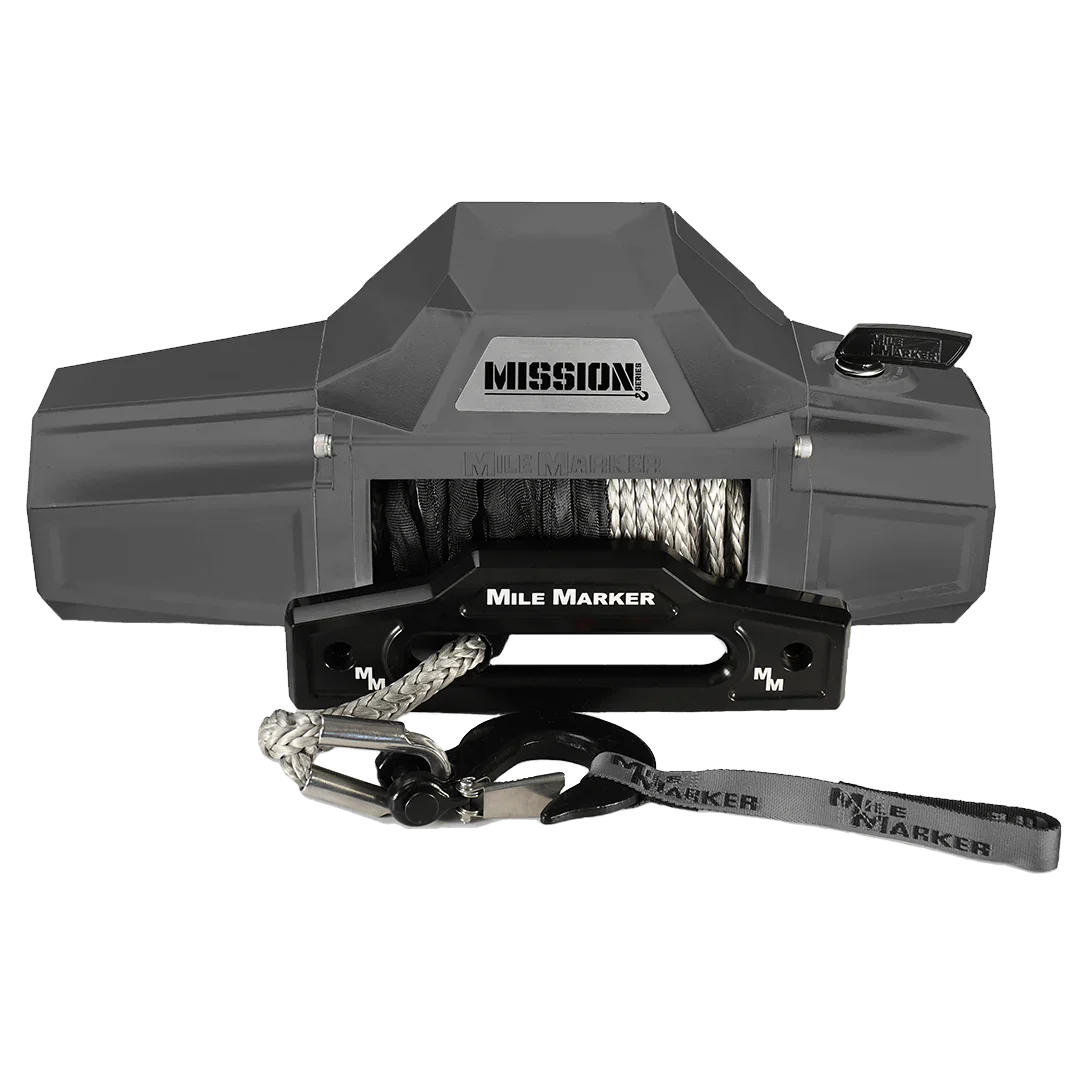

MILE MARKER MISSION 10K - Synthetic Rope

Mission Series Winch

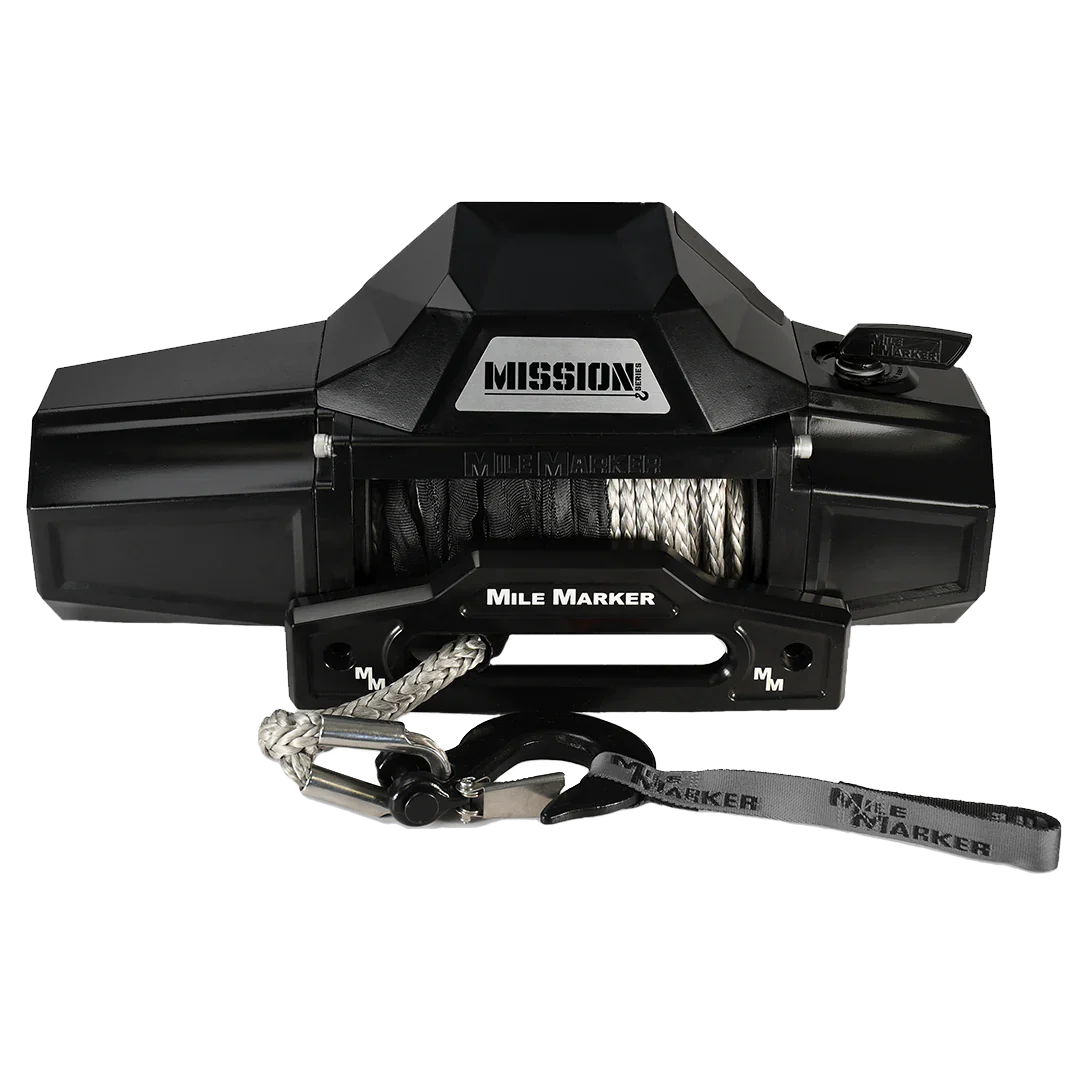

Feel the power of the Mission Winch 10K (Covert Black) from Mile Marker - the US Military's top choice. Get unstuck with ease.

Mile Marker is proud to bring the Military grade 12-volt electric winch – known as the Mission Series Winch - to your truck, SUV, Jeep, or Bronco! The US Military has trusted our 12v electric winch for over a decade and now you can own one - fully customized for the best look! The Mission Series winch is the #1 winch to get you unstuck. With easy-to-operate mechanics & an optional wireless remote, you can't go wrong with a Mission Series winch on your vehicle. Attaching the Mission Series winch to your vehicle has never been easier with our standard 4-bolt pattern.


All Mission Series winch models have the following features:

  • Fully submersible
  • Automatic load holding/low friction brake
  • Rugged heavy-duty solenoid
  • 92' synthetic rope
  • Aluminum hawse fairlead
  • Military-grade drum
  • Durable corrosion-resistant stainless accents
  • Plug & Play remote


Rated Line Pull 10000 lbs (4536 kg)
Gear Train 3 Stage planetary
Motor Series wound, 4.7 hp (3.5 kw),12 Volt, 24 Volt available
Remote Power in, Power out with 12’ cable (3.7 m)
Dimensions (LxWxH) 21.1” X 6.34” X 10.1” (535 mm X 161 mm X 255 mm)
Synthetic Rope 3/8” X 92’ (9.53 mm X 28 m) (18,078 lb. breaking strength)
Net Weight Synthetic Rope 57.8 lbs (26.2 kg)
Drum Size Diameter X length 2.64” X 8.35” (67 mm X 212mm), hardened
Bolt Pattern 4 bolt pattern, 10” x 4.5” (254 mm X 114.3 mm)
