KC HiLiTES

91040

KC HiLiTES Cyclone V2 LED 5W Flood Beam Clear 6-Rock Light System

Cyclone V2 LED 6-Light Universal Rock Light Kits are an all-in-one underbody lighting solution for your off-road vehicle. Every kit features six powerful 5W Cyclone LEDs and a centralized fuse block for easy wiring. These Cyclone kits are available in various colors to suit your lighting need.

FEATURES
-Various Vehicle Applications
-Clear Colored Lens
-Easy Plug-N-Play Installation
-Includes various brackets for different fitment needs

LIGHT PERFORMANCE
-Raw Lumens: 600 lm

SPECIFICATIONS(PER LIGHT)
-Wattage: 5W
-LED Source: 15 x Samsung SMD 3035 LED
-Amp Draw: 0.42A
-Voltage: 9-16V
-IP Rating: IP68
-Dimensions: D - 0.53" x W - 2.20"

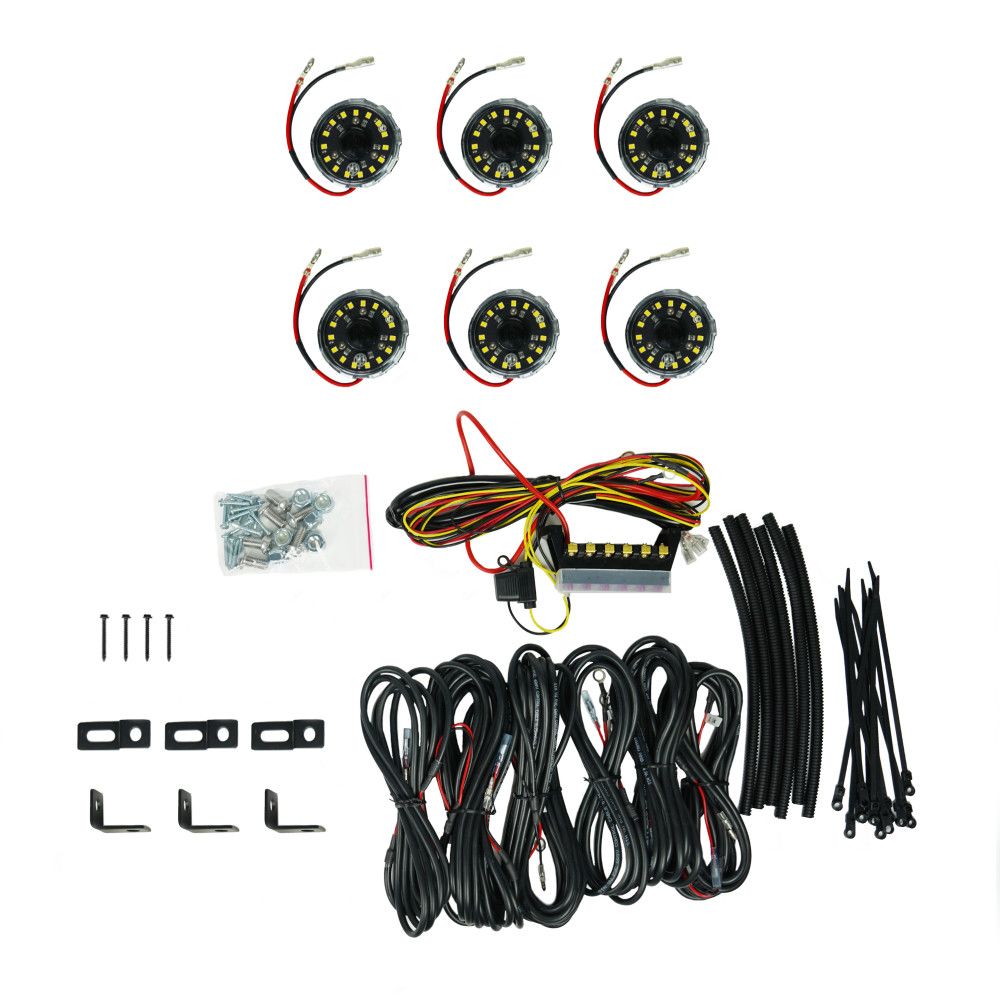

PARTS INCLUDED
-Complete Cyclone V2 LED 6-light rock light kit with Cyclone Lights, Premium fuse block with ground post and switch, 6 Deluxe Wiring Harnesses (2 x 16ft, 2 x 11ft, 2 x 8ft), Universal mounts with installation hardware

PERFORMANCE OUTPUT AND CLARITY
Cyclone V2 LEDs are a multi-functional and compact auxiliary LED lighting solution. Originally designed for Off-Road Racers as an interior dome light, the Cyclone LED light has evolved into an all-purpose light for rock crawling. With their compact 2.2" diameter, flat 0.53" height, and bright flood pattern they are perfect for undercarriage lighting for off-roading at night.

FLOOD BEAM PATTERN
The Cyclone V2 LED comes in a flood beam pattern to provide a large pattern of light by utilizing an infinite vertical and horizontal beam pattern. This delivers ample illumination over short distances.

DESIGNED FOR DURABILITY
Off-road race tested, the Cyclone V2 LED was designed to handle the harshest environments. Featuring an IP68 rated housing, the Cyclone V2 LED kit is resistant to moisture and dust.

SKU 91040
Weight 5.500000
Type Rock Light
Collection Cyclone LED
Material Aluminum Alloy
Location Bumper, Interior Dome, Roll Cage, Roll Bar, Truck Bed, Wheel Well, Undercarriage
UPC 084709910402
Amp Draw 0.42 a
Beam Pattern Flood What's this?
Color Black
DOT Compliant No
In The Box 6 x KC Cyclone 2 LED (Clear) light, Hi-Capacity Busbar, Wiring Harness with weatherproof connectors, illuminated led light switch, Universal mounting brackets, hardware
IP rating IP68
Light Color White
Lens Color Clear
Light Temperature 5000K
Lumens 600 lm
Prop 65 No
Size 2.2"
SAE/ECE No
Voltage 9V-16V
