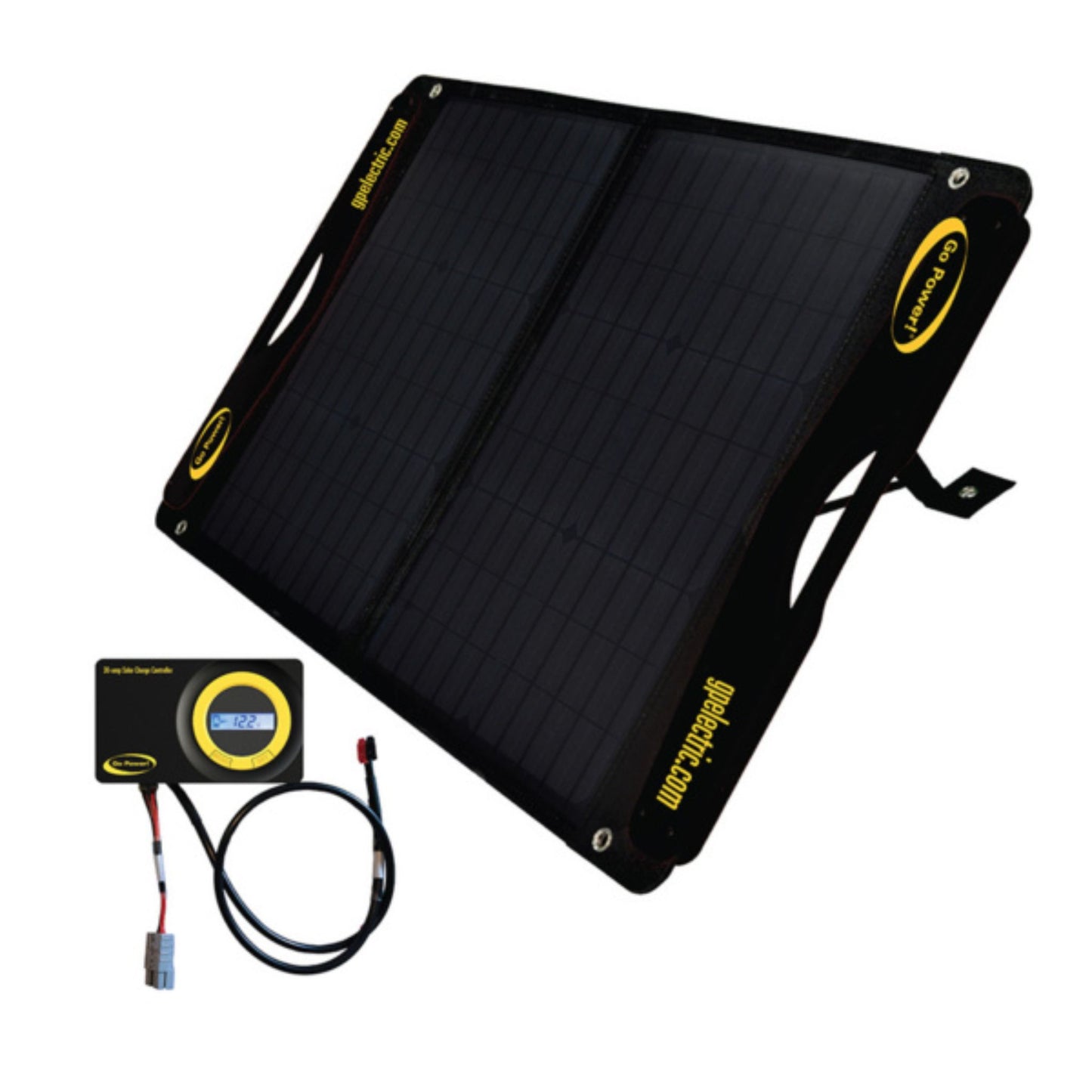

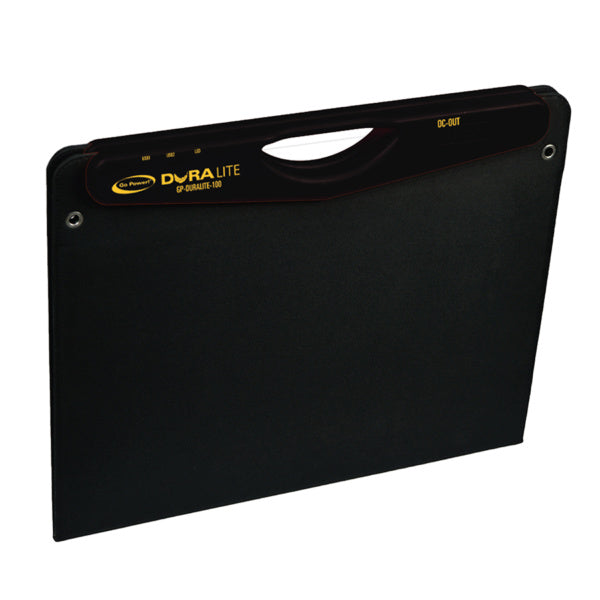

Go Power! DuraLite 100-watt Solar Kit

DuraLite 100-watt Solar Kit

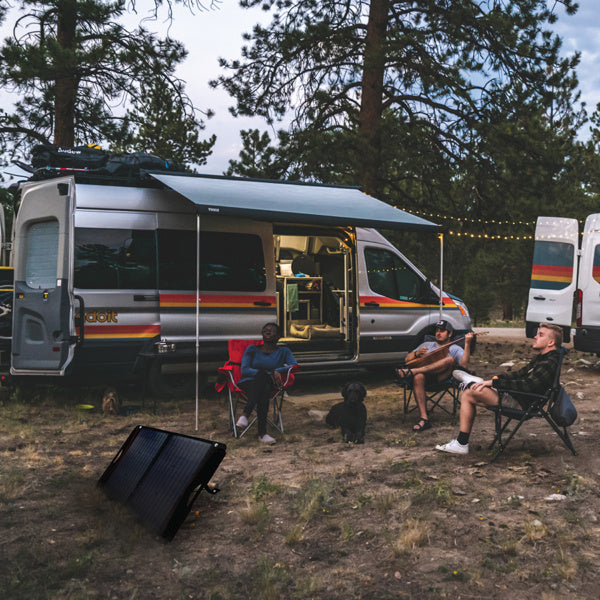

Lightweight and easy to store. 100-watts of truly portable all-in-one solar charging. Weighing only 9lbs, this kit is ideal for tent trailers, camper vans, and RV's with minimal storage. The kit comes with everything you’ll need to charge your batteries, including a 30-amp charge controller, cables, and an array of connection options.

Applications



Product Overview

The DuraLite 100 watt Solar Kit is lightweight and easy to use, and is perfect for powering weekend getaways. DuraLite solar kits feature integrated kickstands, as well as rigid plastic handles with built-in USB chargers, and magnetic closures. Expandable up to 300-watts with the GP-DURALITE-100-E, string up to 3 panels together to supercharge your portable charging power!

  • Sets up in minutes - simply unfold and connect to battery
  • Built-in USB charging in the rugged plastic handles
  • Magnetic closures keeps panels protected in transit
  • Place in the sun, park in the shade, includes 12‘ of cable
  • Built-in 30-amp PWM lithium capable Solar Controller prevents batteries from overcharging

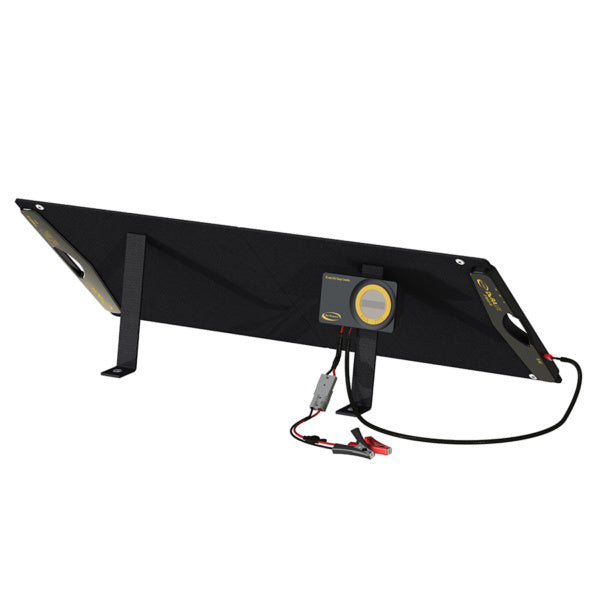

  • Easy-deploy folding legs
  • Maintenance free and no installation or mounting required
  • Folds into carrying case for easy transport
  • 2 year solar panel warranty

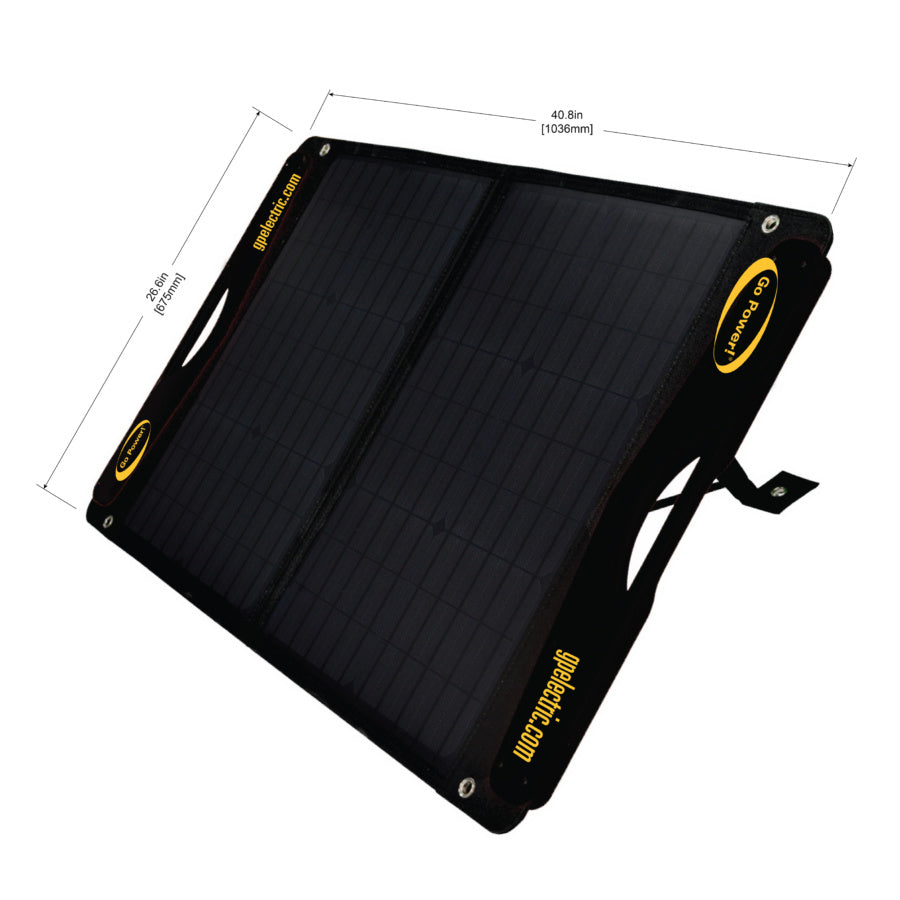

Kit Size (Closed)21.1" x 23.8" x 1.8"
Solar Panel Size (Open)-  21.1" x 47.6" x 1"
Kit Weight: 10lbs including accessories

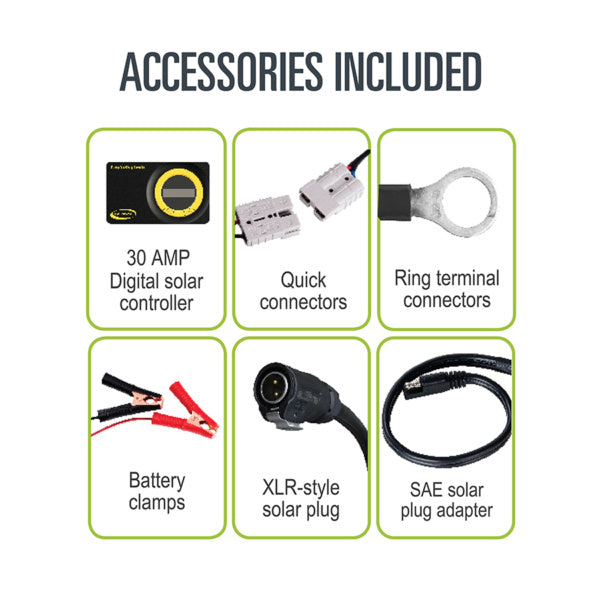

Included with this kit:

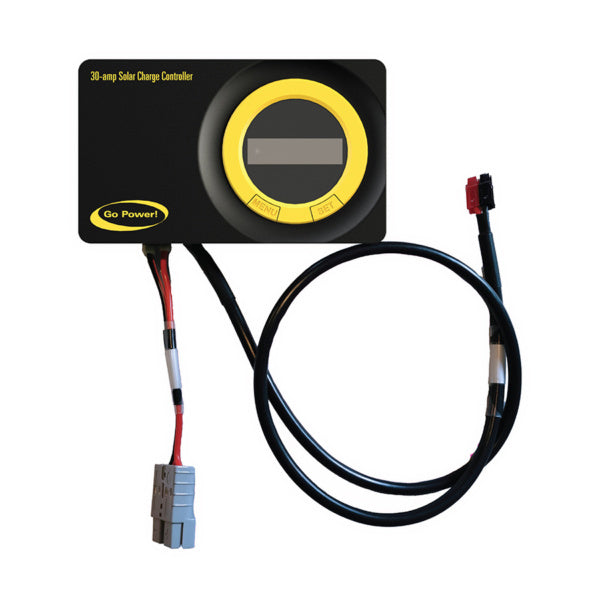

  • 30 amp PWM solar charge controller
  • Battery clamps
  • Quick connectors
  • Ring terminal connectors
  • SAE solar plug adapter
  • XLR-style solar plug adapter

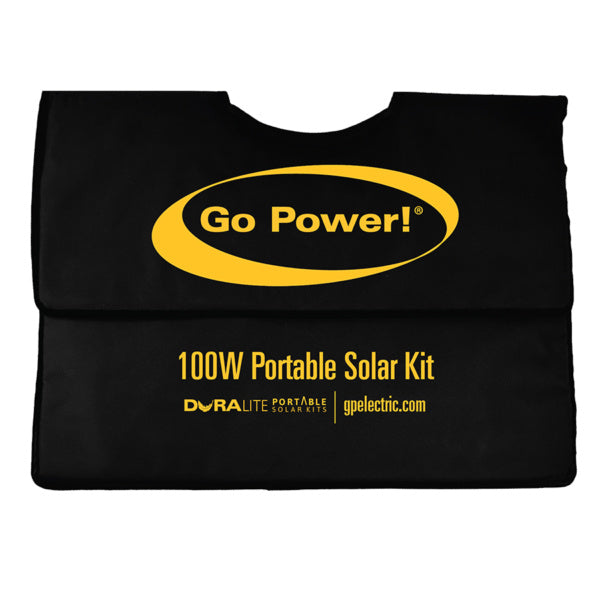

  • Canvas storage bag

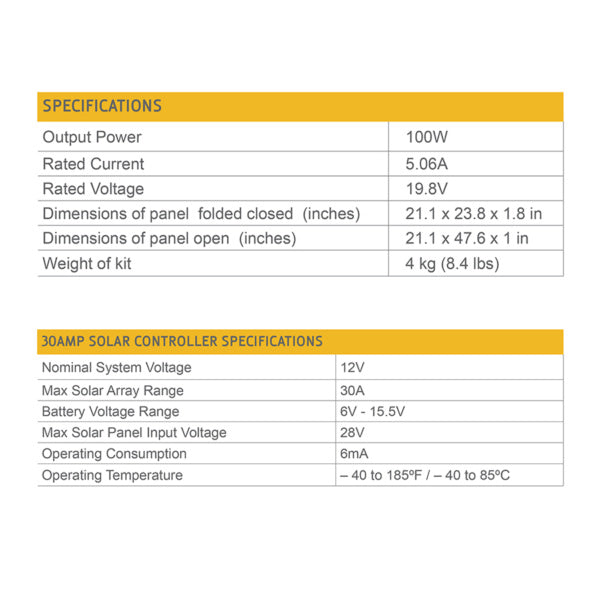

SPECS

Solar Panel Specifications*

Output Power

100W

Rated Current

5.06A

Rated Voltage

19.8V

Dimensions of panel folded (closed)

21.1 x 23.8 x 1.8 in

Dimensions of panel open (open)

21.1 x 47.6 x 1 in

Weight of kit

9.0lbs (4.1kg)

*Specifications subject to change without notice.

Solar Controller Specifications*

Nominal System Voltage

12V

Max Solar Array Range

30A

Battery Voltage Range

6V – 15.5V

Max Solar Panel Input Voltage

28V

Operating Consumption

6mA

Operating Temperature

– 40 to 185ºF / – 40 to 85ºC

*Specifications subject to change without notice.
