Go Power 60 Amp MPPT Solar Controller

Name: Go Power 60 Amp MPPT Solar Controller
Brand: Go Power
SKU: 82804
Price: 599.99 USD
Availability: InStock

$599.99

Sale Sold out

Save up to 50% with PRO price. Sign In for free PRO Account.

Shipping calculated at checkout.

Quantity

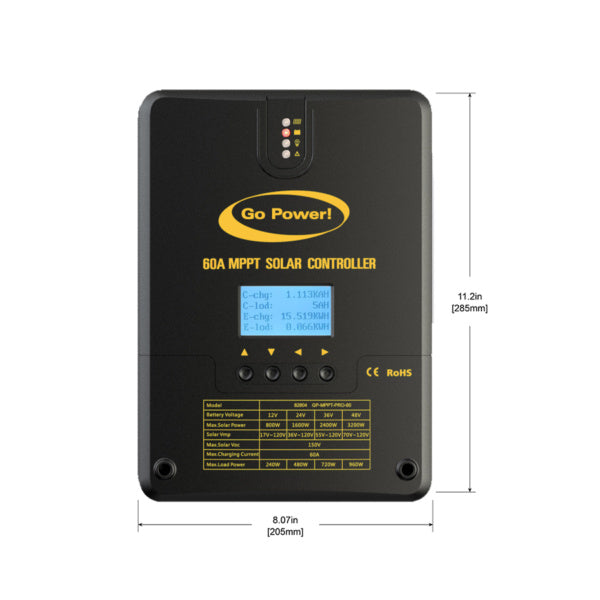

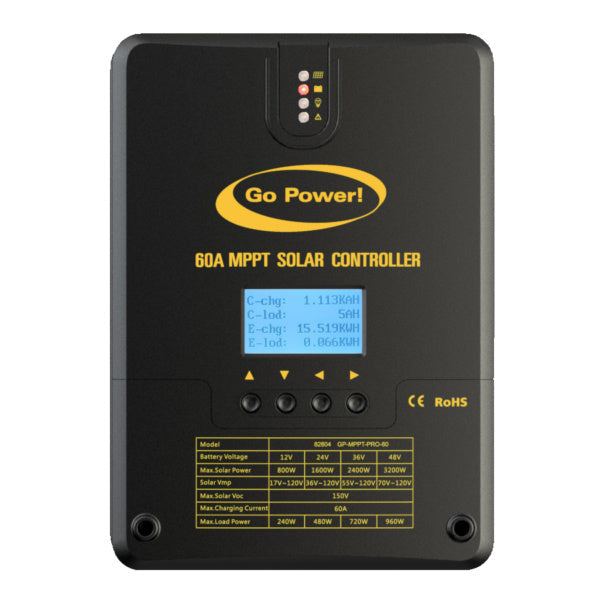

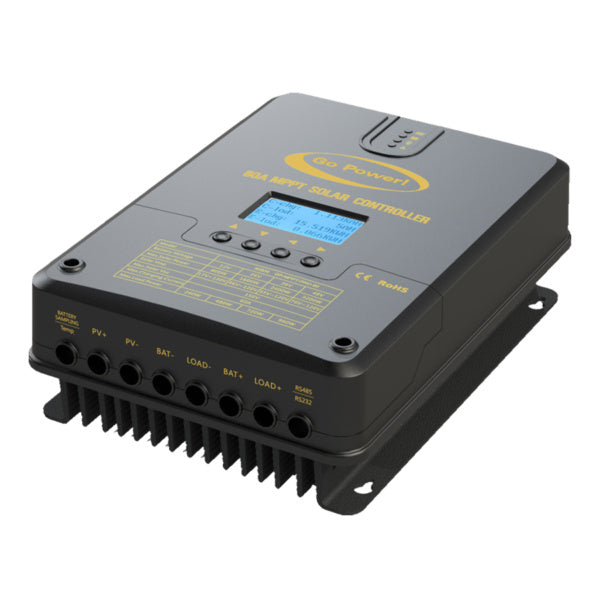

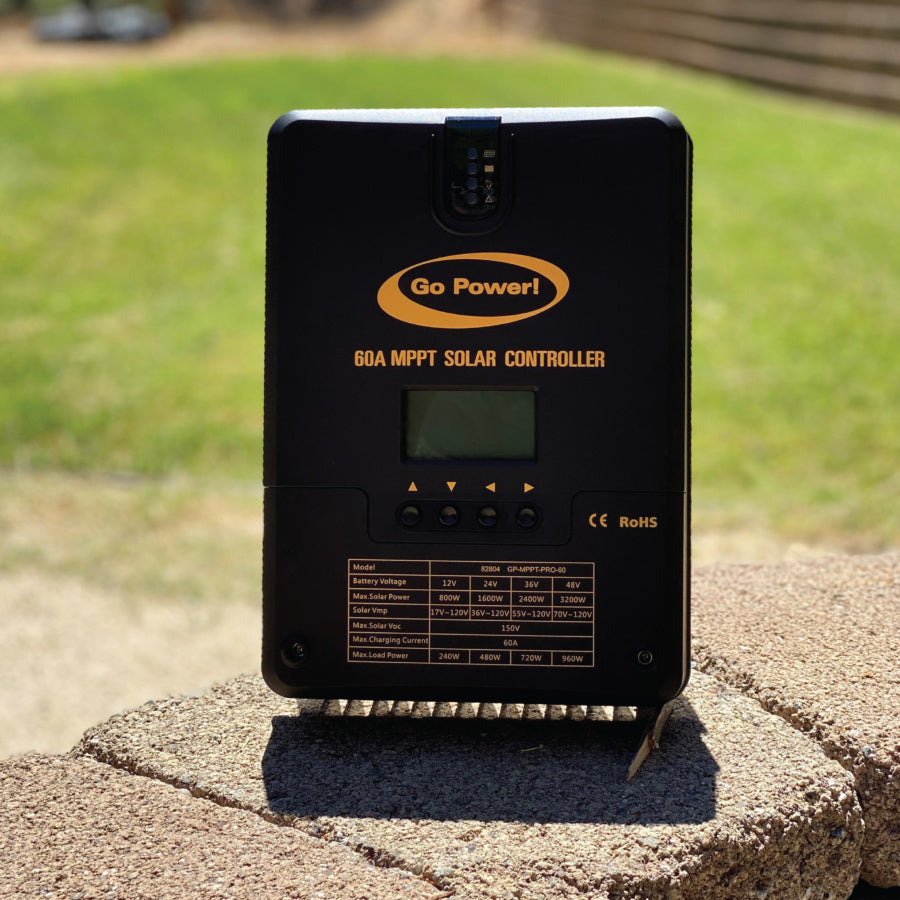

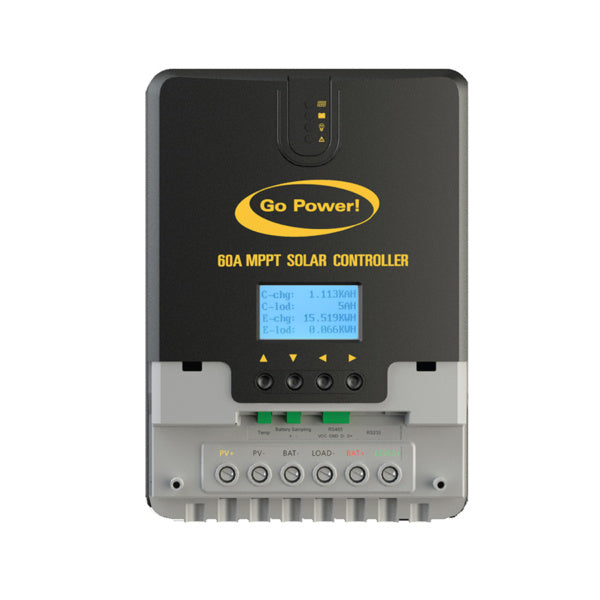

Go Power!'s largest solar controller. This 60 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.

Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 4 battery charging profiles.

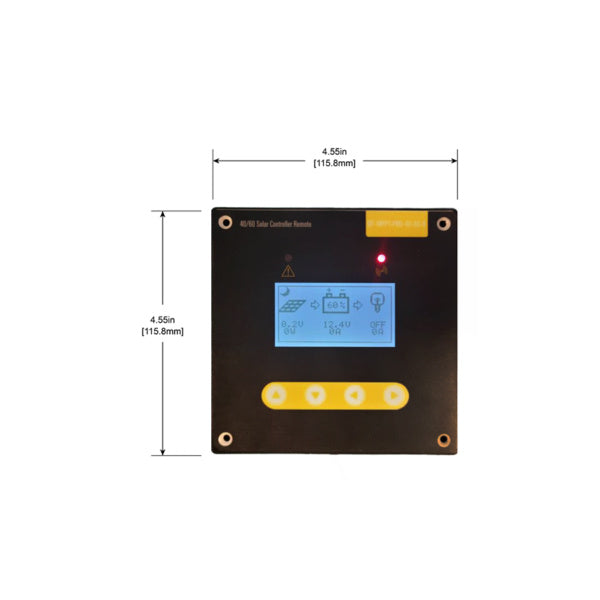

Surface-mounted remote display; shows the charge current to the battery, battery voltage and battery-state-of-charge (SOC) - (GP-MPPT-PRO-R)
Bluetooth® Wireless Technology Dongle; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view (GP-MPPT-PRO-BT-1)

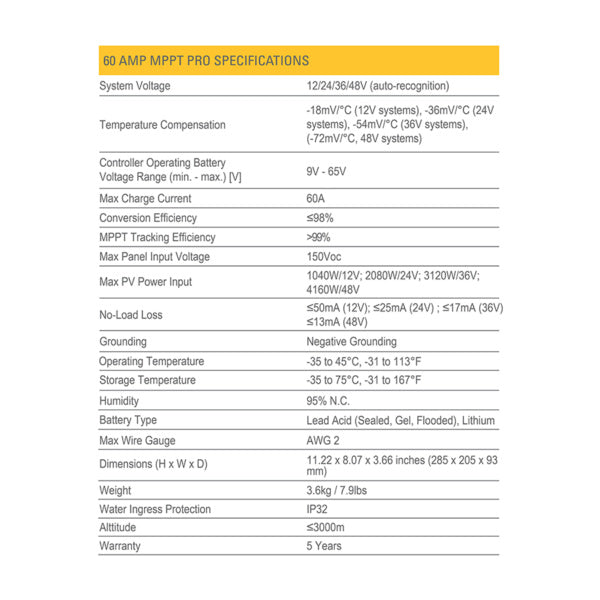

Specs

System Voltage	12/24/36/48V (auto-recognition)
Temperature Compensation	-18mV/°C (12V systems), -36mV/°C (24V systems), -54mV/°C (36V systems), -72mV/°C (48V systems)
Controller Operating Battery Voltage Range (min. – max.) [V]	9V – 65V
Max Charge Current	60A
Float Charge (Default= SEALED)	13.8/27.6V (25°C)
Main Charge (Default= SEALED)	14.1/28.2V (25°C), 0.5h Daily
Boost Charge (Default- SEALED)	14.4/28.8V (25°C), 2h, Activation: Battery Voltage <12.3/24.6V
Equalization Charge (Flooded)	14.8/29.8 (25°C),2h, Activation: Battery Voltage <12.1/24.2V (at least every 30 days)
Over-Voltage Protection	15.5/31.0V
Max Panel Input Voltage	150Voc
Max PV Power Input	1040W/12V; 2080W/24V; 3120W/36V; 4160W/48V
Min PV Voltage Input	16V (12V Systems) / 33V (24V Systems)
Idle Self-Consumption	0.7W (60mA typical at 12.0V, 30mA typical at 24.0V)
Grounding	Negative Grounding
Ambient Temperature	-40° to +60° C
Battery Type	Lead Acid (Sealed, Gel, Flooded), Lithium
Max Wire Cross Section	AWG 2
Dimensions	11.22 x 8.07 x 3.66 inches (285 x 205 x 93 mm)
Weight	3.6kg / 7.9lbs
Type of Protection	IP32
Warranty	5 Years
