GP-ADV-LIFEPO4-300
Sold Out

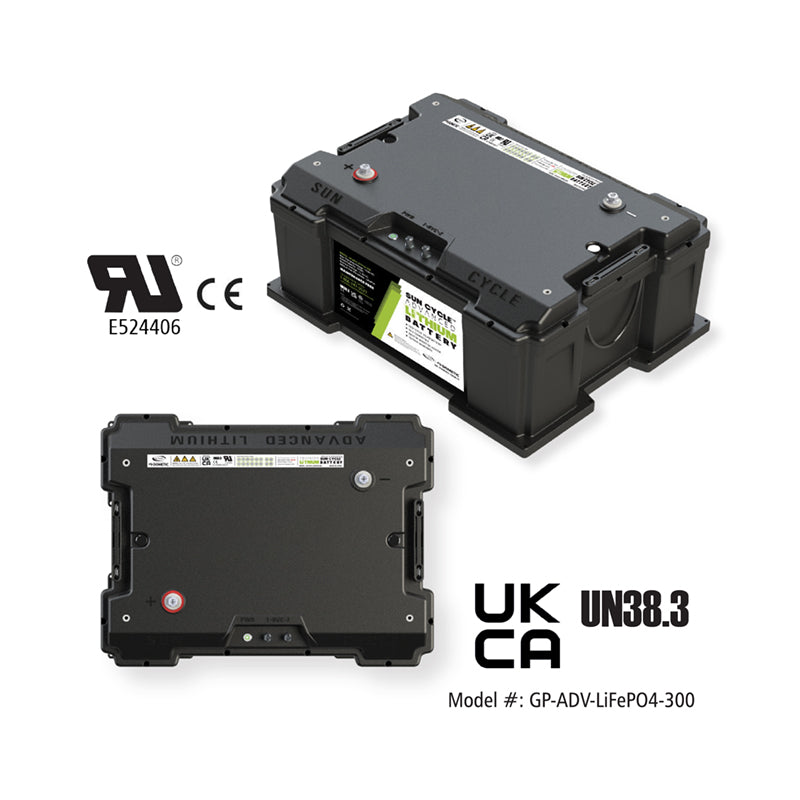

The bigger, better battery. 300Ah LiFePO4 Advanced Lithium Battery from Go Power! is engineered for high performance and connectivity. Part of the new PowerTrak™ line of connected products, this battery is the ideal cornerstone for any RV mobile power system. UL-rated and built for longevity and life on the road. 10-year prorated warranty. Can be wired in series or parallel. UL listed and UKCA certified.
|

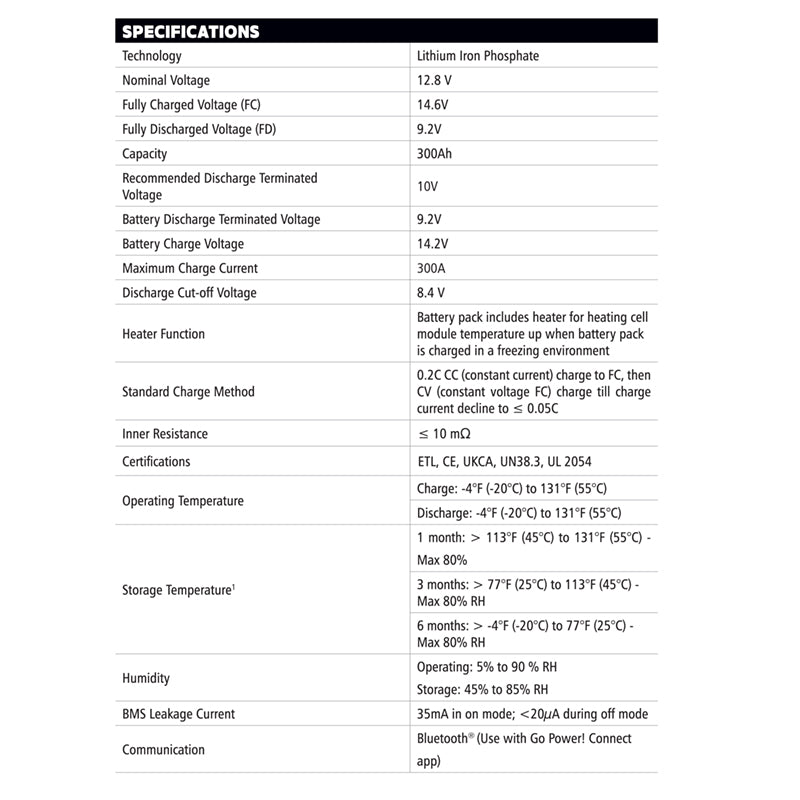

SPECIFICATIONS |
|
|
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
12.8 V |
|
Fully Charged Voltage (FC) |
14.6V |
|
Fully Discharged Voltage (FD) |
9.2V |
|
Capacity |
300Ah |
|
Recommended Discharge Current |
300A |
|
Battery Discharge Terminated Voltage |
9.2V |
|
Battery Charge Voltage |
14.2V |
|
Maximum Charge Current |
300A |
|
Discharge Cut-off Voltage |
8.4 V |
|
Recommended Charge Current |
20A – Battery pack at 0°C~5°C & 45°C ~ 55°C |
|
50A – Battery pack at 5°C ~ 15°C |
|
|
100A – Battery pack at 15°C ~ 45°C |
|
|
Standard Charge Method |
0.2C CC (constant current) charge to FC, then CV (constant voltage FC) charge till charge current decline to ≤ 0.05C |
|
Inner Resistance |
≤ 10 mΩ |
|
Certifications |
ETL, CE, UKCA, UN38.3, UL 2054 |
|
Operating Temperature |
Charge: -4°F (-20°C) to 131°F (55°C) |
|
Discharge: -4°F (-20°C) to 131°F (55°C) |
|
|
Storage Temperature1 |
1 month: > 113°F (45°C) to 131°F (55°C) – |
|
3 months: > 77°F (25°C) to 113°F (45°C) – |
|
|
6 months: > -4°F (-20°C) to 77°F (25°C) – |
|
|
Humidity |
Operating: 5% to 90 % RH Storage: 45% to 85% RH |
|
BMS Leakage Current |
35mA in on mode; <20µA during off mode |
1 Rated Capacity tested at 77°F (25 ±5 °C)
2 Maximum storage time before recharging is 6 months
3 Cycle Life tested at 77°F (25°C)

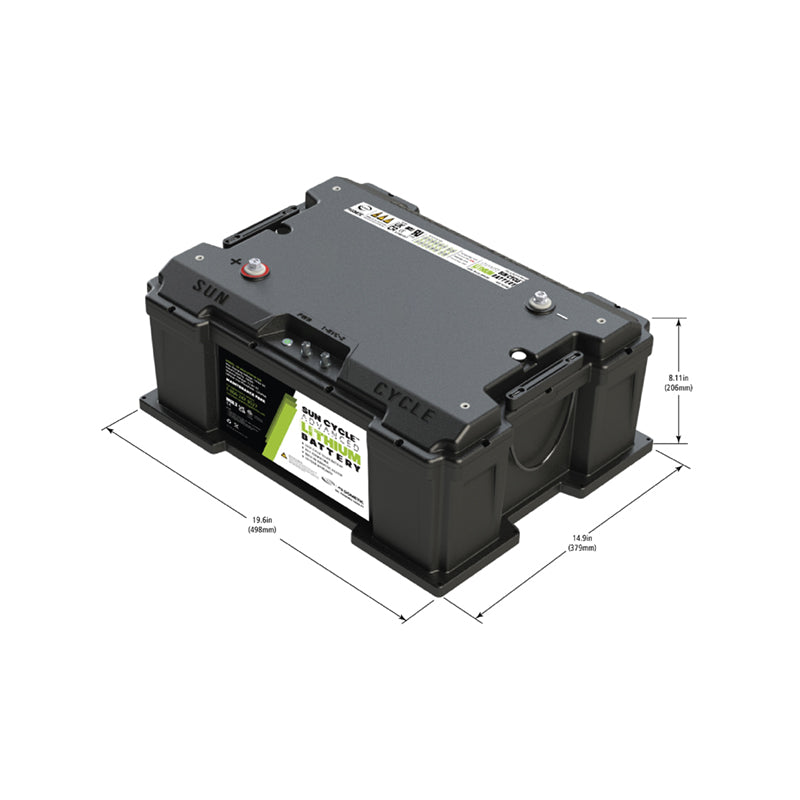

Dimensions |
|
|
Length |
19.6 in / 498 mm |
|
Width |
14.9 in / 379 mm |
|
Height |
8.11 in / 206 mm |
|
Weight |
77 lbs / 34.9 kg |
|
Terminals |
P+/P- : M8 |
|
Carrying |
Recessed Handles |
Materials |
|
|
Case and Cover |
ABS |
Do lithium batteries need to be taken out for the winter or can they be left in the trailer/RV? (Will they freeze?)
It is recommended to take the lithium batteries out like any deep cycle battery. Lithium batteries do not like cold temperatures. They will not take a charge below 0 degrees and like any battery they can freeze at one point.
Do lithium batteries go dead from sitting while stored?
Lithium batteries will discharge over time like any battery but they do it at a much slower rate. We recommend giving them a quick charge every couple of months and to keep them in peak condition.
How do you charge a lithium battery in cold or warm weather?
It is better to charge lithium batteries in warmer temperatures. Lithium batteries will not accept charge at freezing or below. The charging temperature range on our batteries is 32°F (0°C) - 131°F (55°C).
