Go Power 190W Rigid Eclipse Solar Panel + 30A MPPT Controller
Expandable to 3000-watts of solar with stackable MPPT controllers
Rigid black-framed 190 watt, 9.45 amp solar module

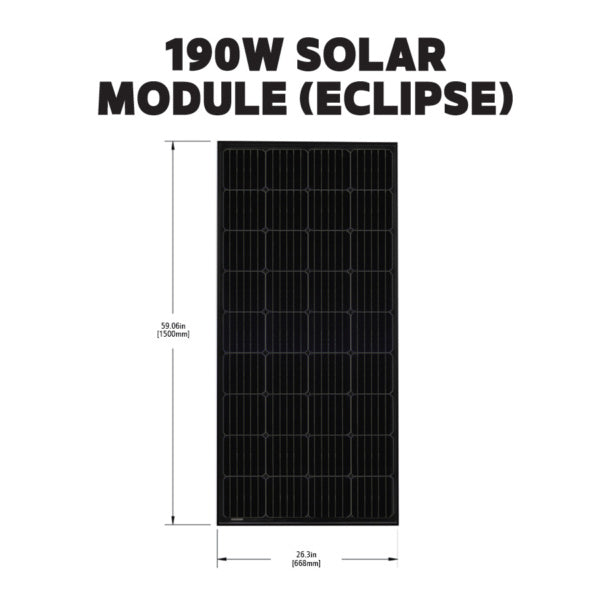

Panel dimensions: 59.1 x 26.3 x 1.57 in
25-year power output panel warranty

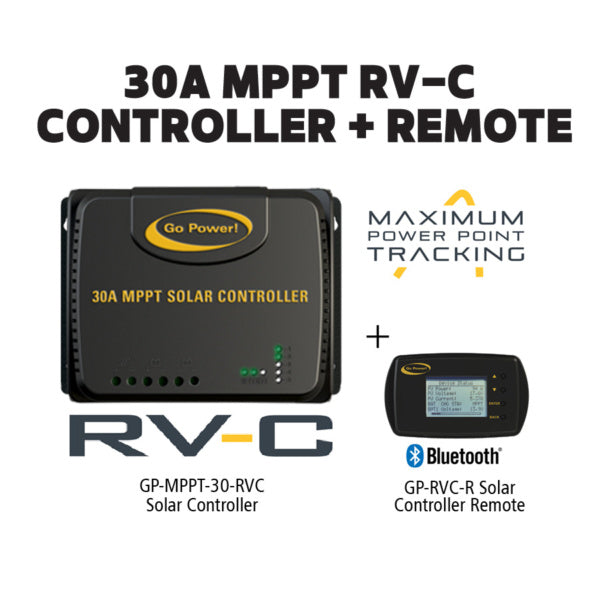

30 amp, stackable MPPT, RV-C compatible solar controller
Bluetooth® enabled remote
Includes 25’ solar output cables and mounting hardware

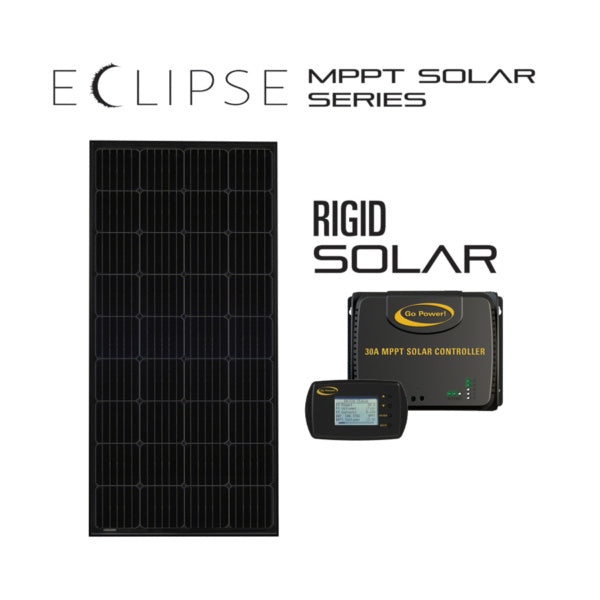

Charge batteries faster and maximize your solar charging performance with the new 190-watt Eclipse MPPT rigid solar kit.
Supercharge your solar array to 98% conversion efficiency with MPPT charging. Ideal for series configurations. Bluetooth® enabled remote* allows you to view and change essential battery stats from your handheld device.
Easy to install, and expandable, the Go Power! RIGID Eclipse 190W Solar Kit is the largest single panel 12-volt charging kit on the market. This powerful battery charger is great for maintaining the charge in all types of batteries and is ideal for extended RVing or dry-camping.
*Best paired with 200Ah of AGM Battery Power, or 100Ah of Lithium Battery Power.

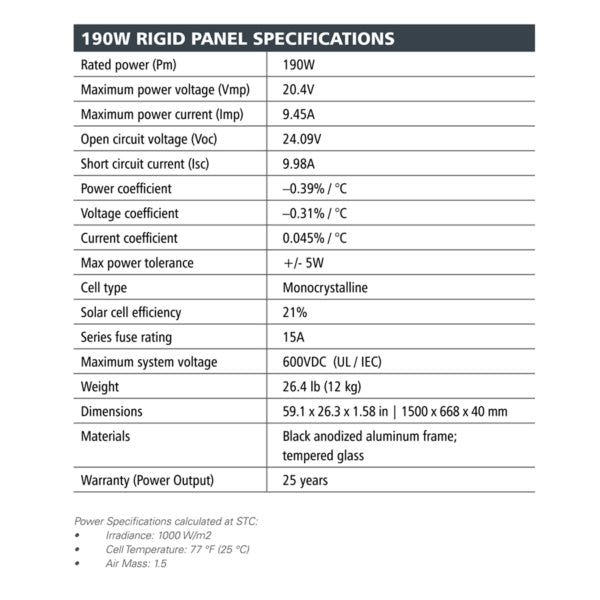

Solar cell type
Rated DC voltage
Solar Branch Connectors

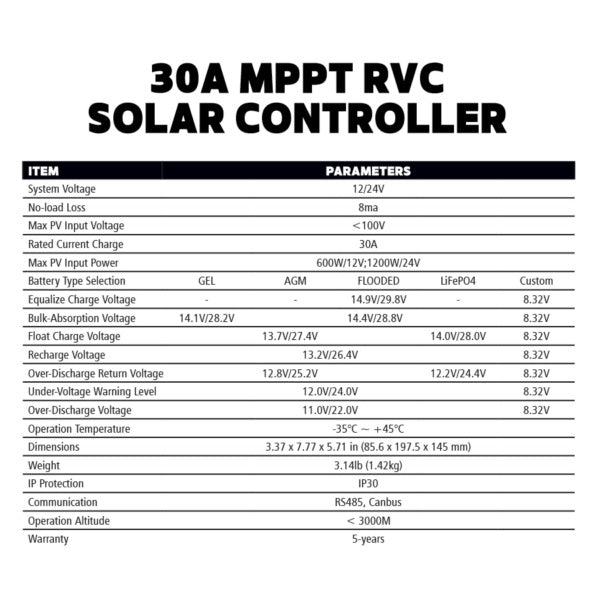

30 A MPPT, multi battery option, 4 stage charging, with optional LCD Bluetooth remote
Black anodized aluminum frame
59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm
26.4 lbs / 12 kg
25 years power output (module) / 5 years (controller)
