Epoch 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

1 6

Epoch 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

Name: Epoch 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Brand: Epoch Batteries
SKU: C48100A-A
Price: 2199.00 USD
Availability: OutOfStock

Epoch 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

$2,199.00

Sale Sold out

Free Shipping | Delivery ETA: 3–5 Days

Shipping calculated at checkout.

Quantity

View full details

LiFePO4 Chemistry
100Ah Capacity
250A EATON Class T Fuse (User Serviceable)
150A Max Continuous Discharge (300A 30s Discharge)
100A Max Continuous Charge (300A 10s Charge)
IP67 Rated, Dust and WATERPROOF
HEATED - Internal heating for below 0C charging

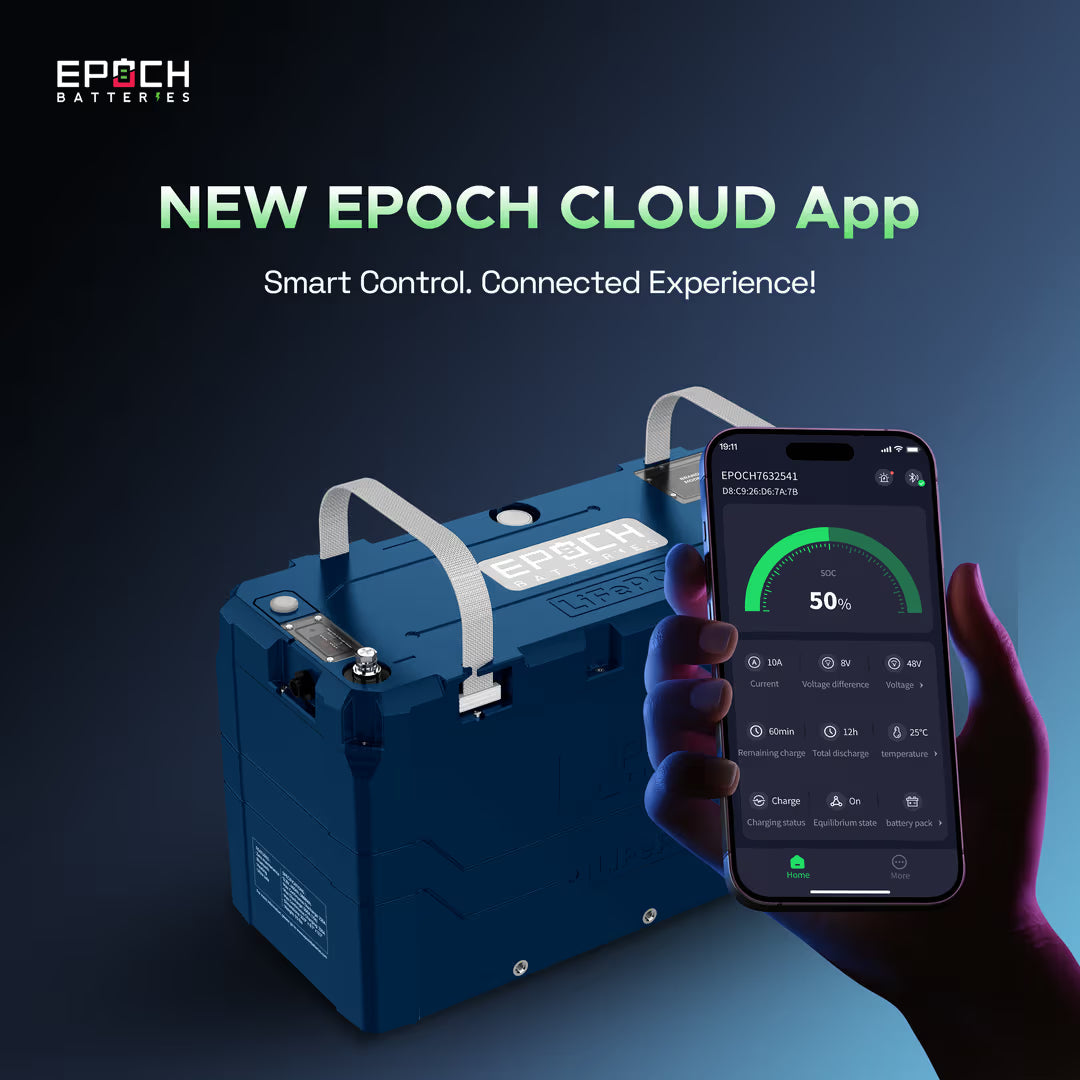

BLUETOOTH - iOS and Android Apps
VICTRON Communications with distributed charge control via DVCC
Parallel up to 16 batteries on 1 system
External Power Button & Battery Gauge INCLUDED
Built-in Smart Battery Management System (BMS)
Over charge and over discharge protection
Over current and short circuit protection
High & low temperature disconnects
UL60691 Certified Internal Fuse
UL1642, U9540A, IEC 62619:2022 Certified Cells
UL1973 Certified Pack
3500+ Cycle life & Maintenance-free
11 Year Manufacturer Warranty

Configuration

Cell Configuration: 16S1P

Chemistry: LiFePO4

Current

Ah Capacity: 100Ah

Max Continuous Discharge Amps: 150A

Max Charge Current Amps: 100A

Max Discharge Peak Current Amps: 300A @ 30sec

Series | Parallel: Max (16) in Parallel, Plug & Play

Voltage

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40.0V - 58.4V

Temperature

Charge Temp Range: -30°C (-22°F) / 55°C (131°F) (with self-heating)

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

Dimensions

Length: 20.75 (inches)

Width: 8.5 (inches)

Height: 12 (inches)

Weight: 97lbs

Recommended Charging Settings

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

Bulk/Absorption: 14.2V – 14.6V

Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah

Float: 13.4V – 13.8V

Equalization: 14.4V/ Disabled

Temperature Compensation: 0/Disabled

Charge Rate: 50% of the battery or battery bank capacity

Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)

Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)

Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
