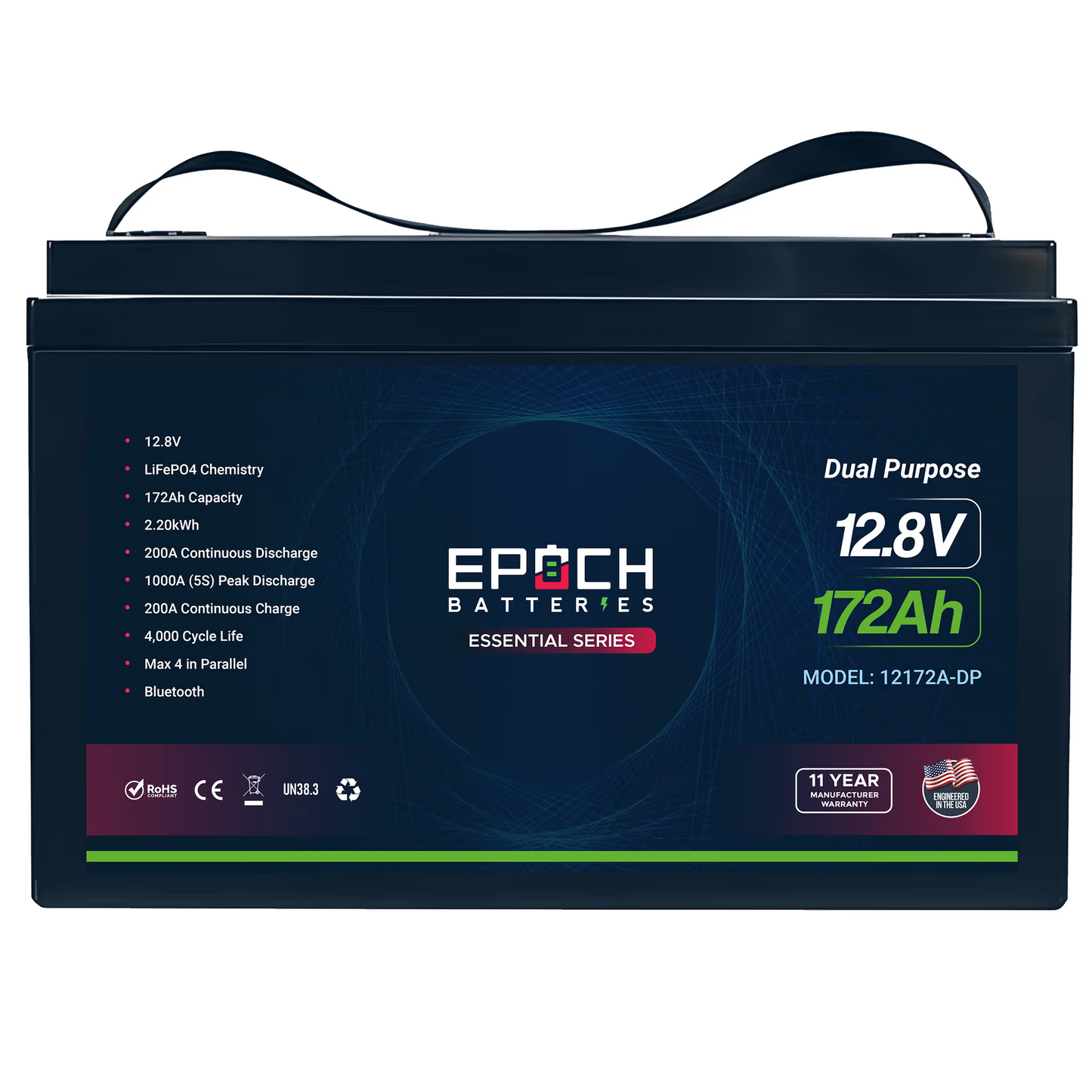

Epoch 12V Essential Series - Bluetooth & Heated LiFePO4 Battery

$349.00

Sale Sold out

Free Shipping | Delivery ETA: 3-5 Days

Shipping calculated at checkout.

Quantity

View full details

LiFePO4 Chemistry - Deep Cycle Battery
HEATED - Internal heating allows for charging in sub-zero conditions
BLUETOOTH - iOS and Android Apps
Built-in Smart Battery Management System (BMS)
Over charge and over discharge protection
Over current and short circuit protection
High & low temperature disconnects
Max (4) in Series up to 48V
Max (4) in Parallel
4,000+ Cycle life & Maintenance-free
11 Year Manufacturer Warranty

SPECS

Configuration

Cell Configuration: 4S1P

Chemistry: LiFePO4

Current

	105Ah	300Ah	460Ah
Ah Capacity	105Ah	300Ah	460Ah
Max Continuous Discharge Amps	105A	200A	200A
Max Charge Current Amps	100A	200A	200A
Max Discharge Peak Current Amps	200A (10 Seconds)	400A (3 Seconds)	400A (10 Seconds)
Series \| Parallel	Max (4) in Series, Max (4) in Parallel - 4S4P	Max (4) in Series, Max (4) in Parallel - 4S4P	Max (4) in Series, Max (4) in Parallel - 4S4P

Voltage

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

	105Ah	300Ah	460Ah
Weight	22.1 (LBS)	58 (LBS)	84 (LBS)
Length	10.25 (inches)	13.75" @ Base, 15.5" @ Handles (inches)	20.55 (inches)
Width	6.75 (inches)	7.75 (inches)	9.45 (inches)
Height	9 (inches)	10.5 (inches)	8.60 (inches)

Recommended Charging Settings

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

IP Rating

IP54

Experience worry-free adventures with our robust IP54 protection. Your battery is effectively shielded against dust and water splashes, giving you the confidence to use it in light rain or dusty conditions. While not fully waterproof, IP54 provides reliable protection for most everyday outdoor scenarios.
