BougeRV 12V 400 Watt CIGS Flexible Solar Kit
BougeRV 12V 400 Watt CIGS Flexible Solar Kit
Save up to 50% with PRO price. Sign In for free PRO Account.
Free Shipping | Delivery ETA: 3-5 Days

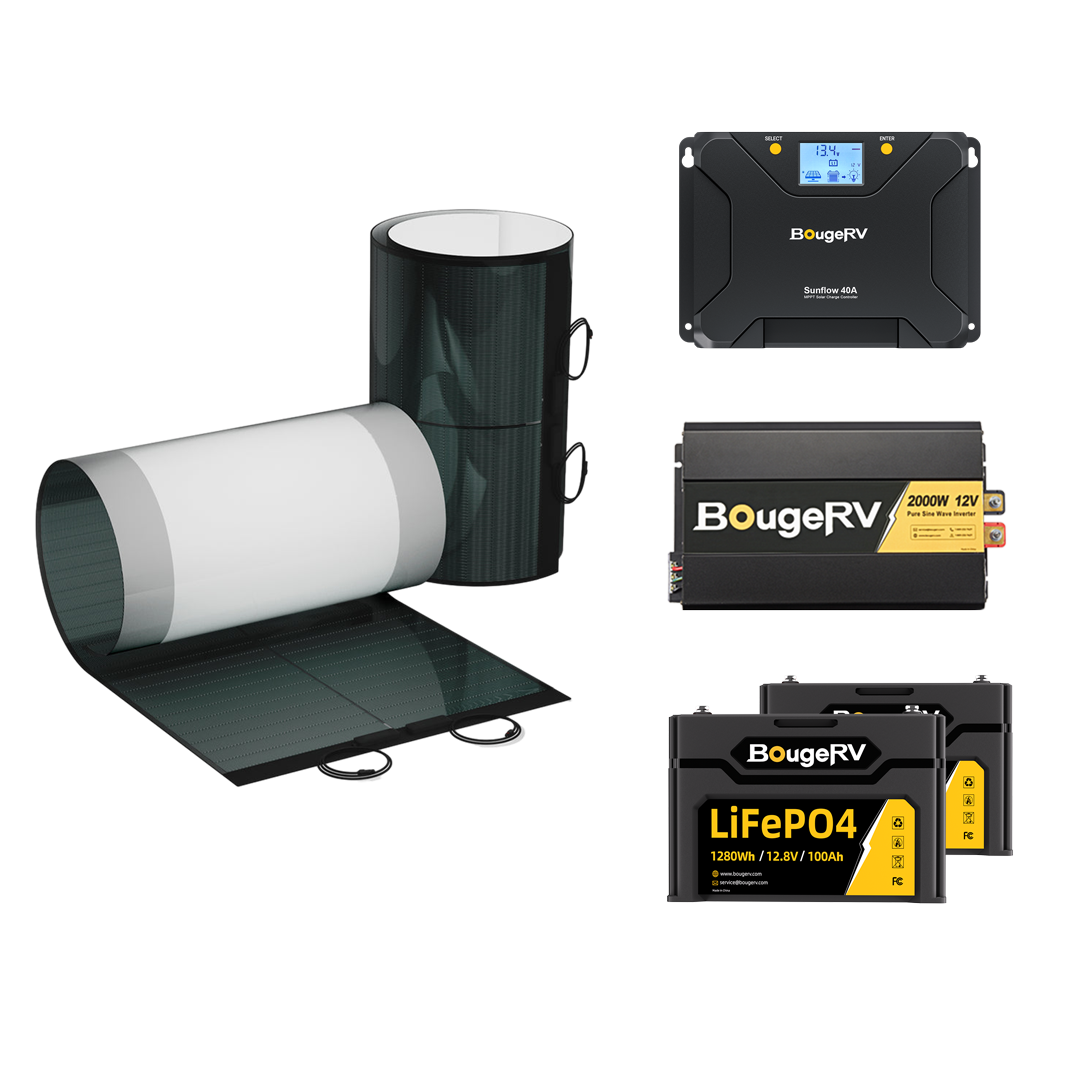

Package Included
-Yuma 200W CIGS Thin-film Flexible Solar Panel with Tape *2
-40A MPPT Solar Charge Controller *1
-2000W 12V Pure Sine Wave Inverter *1
-12V 100Ah LiFePO4 Battery *2
PANELS
200 Watt CIGS Flexible Solar Panel with Adhesive is incredibly flexible and can easily be rolled up for compact storage and transportation. It can even be bent and adjusted to fit curved surfaces without cracking.
200 Watt CIGS Flexible Solar Panel with Adhesive is designed to be lightweight and thin, meaning they don't require any additional mounting or aluminum frames. This not only improves aerodynamics, but also enhances the overall aesthetics of your solar-powered setup.
Our CIGS Solar cells are extremely flexible and amazingly crack resistant, unlike monocrystalline solar cells, which are virtually inflexible and prone to cracking, our panels are built to last.
200 Watt CIGS Flexible Solar Panel with Adhesive is proven to perform better than conventional monocrystalline panels in shaded conditions, producing a remarkable 38% more power over the course of an 8-hour cloudy day.
200 Watt CIGS Flexible Solar Panel with Adhesive are highly durable and can withstand any impacts that may occur during installation and transportation. Even if partially damaged, our panels will still be able to function.
200 Watt CIGS Flexible Solar Panel with Adhesive features a pre-assembled adhesive backing that eliminates the need for brackets and drilling during installation. No tools are required for an easy and hassle-free setup.
MPPT
SMART LCD & APP CONTROL
BougeRV Sunflow MPPT provides 3 modes for display operation, full setting mode, no-load mode, and read-only mode, you can choose the appropriate mode to monitor and manage your system easily. The LCD display will automatically loop playback charge current and charge voltage every 5s. Sunflow 30A solar panel regulator also features remote app control, and Bluetooth range up to 32 feet. You can stay informed with the "Solar" APP that provides the solar panel, battery and solar charge controller.
For LiFePO4 batteries, a sub-freezing (32°F) charge will permanently deteriorate performance and safety. BougeRV Sunflow 30A/40A/60A MPPT solar charge controller can protect your lithium batteries for innovatively supporting low-temp cut-off at the solar charge controller end. BougeRV Sunflow MPPT can also restart or activate dormant lithium batteries that are turned off due to short circuits or excessive amp draw.
- For LiFePO4: The controller's lithium battery activation function refers to the specific process of initializing and optimizing the performance of a new or inactive lithium battery. It can effectively extend the lifespan of the lithium battery and maintain its performance stability.
- For SLD: The BougeRV MPPT solar charge controller has the capability to reactivate the active material inside lead-acid batteries through a regulated current and voltage, thereby enabling them to function properly.
BougeRV Sunflow 30A/40A/60A MPPT controller can adjust the charge current from 0A to 60A. Its high tracking efficiency is up to 99.5%, and its peak conversion efficiency is up to 99%. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.
BougeRV 30A/40A/60A MPPT solar charge controller features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.
The pure sine wave inverter provides pure power, with low distortion rate (≤3%), lower power consumption and high conversion efficiency (>85%). Pure sine wave inverters keep voltage and current at safe levels, which is extending the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.
Using BougeRV solar inverter, user can monitor operating data of applicances in real-time. Let users know the situation of applicance cclearly, which includs: input and output voltage, frequency, battery power, output power wattage, output waveform, inverter working status and other data.
Pure Sine Wave Inverter
The pure sine wave inverter provides pure power, with low distortion rate (≤3%), lower power consumption and high conversion efficiency (>85%). Pure sine wave inverters keep voltage and current at safe levels, which is extending the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.
Using BougeRV solar inverter, user can monitor operating data of applicances in real-time. Let users know the situation of applicance clearly, which includs: input and output voltage, frequency, battery power, output power wattage, output waveform, inverter working status and other data.
7 multiple protection function: Input low voltage protection, Input over voltage protection, Input overload protection, Short-circuit protection, Over temperature protection, Reverse connection protection. Always monitor and protect circuit safety through LED indicator and alarm sound.
User can controll the inverter via the 3M wired remote controller and can install it in RVs and houses for their need. There are multiple output ports on the BougeRV pure sine wave inverter: a 5V/2.1A USB interface, 3 AC output outlets, a network interface.BougeRV pure sine wave inverter comes with an 2-year warranty that commences from the date of purchase.
With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently, which will open at high working temperature, and close at nomal temperature.
Battery
Supporting Up to 16 Batteries in a Series-Parallel pack, the Max expandable capacity of the battery can up to 20480Wh, while it will also maintain a balanced voltage across all cells to keep the charging and discharging safe.
BougeRV LiFePO4 is only 27lbs weight, 50% lighter than a lead-acid battery with same capacity. Comes with 4 fixable holes, you can install the screw and fix the battery stably for RVs, Marine and Off-Grid Applications, it will not slide. You can also move the lithium battery easily with grabbing its handles on both side.
BougeRV lithium battery supports the max charge current can up to 1C (100A), which means you the battery can be full charged within 1 hours. It has built-in BMS protection, made of premium aluminum case, to keep your charge safer. Features overcharge, over-discharge, over-current and short circuit protection.
Product Specifications
| SKU | ISE138 | ||
|---|---|---|---|
| Max Power (Pmax) | 200±5％W | Operating Temperature Limits | -40℉ ~ +185℉ |
| Solar Cells Efficiency | 16% | Series Fuse Rating | 10A |
| Max. Power Voltage Vmp (V) | 25±5％V | Temperature Coefficient Pmax | -0.38%/℃ |
| Max. Power Current Imp (A) | 8.02±5％A | Temperature Coefficient Voc | -0.28%/℃ |
| Open Circuit Voltage Voc (V) | 31.5±5％V | Temperature Coefficient Isc | -0.008%/℃ |
| Short Circuit Current (Isc) | 8.64±5％A | Dimensions | 26*85.6*0.06 inches |
| Max. System Voltage | 1000V DC | Weight | 7.05 lbs |
| Warranty Description | 10 Years | Product Type | 200w Flexible Solar Panel |
| Performance Warranty | 25 years |
| SKU | ISE217 | ||
|---|---|---|---|
| System Voltage | 12V/24V | Battery Type | LiFePO4, SLD, GEL, FLD, AGM, User Defined |
| Rated Charging Current | 30 Amp | Grounding Type | Common Negative |
| Maximum PV Input Voltage | 100V (95V protection, 90V recovery) | Operating Temperature Range | -31℉ to 149℉ (-35℃ to 65℃) |
| Maximum Input of PV System | 450W/12V; 900W/24V | Protection Grade | IP34 |
| Rated Load Current | 20 Amp | Bluetooth Communication | built-in bluetooth |
| Charge Current Ajust Range | 0 Amp to 30 Amp | Data Storage | Save the last 200 days of historical data |
| Battery Operate Voltage Range | 8V to 32V | Dimension | 7.28L*5.23W*2.95H inches |
| No Load Loss | ≤10mA | Weight | 2.37 lbs |
| SKU | ISE174 | . | . |
|---|---|---|---|
| Rated power | 2000W | Output frequency | 60Hz ± 0.5Hz |
| Surge power | 4000W | Efficiency | ＞85% |
| Input voltage | DC 12V | Over voltage shutting | ≥16V |
| Rated output voltage | AC 120V ± 10% | Low voltage shutting | ≤9.5V |
| Loss when no load | <1.2A | Over temperature shutting | >176℉ |
| Output waveform | Pure sine wave | Ambient temperature | 14℉ - 113℉ |
| Product Dimensions | 12.4"L x 8.07"W x 3.54"H | Warranty Description | 18 months |
| SKU |
ISE176 | |||
|---|---|---|---|---|
| Nominal Voltage | 12.8V | Over-Charge Voltage |
|
|
| Nominal Capacity | 100Ah | Over-Discharge Voltage | 9.40±0.32V | |
| Charge Voltage | 14.1V | Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). | |
| Energy | 1280Wh | Max. Series Voltage Of Packs | 48V | |
| Standard charge | 50A(0.5C) | Max. Parallel Current Of Packs | 400Ah | |
| Rapid charge | 100A（1.0C） | Internal resistance | ≤30mΩ |
