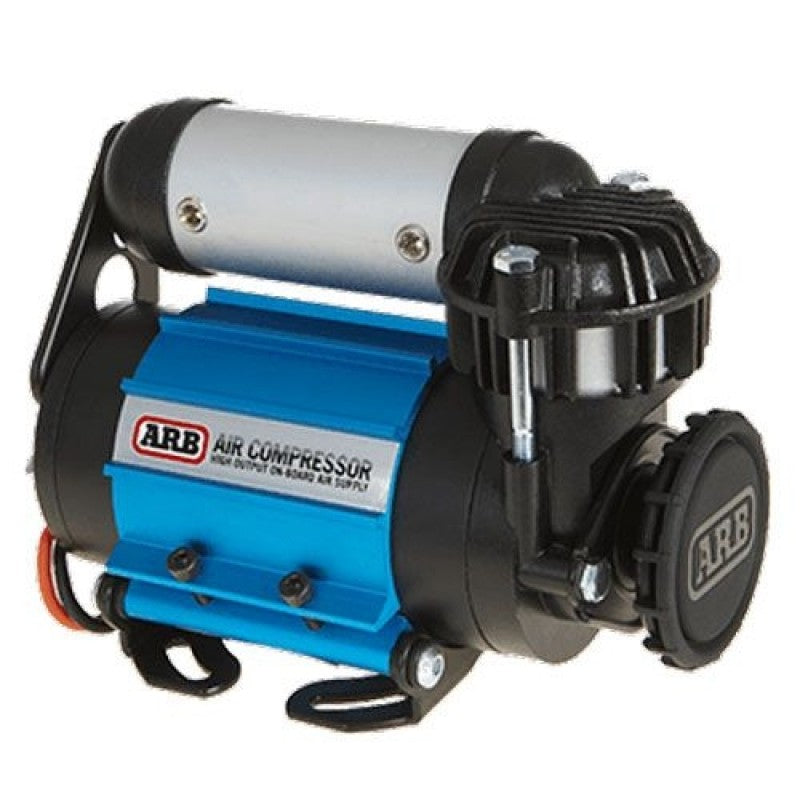

ARB CKMA12 High Output On-Board Air Compressor - 12V

ARB HIGH PERFORMANCE ON-BOARD COMPRESSOR - 12V

The most popular in the range, ARB's High Output Air Compressor has been constructed entirely of lightweight, high-grade materials and is available in both portable and vehicle mounted configurations. With a class-leading flow rate, this compressor has been designed for Air Locker® activation (on-board model), fast tire inflation and a range of other functions whether they be for work or play. The vehicle mounted kit comes with a full wiring loom and mounting hardware for easy installation, while the portable kit includes a 6 meter air hose, battery clamps, inflation kit, and a durable carry case.


FEATURES

  • Sealed for moisture and dust resistance
  • Hard-anodized cylinder bore for reduced friction
  • Teflon-impregnated carbon fiber piston seal for maximum trouble-free life
  • Anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees on vehicle mounted models
  • Quality components for quiet operation and extra long life
  • Constructed entirely of lightweight, high strength engineering grade materials
  • Over-pressure safety valve equipped
  • Motor is internally thermal protected against extreme temperature damage
  • Heavy duty maxi-fuse equipped for professional in-line circuit protection
  • On-board model available in either a 12V or 24V configuration

SPECS

  • Supply Voltage: 12
  • Current Draw (No Load): 14A
  • Air Flow @ 0 KPA: 87.2L/m
  • Air Flow @ 0 PSI: 3.08 CFM
  • Air Flow @ 200KPA: 66L/m
  • Air Flow @ 29 PSI: 2.34 CFM
