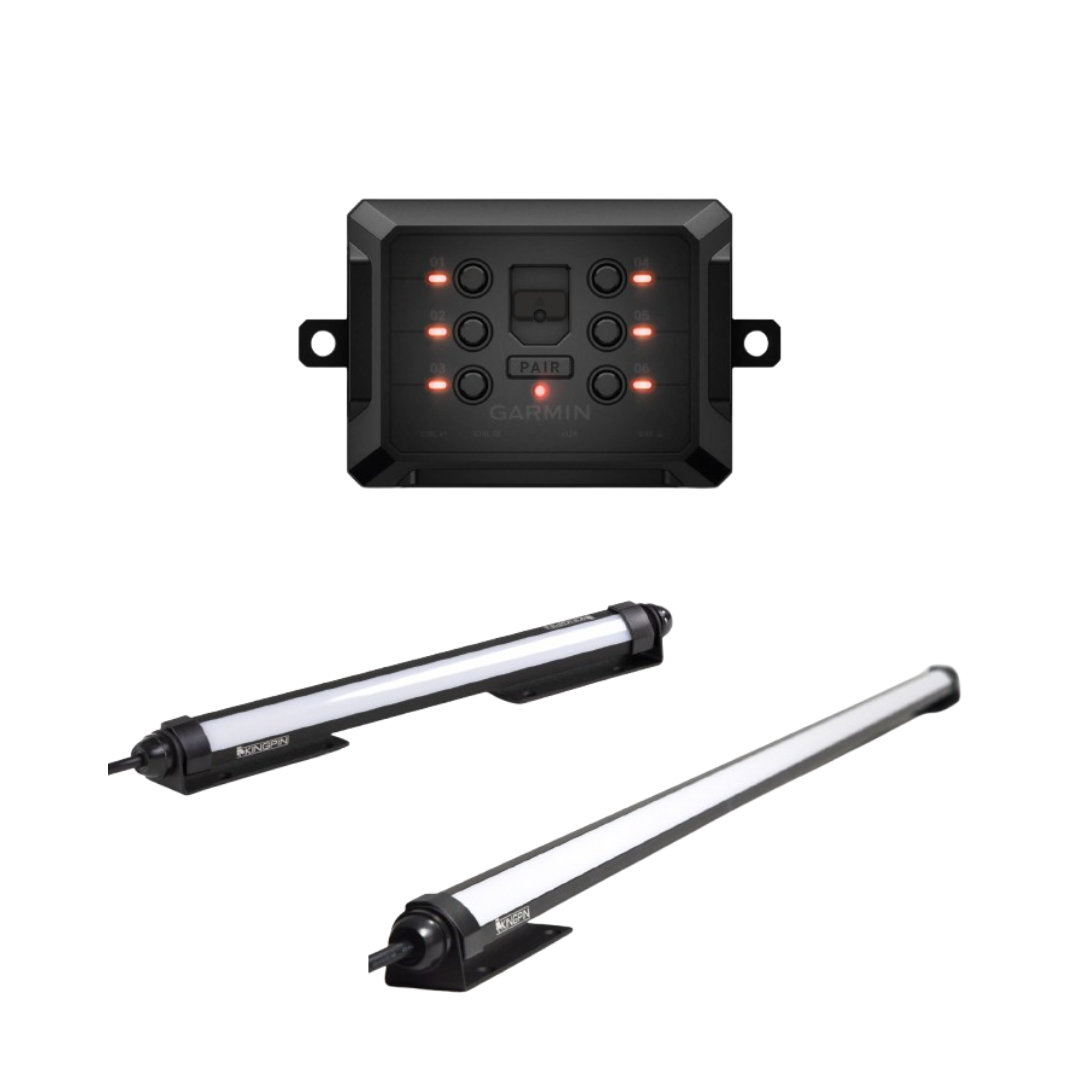

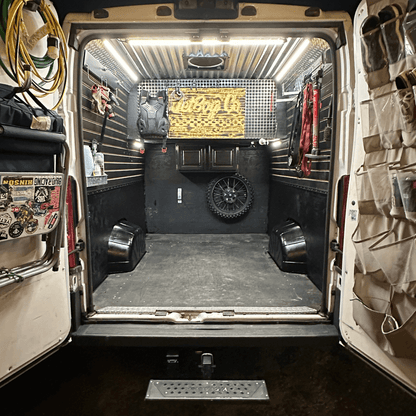

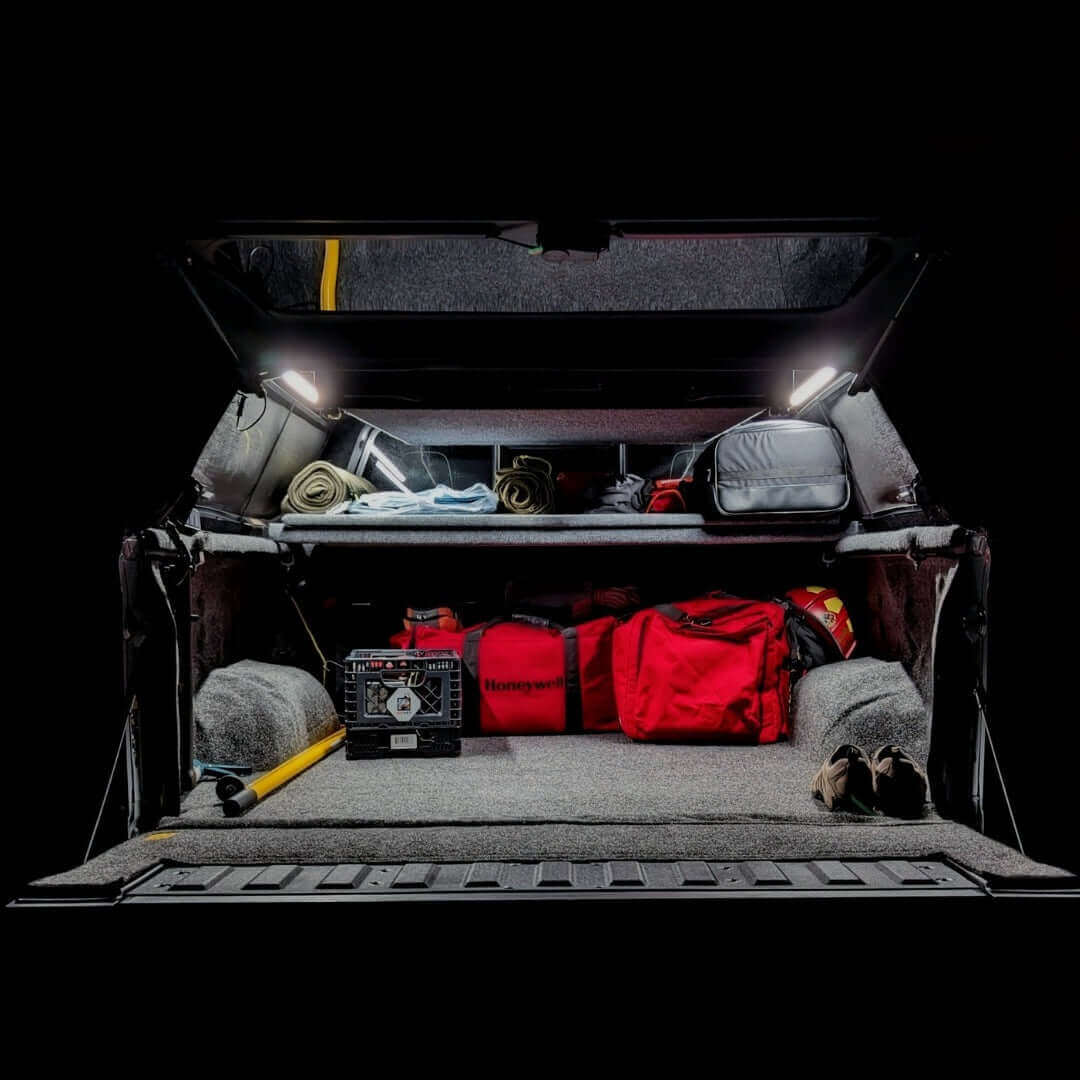

Garmin PowerSwitch + Kingpin Scene Lighting

ADD WIRELESS CONTROL FOR YOUR VEHICLE’S ELECTRICAL ACCESSORIES

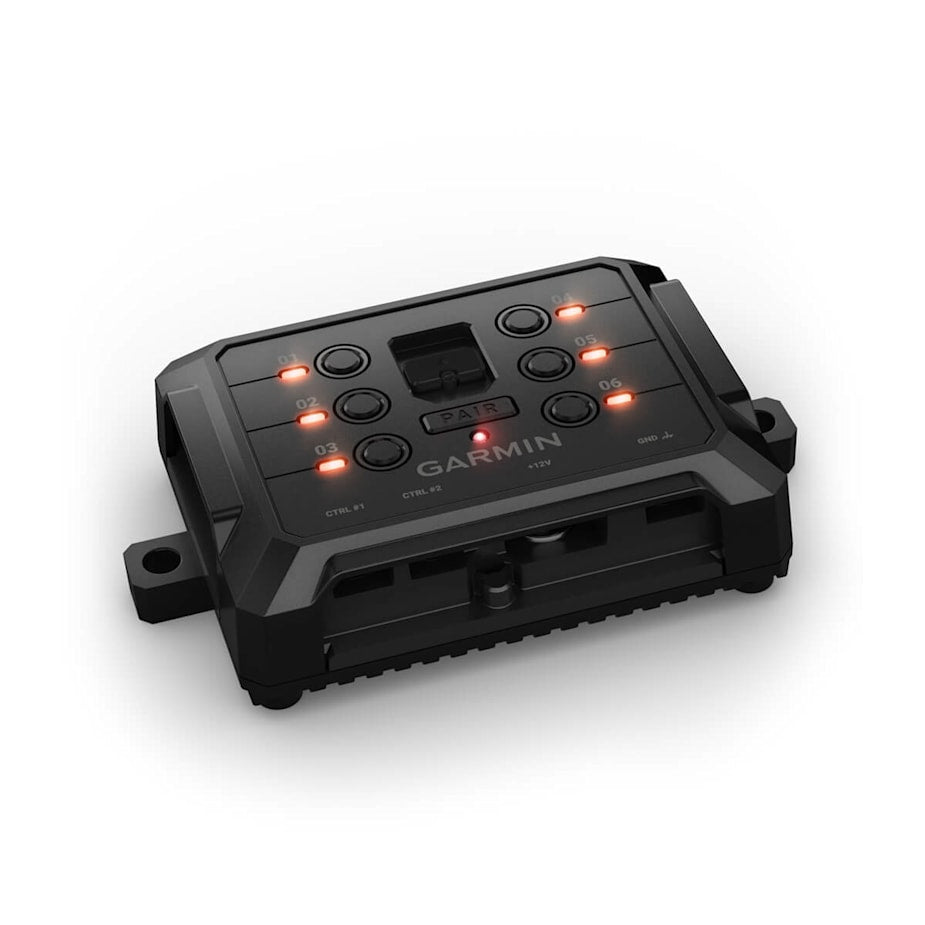

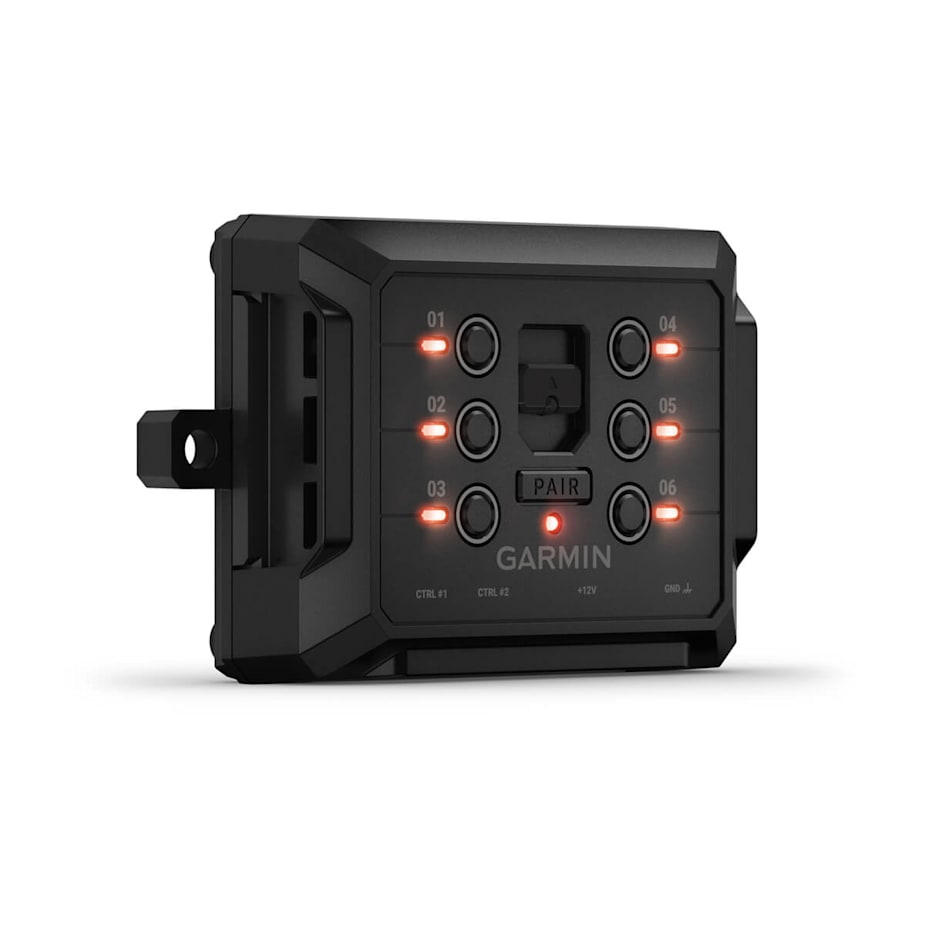

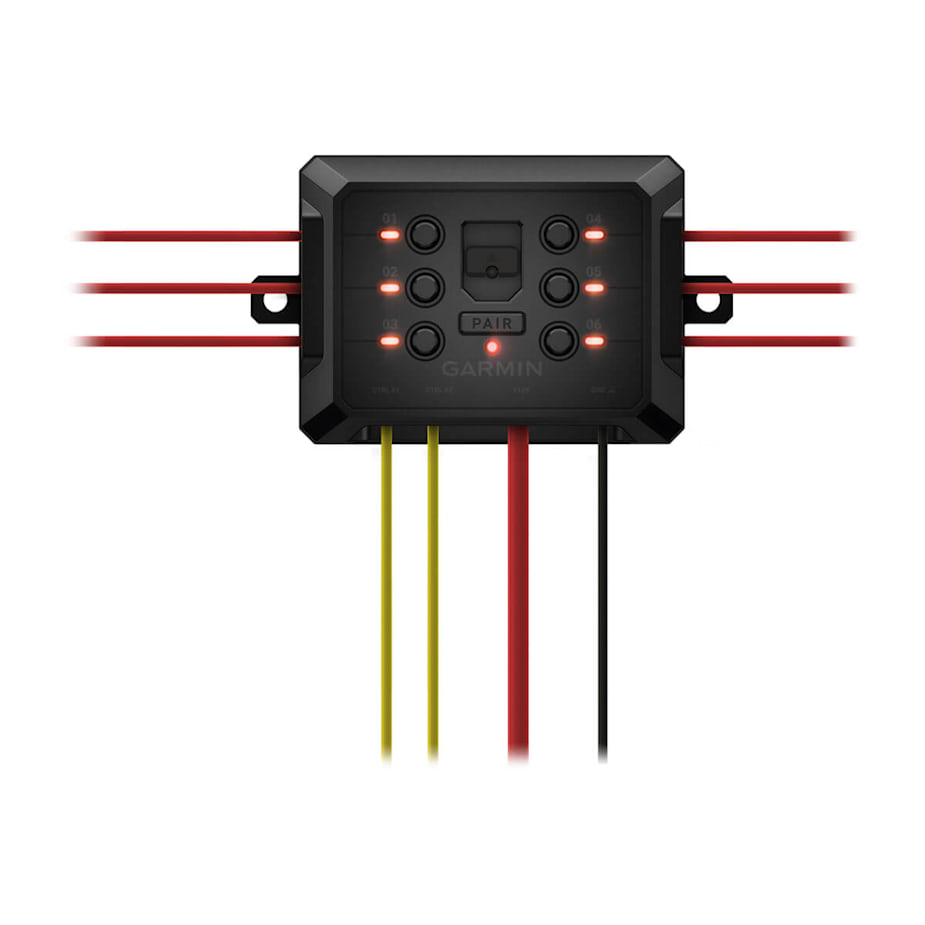

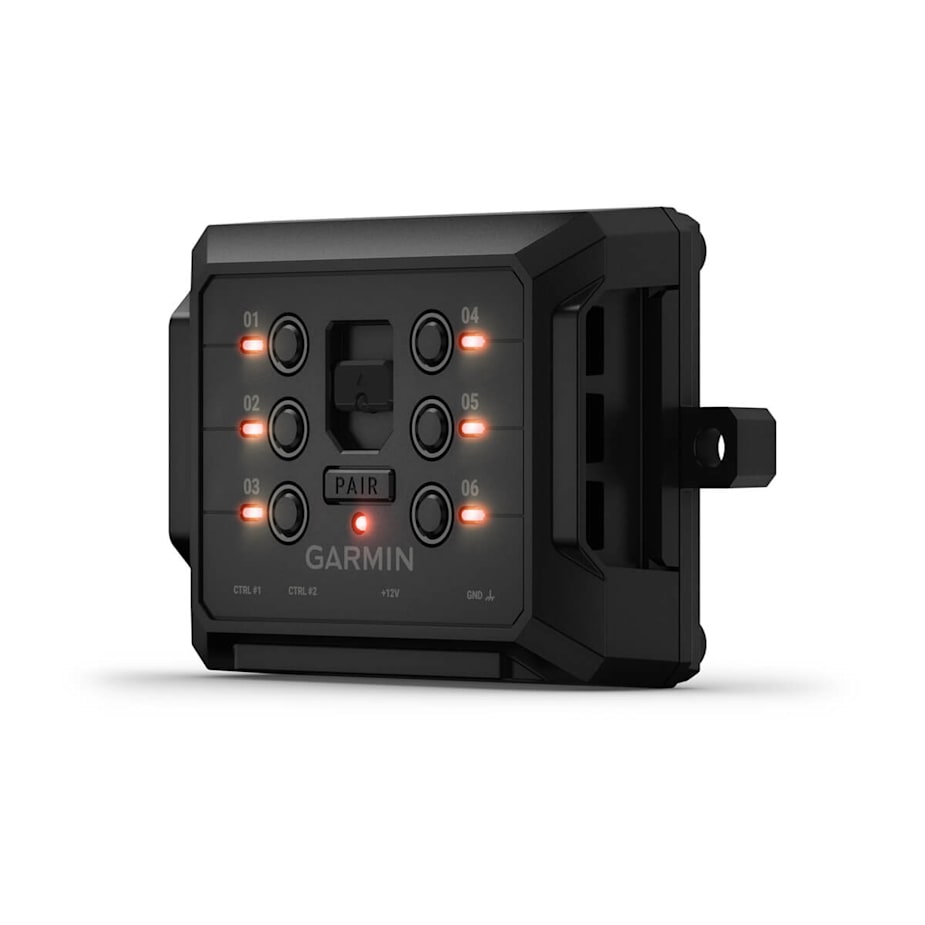

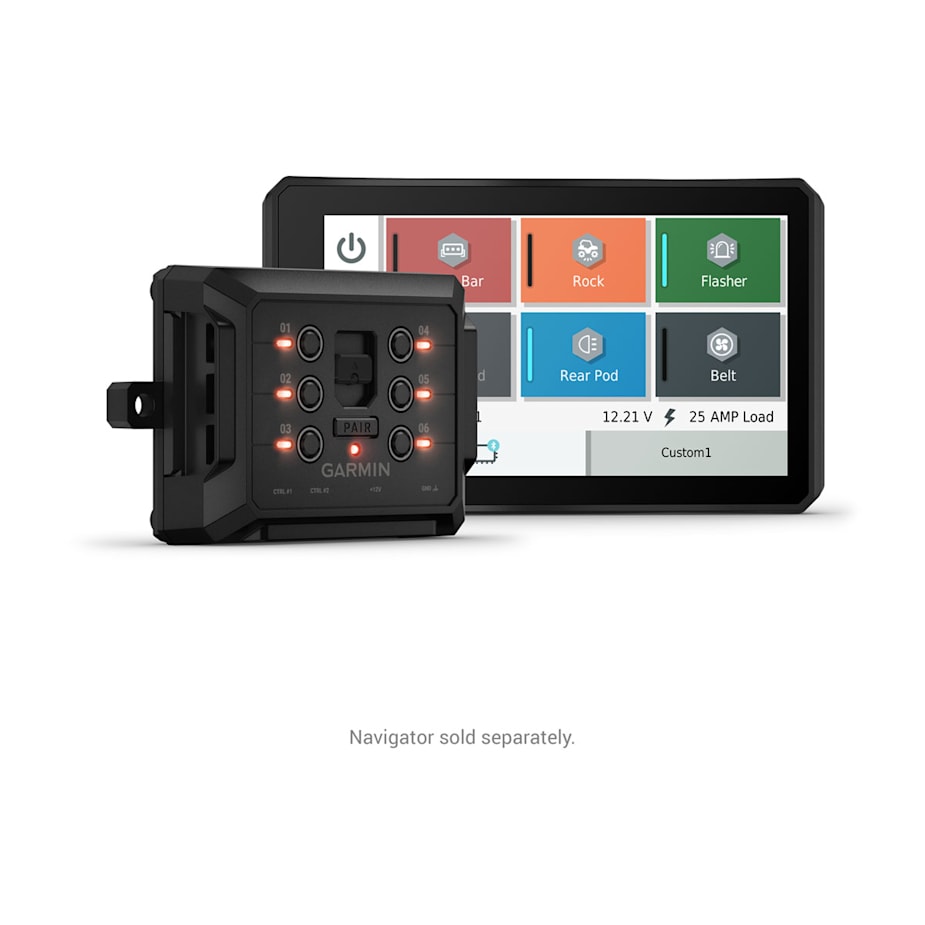

Garmin PowerSwitch is the compact digital switch box that offers convenient centralized control of your vehicle’s 12-volt accessories from a compatible Garmin navigator or smartphone.

• Control light bars, horns, air compressors, locks and more, right from your compatible navigator or smartphone.
• Installation is a snap — no cutting into dashboards or interference with your vehicle’s electronics.
• Tough enough for off-roading, this rugged switch box is IPX7 weather resistant.
• Use your device’s touchscreen to wirelessly access up to six switch outputs of 30 amps each.
• Tailor on-screen switch panels with customizable labels, icons, channel groups and more.
• Want to control more? You can access up to four Garmin PowerSwitch devices from the same display.



THE APP

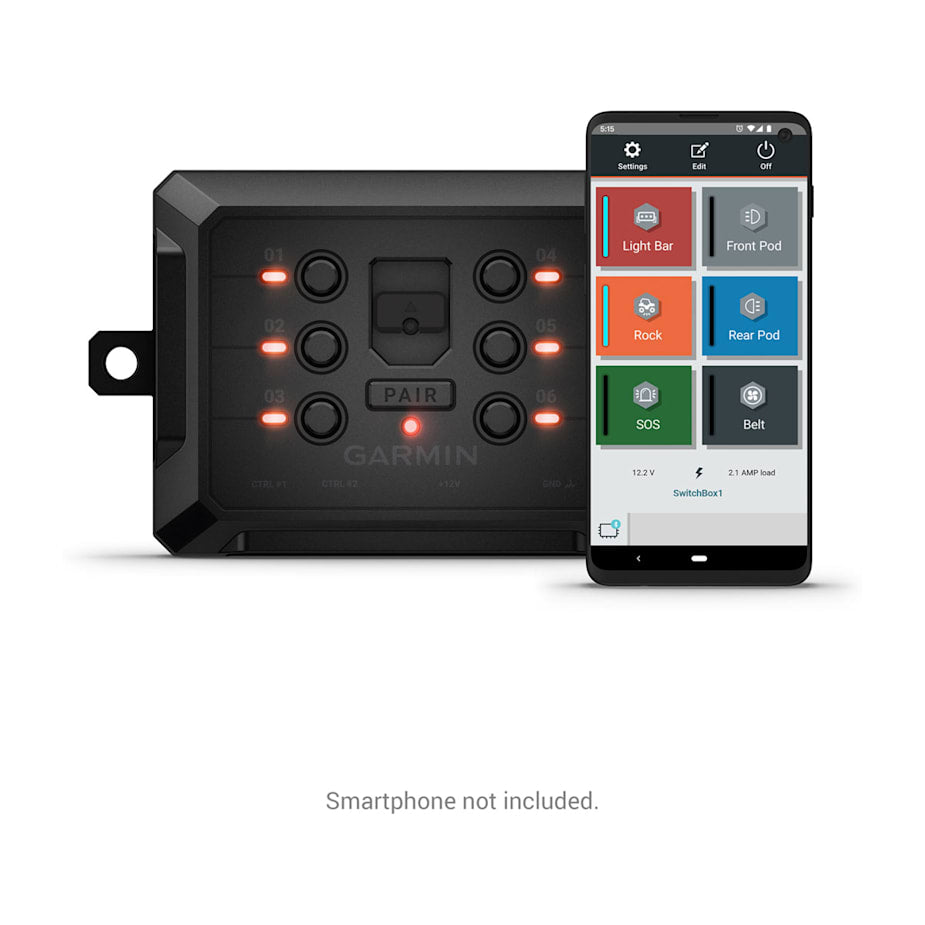

Use the Garmin PowerSwitch app on your compatible Garmin navigator or smartphone to control all your accessories from your touchscreen device.

WIRELESS SWITCH CONTROL

The Garmin PowerSwitch digital switch box uses BLUETOOTH^® wireless connectivity to program and operate your accessories from compatible Garmin navigators or smartphones.

MORE CONTROL

Control up to four of your Garmin PowerSwitch devices from your compatible Garmin navigator or smartphone.

IN-DASH CONNECTIVITY

Garmin PowerSwitch support for the Apple CarPlay^® software feature and Android Auto™ connectivity (enabled via this app) lets you seamlessly view and control switching functions from your vehicle’s compatible in-dash infotainment display.

INSTALL MADE SIMPLE

Hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall.

COMPACT FOR EASY MOUNTING

The compact 5” x 3” x 1” form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs and ATVs to off-roading 4x4s and snowmobiles.

CUSTOMIZE SWITCHES

Create custom virtual switch panels with labels, icons and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s the simple way to control light bars, rock lights and more.

AMPLE OUTLETS

With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box (not intended for controlling motors with reverse polarity).

CONTROL INPUTS

Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.

LIGHT IT UP

The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.

POWER YOUR ADVENTURES

In addition to vehicle lights, you can tap into Garmin PowerSwitch with all types of useful gear: Comm radios, refrigerators, air compressors or virtually anything that can run with 12-volt power.

SPECS

General Dimension 4.9”W x 1.3”H x 3.0”D (12.5 x 3.2 x 7.5 cm)

Weight 10 oz (283 g)

Water rating IPX7

Digital Switching Features

• Number of switch outputs: 6
• Max amps per switch output: 30 amps
• Max amps total: 100 amps
• Number of hardwire inputs: 2
• Max number of controllers* for pairing with a PowerSwitch device: 4
  *Controller is defined by a user’s smartphone, mobile device or compatible Garmin navigator (sold separately)
• Max number of PowerSwitch devices for pairing with a controller*: 4
  *Controller is defined by a user’s smartphone, mobile device or compatible Garmin navigator (sold separately)

IN THE BOX

• Garmin PowerSwitch

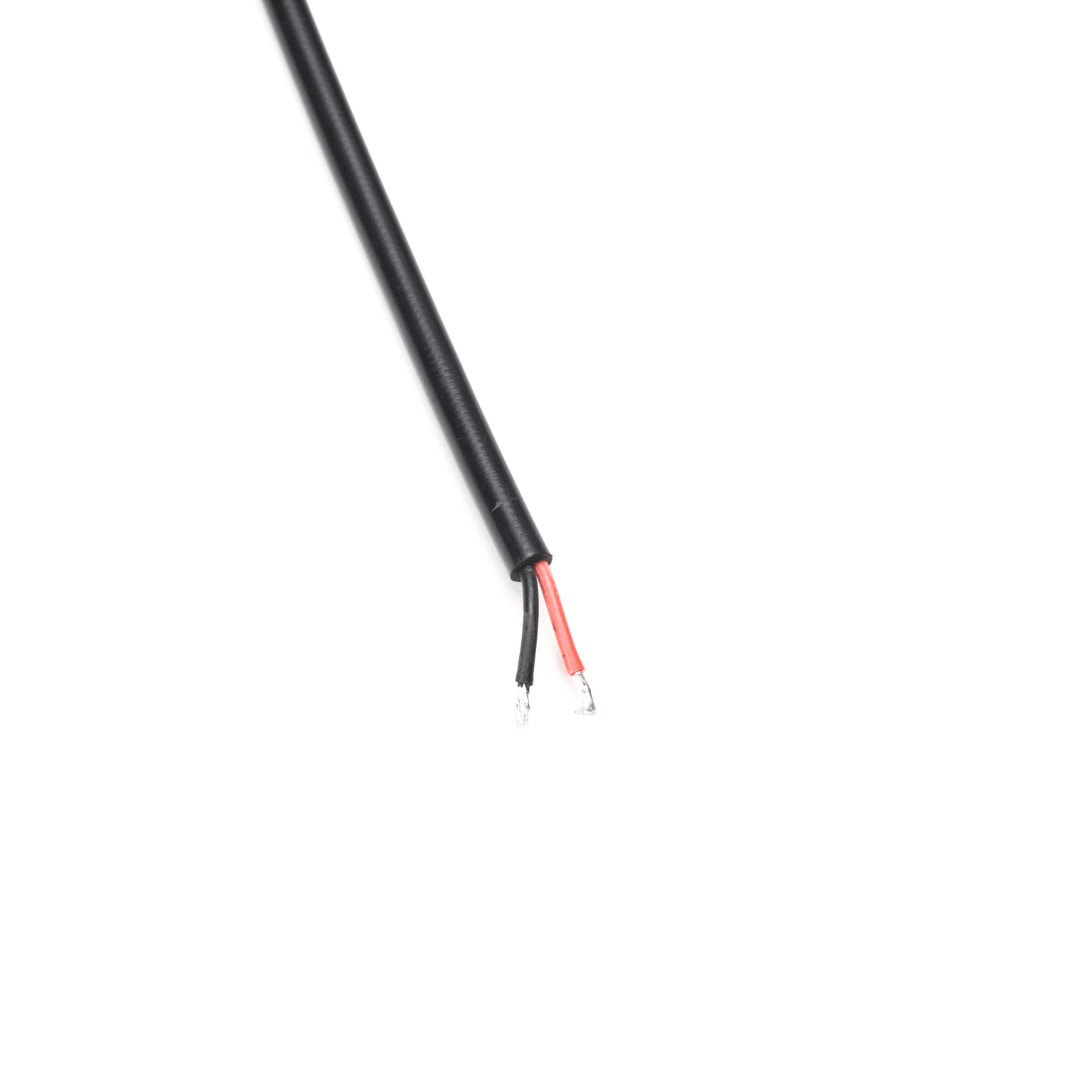

• Power cable
• Ground cable
• Terminals
• Documentation

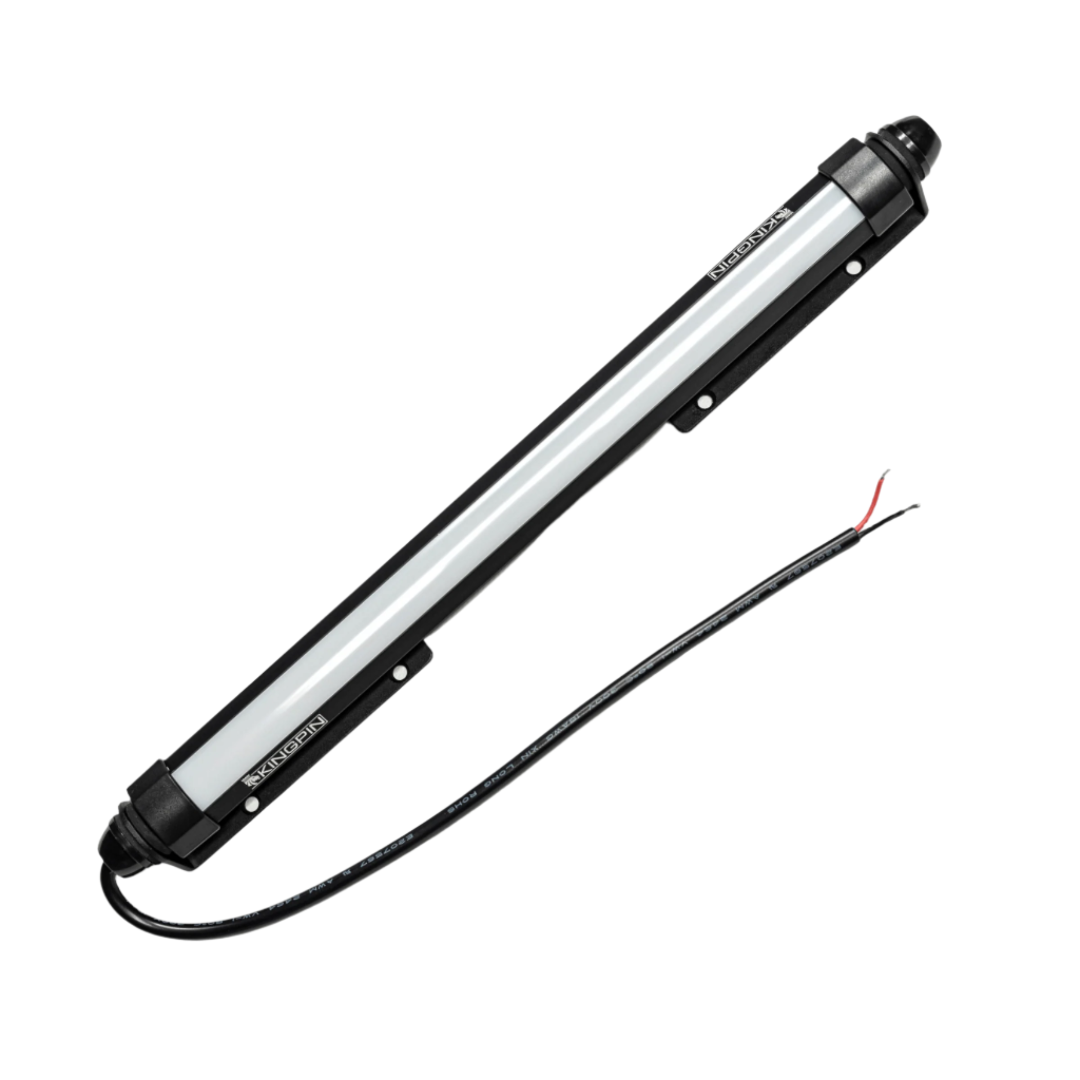

V-Series 12" Light

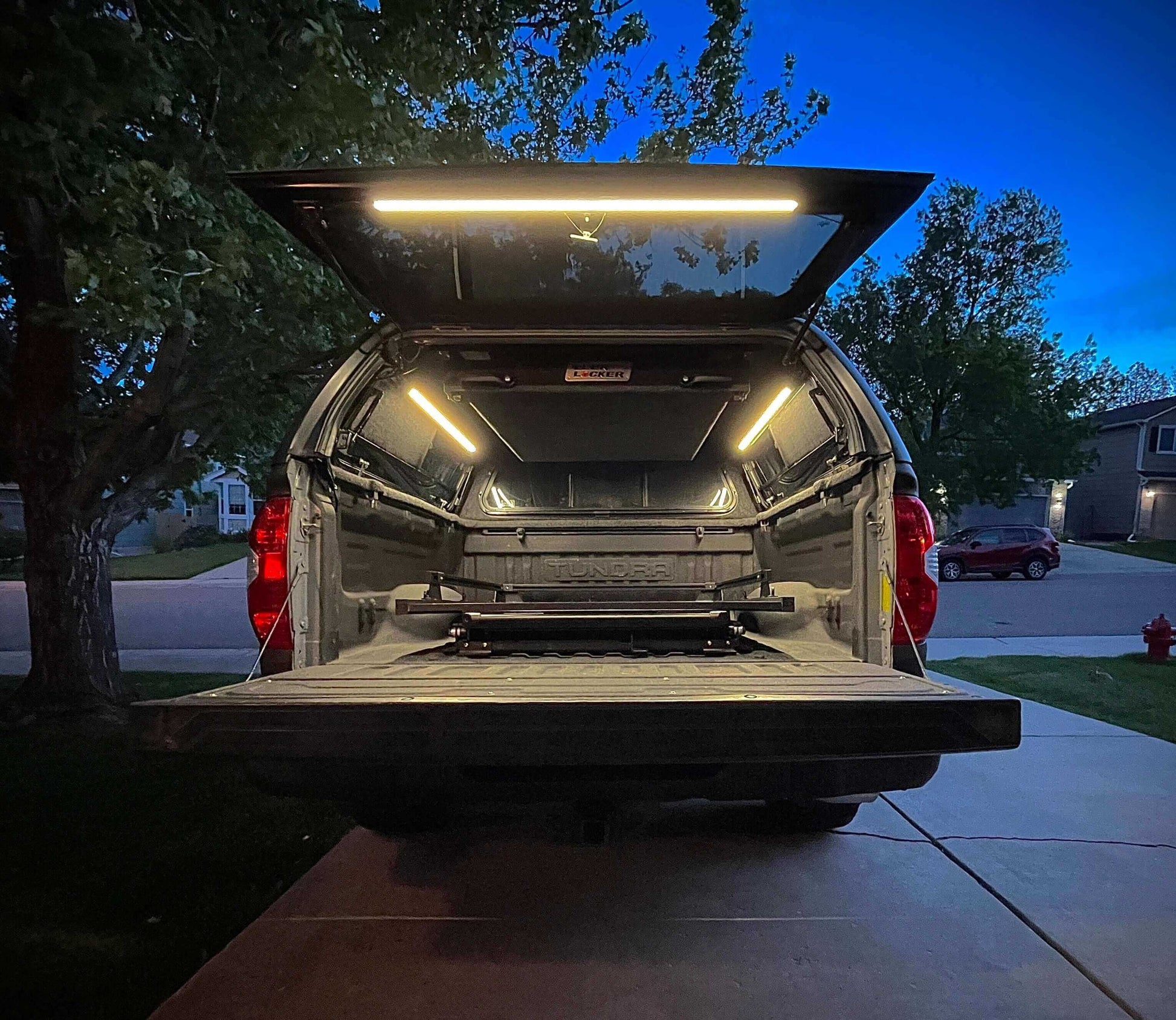

The V-Series 12" is the shorter version of the original 40" workhorse that started it all.

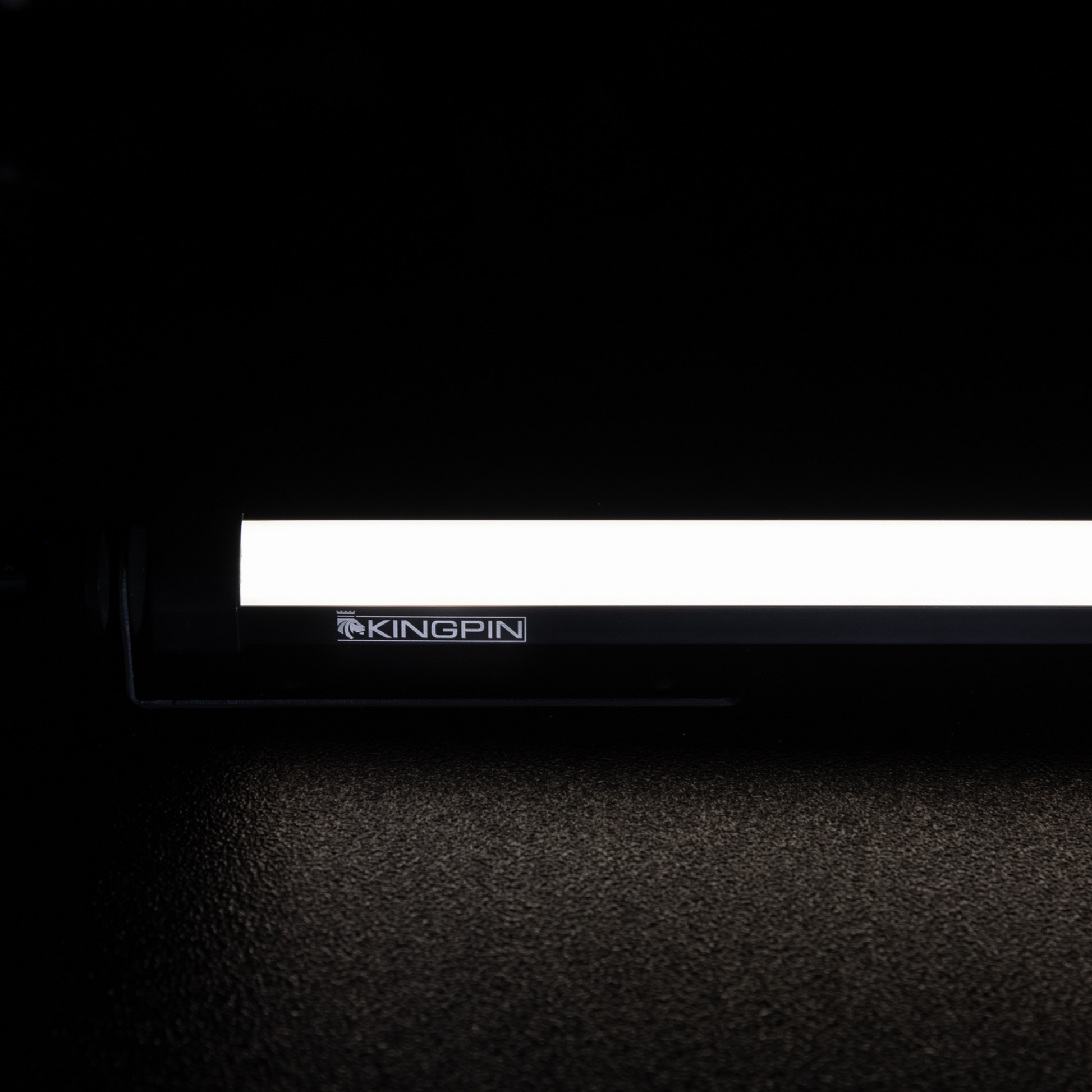

Durable, low-profile, rotating LED light is what the Kingpin V-Series offers.

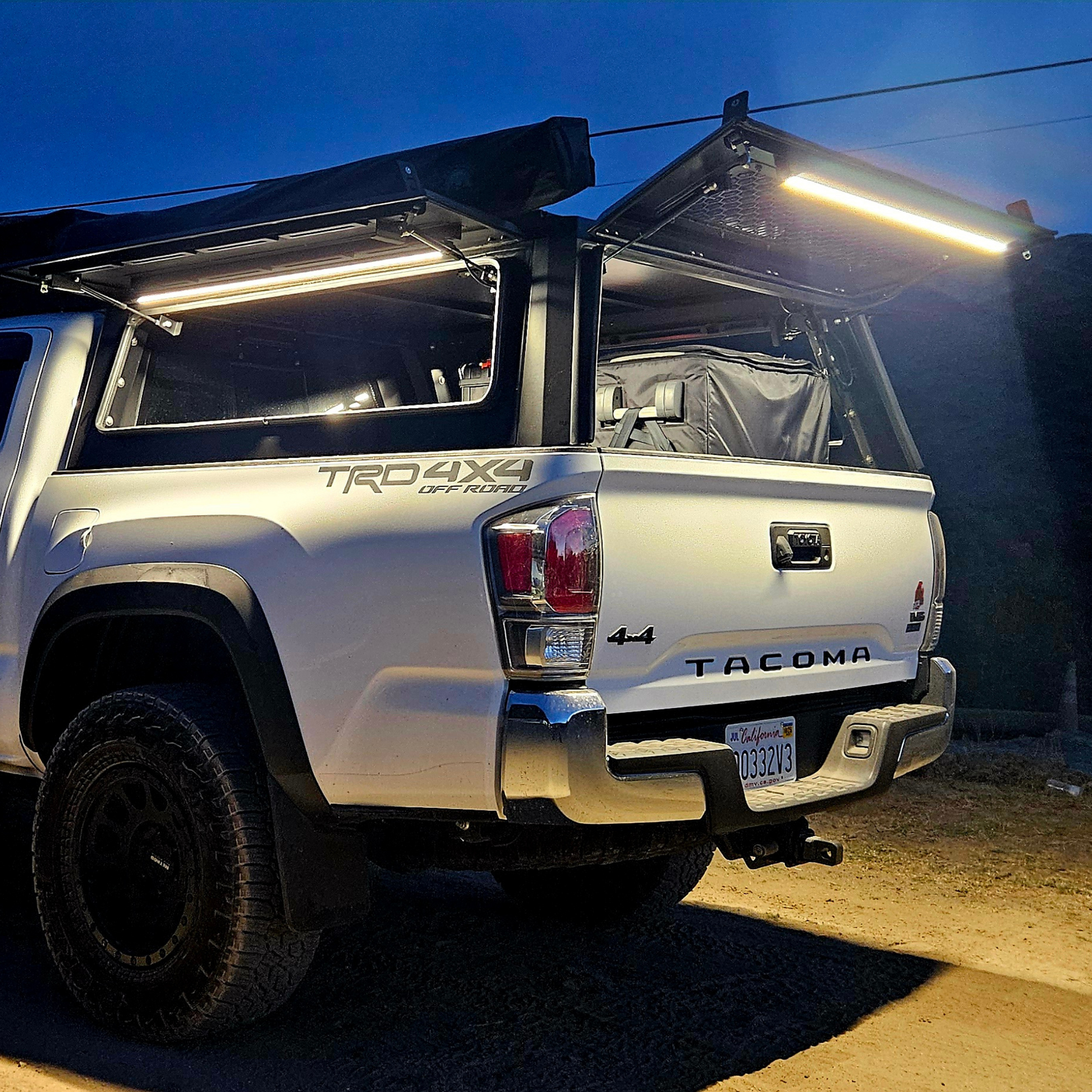

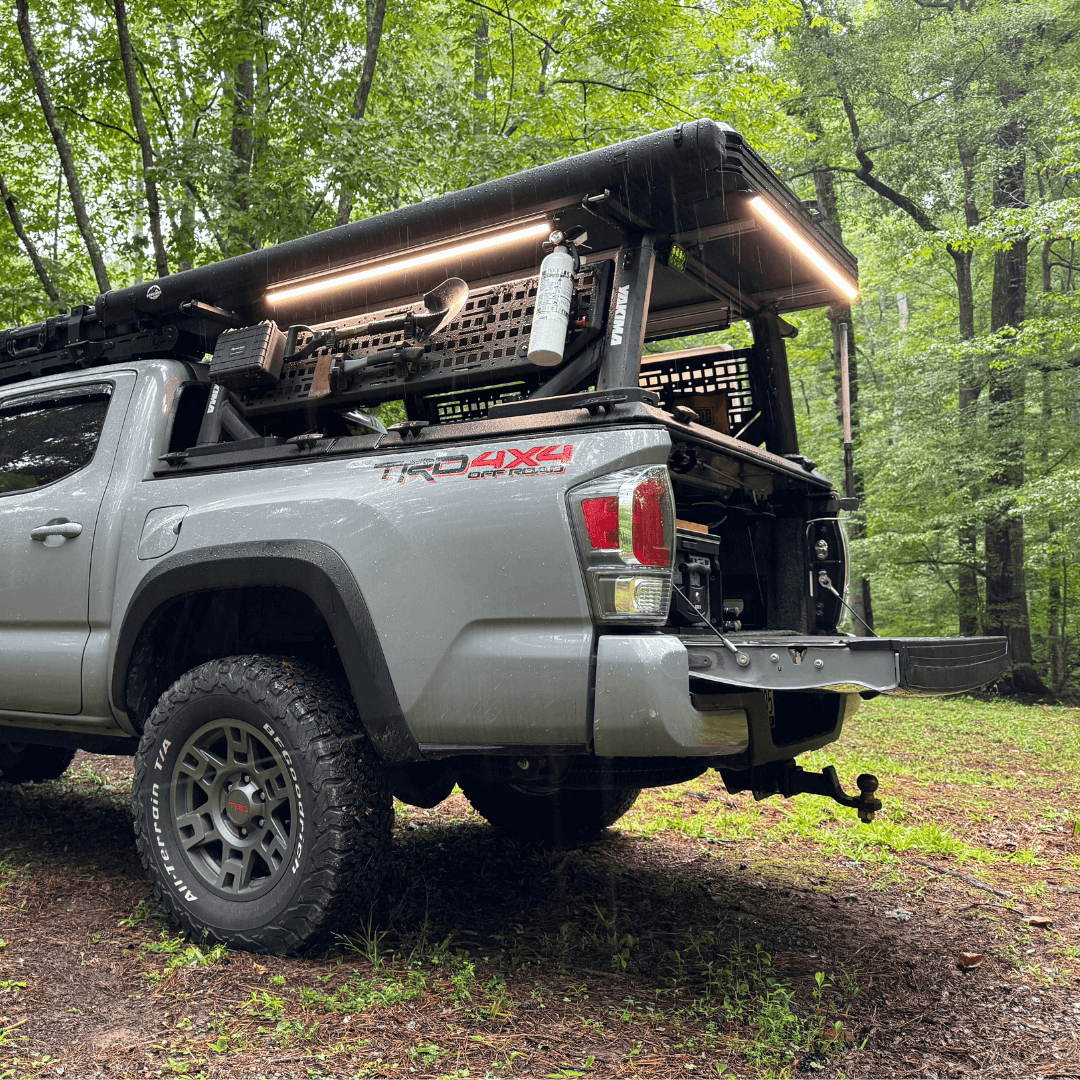

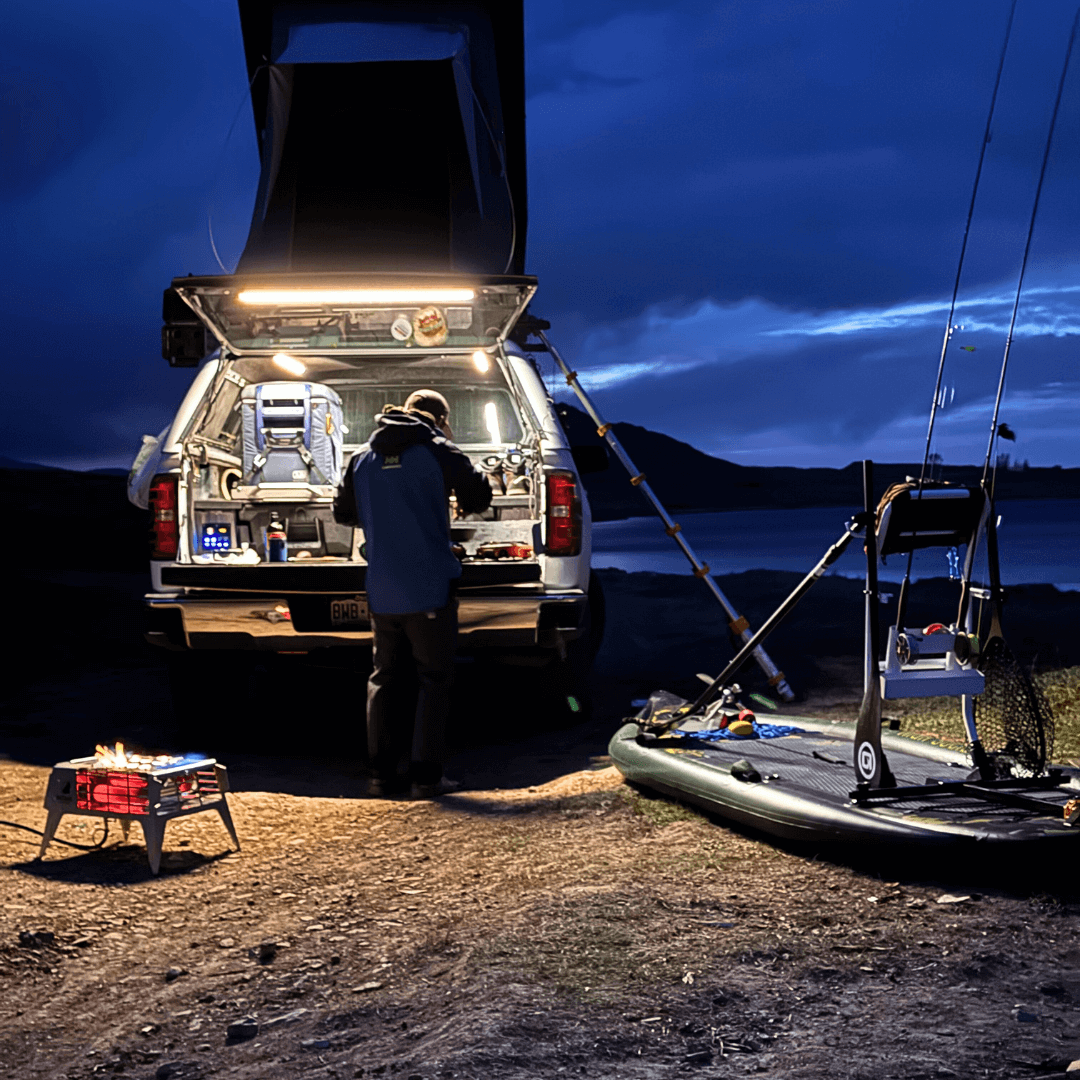

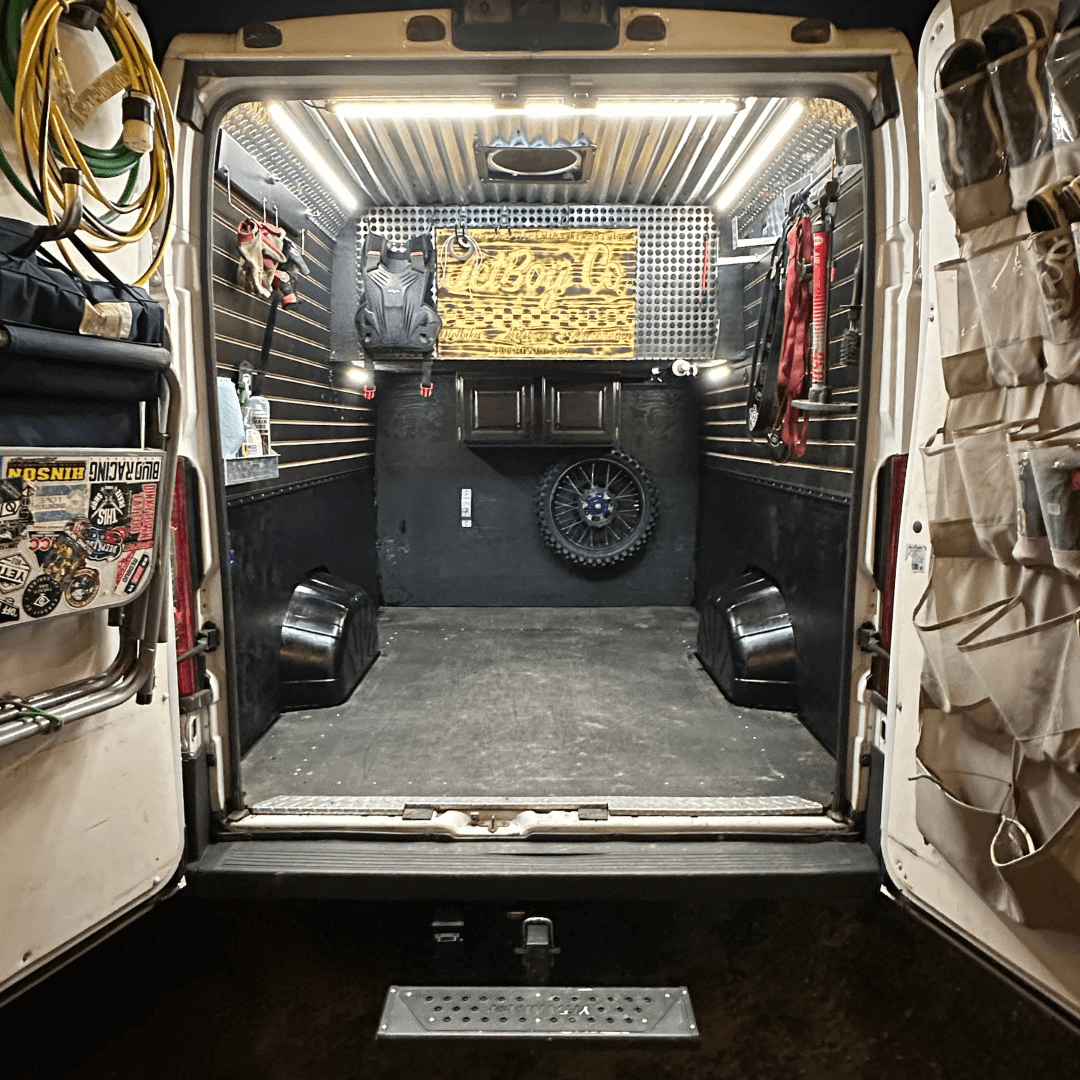

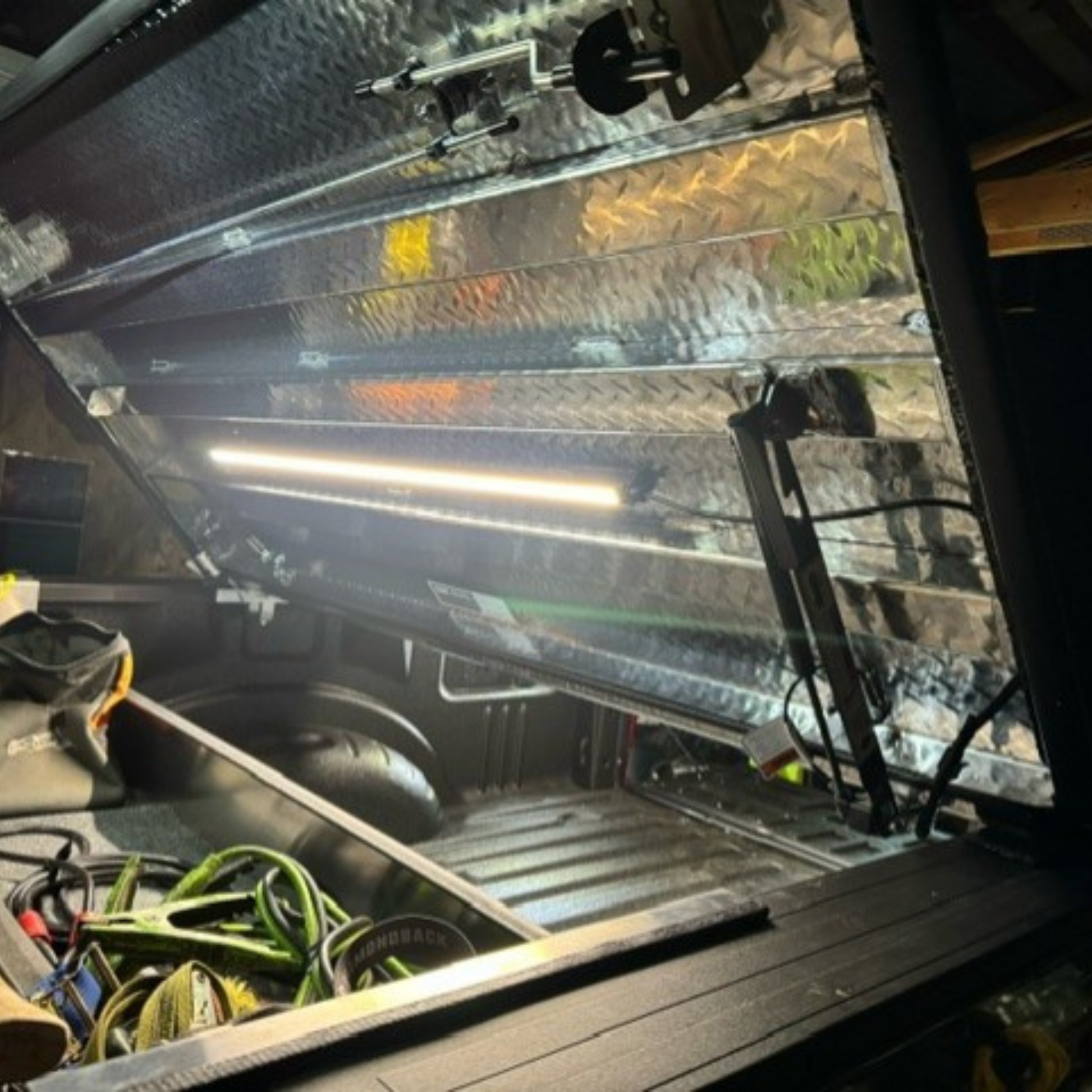

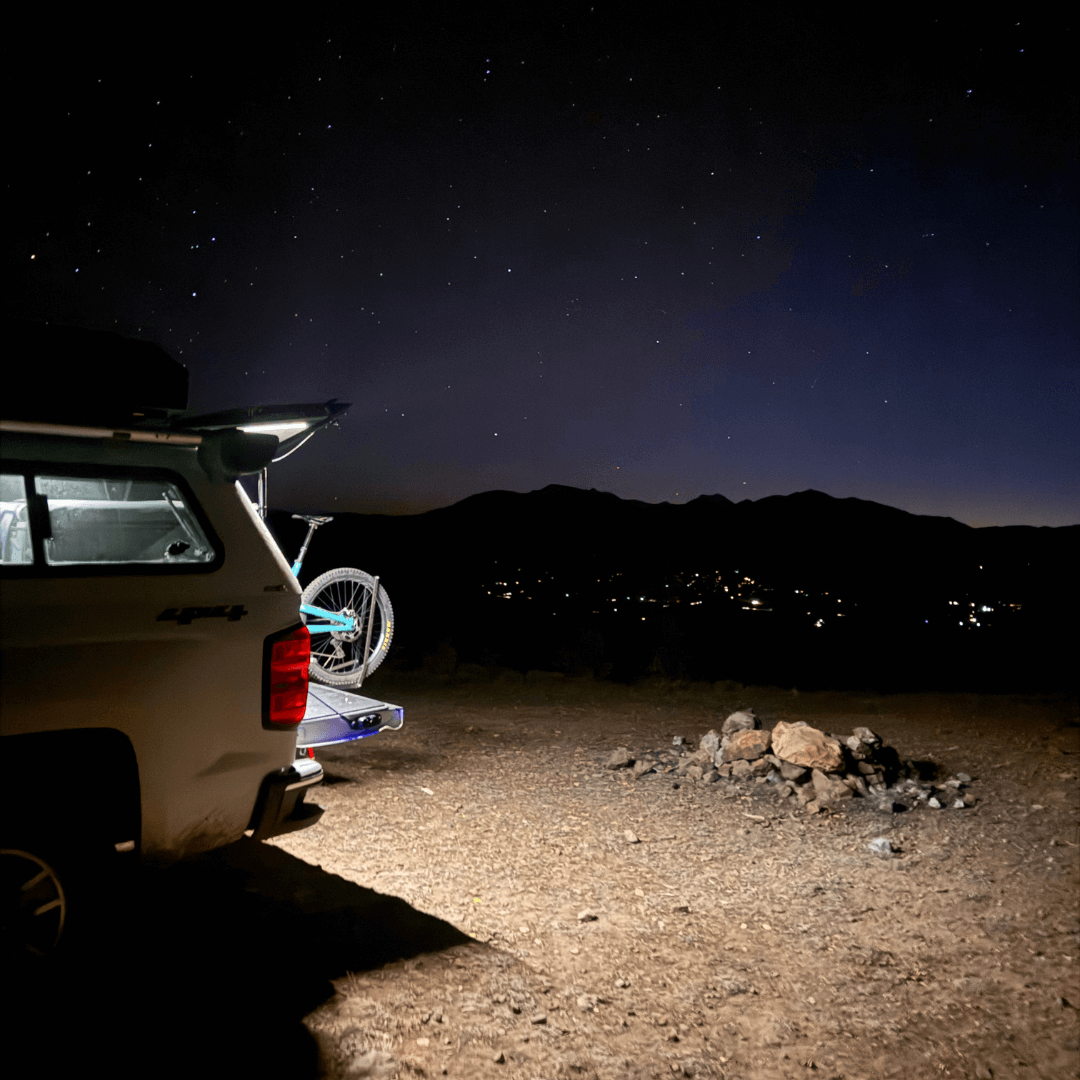

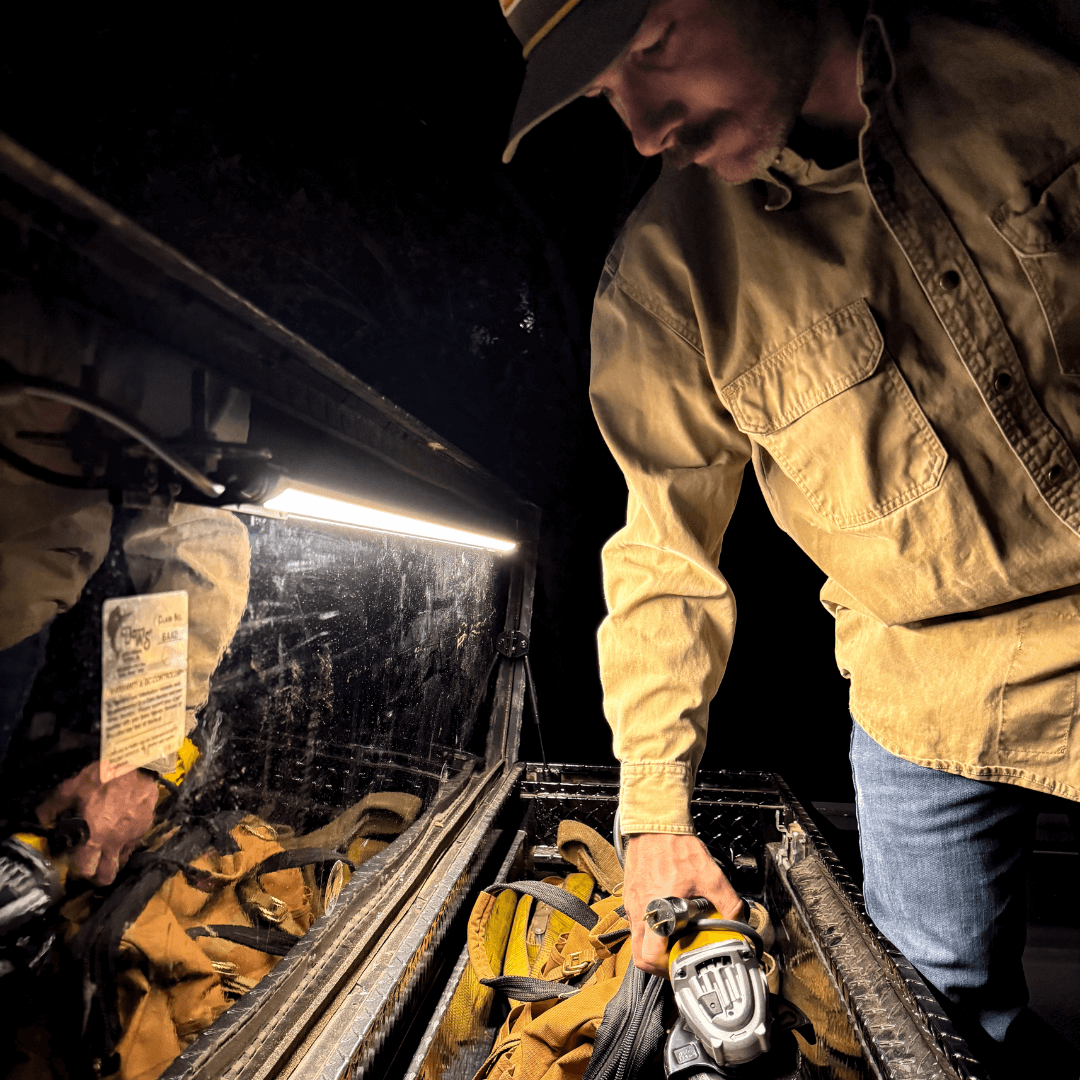

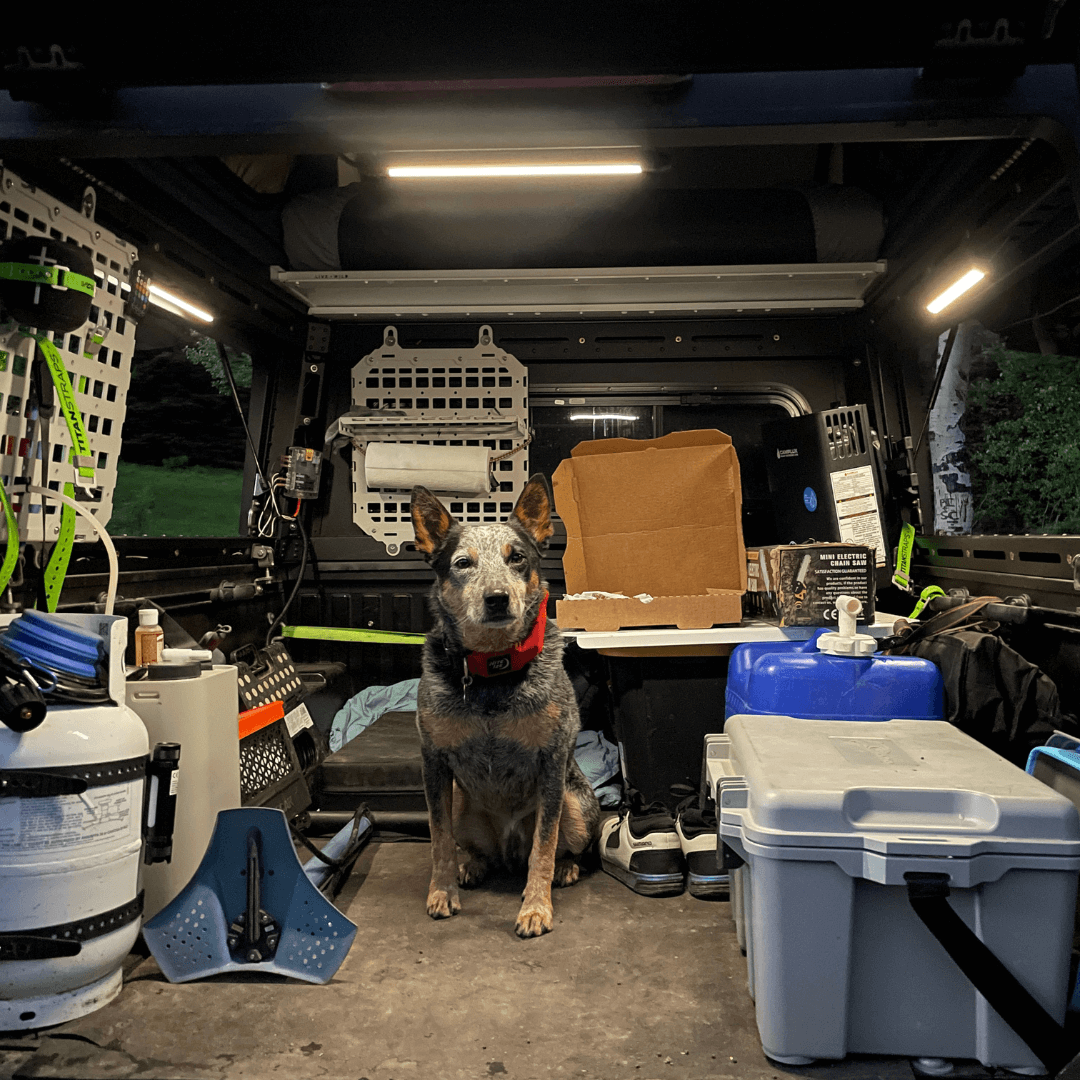

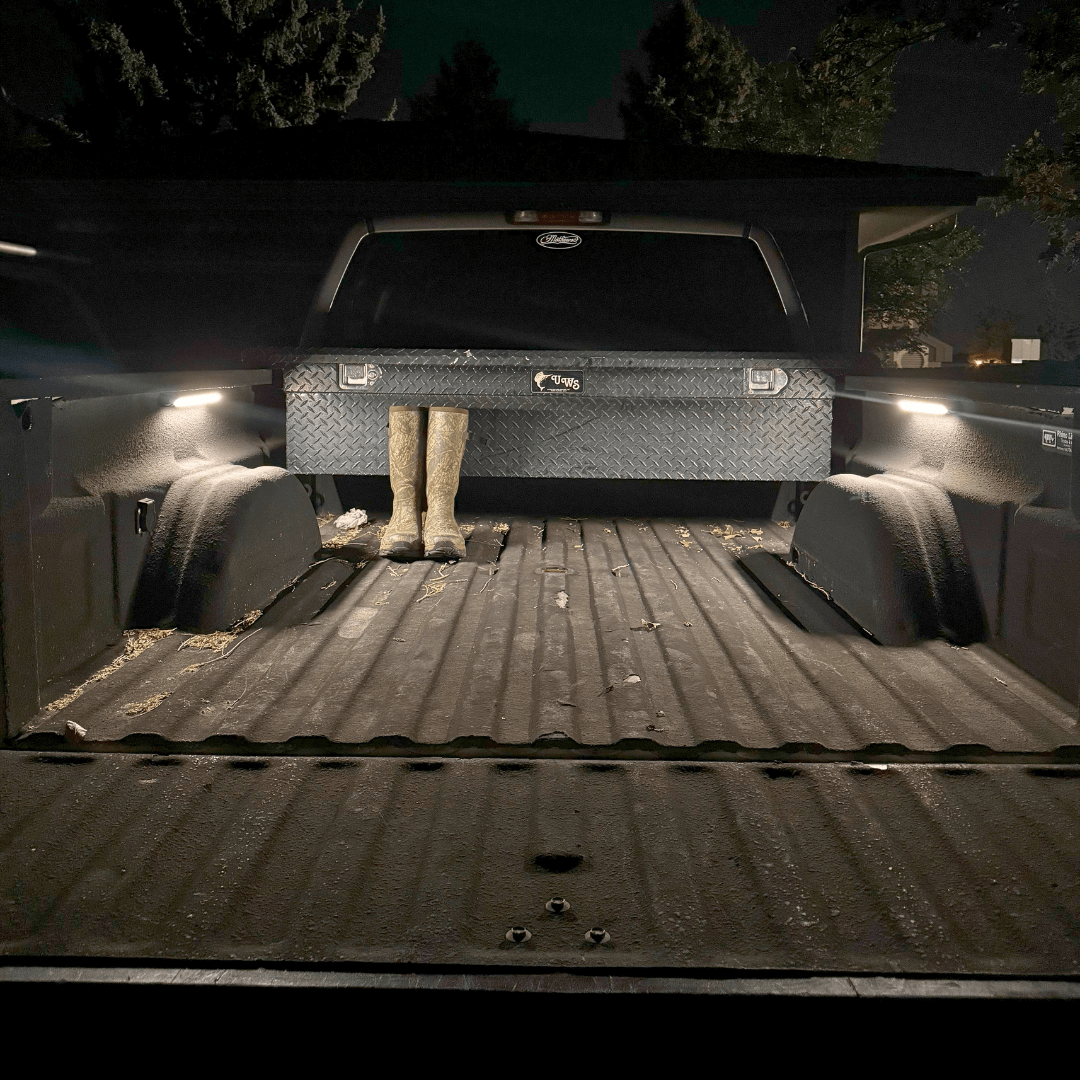

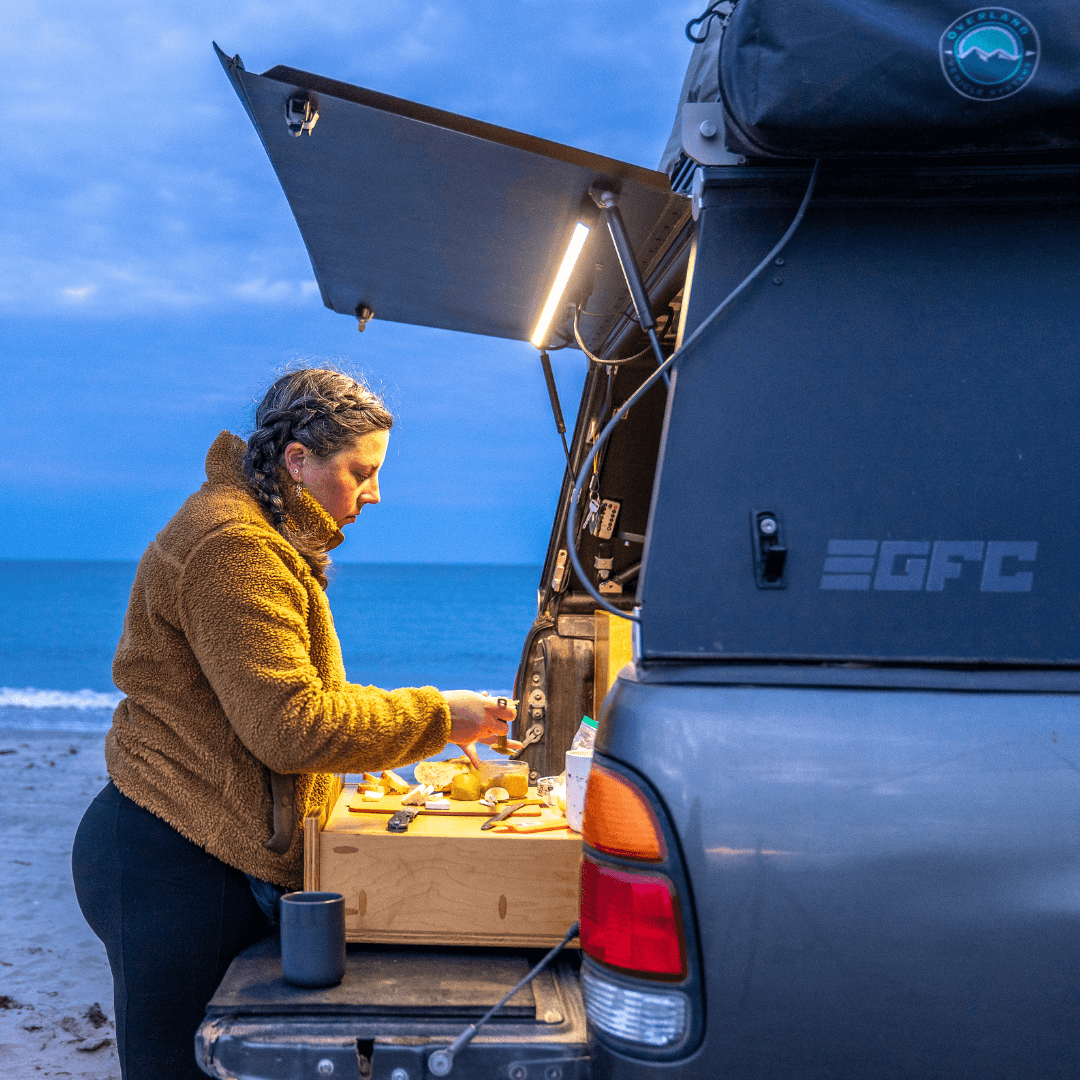

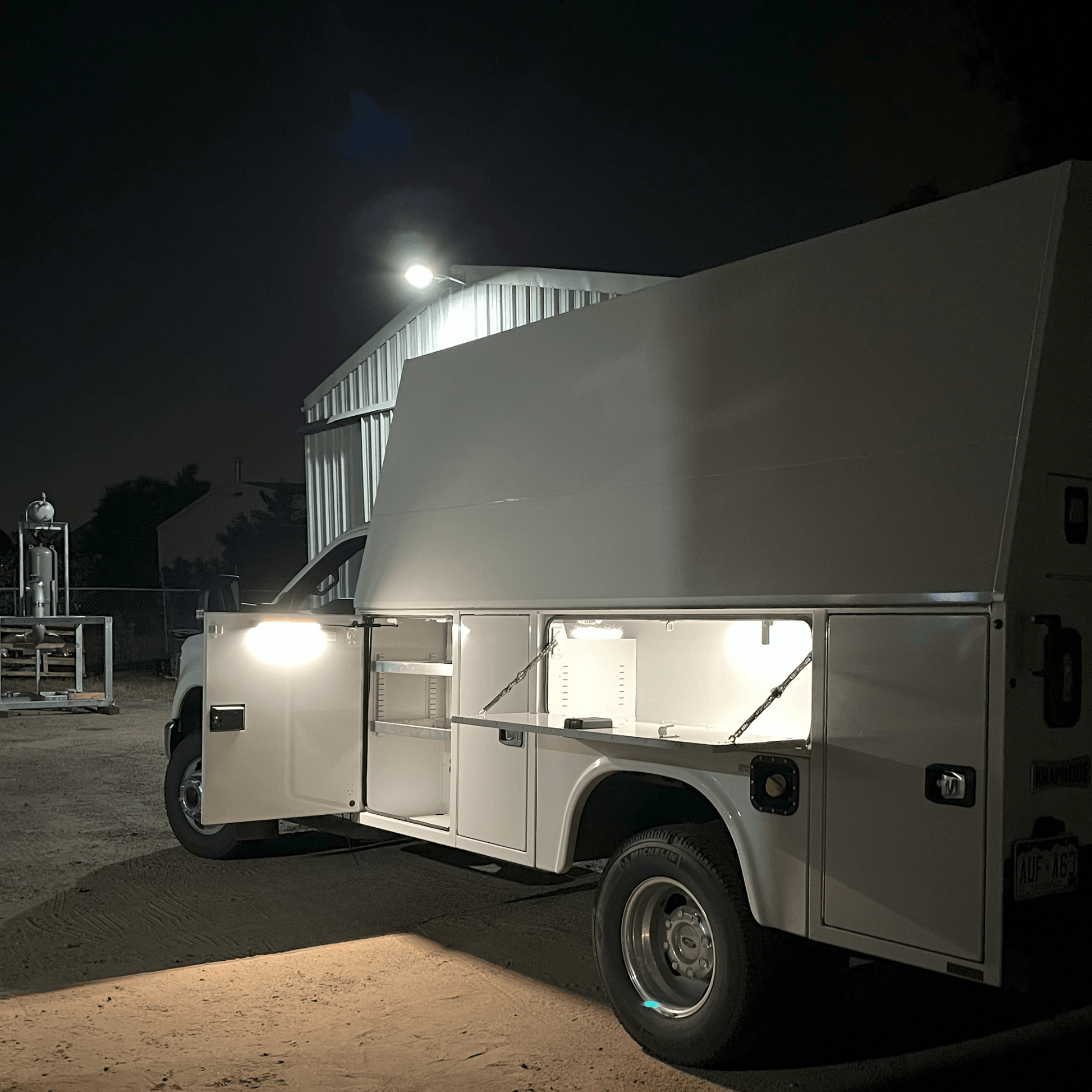

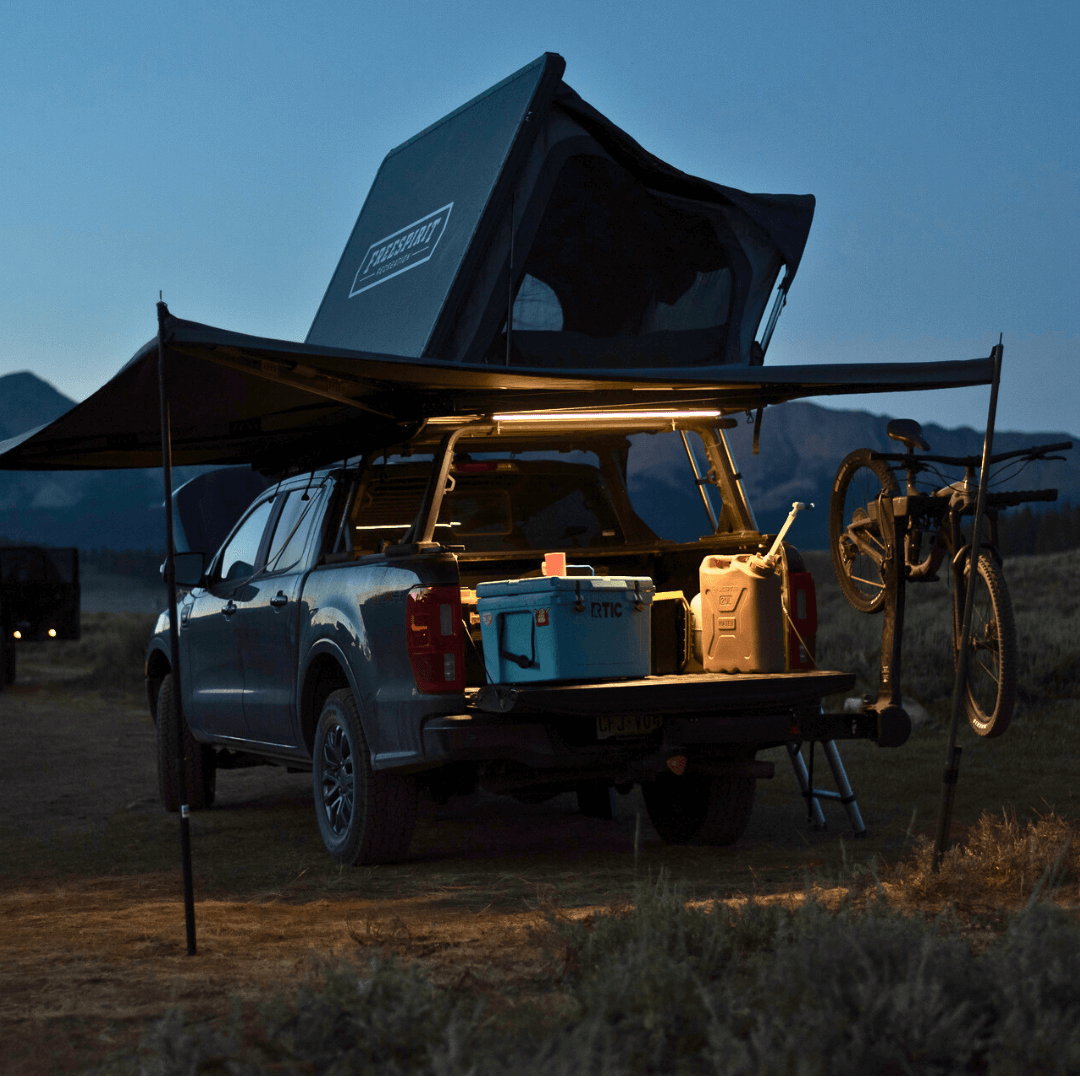

What was originally designed to be the "best truck topper light" is now quickly becoming the best "fill in the blank" 12-volt LED light. Engineered for active and hardworking lifestyles. The perfect lights for offroad trucks to trailers, campers, recreational vehicles, and so much more!

Features

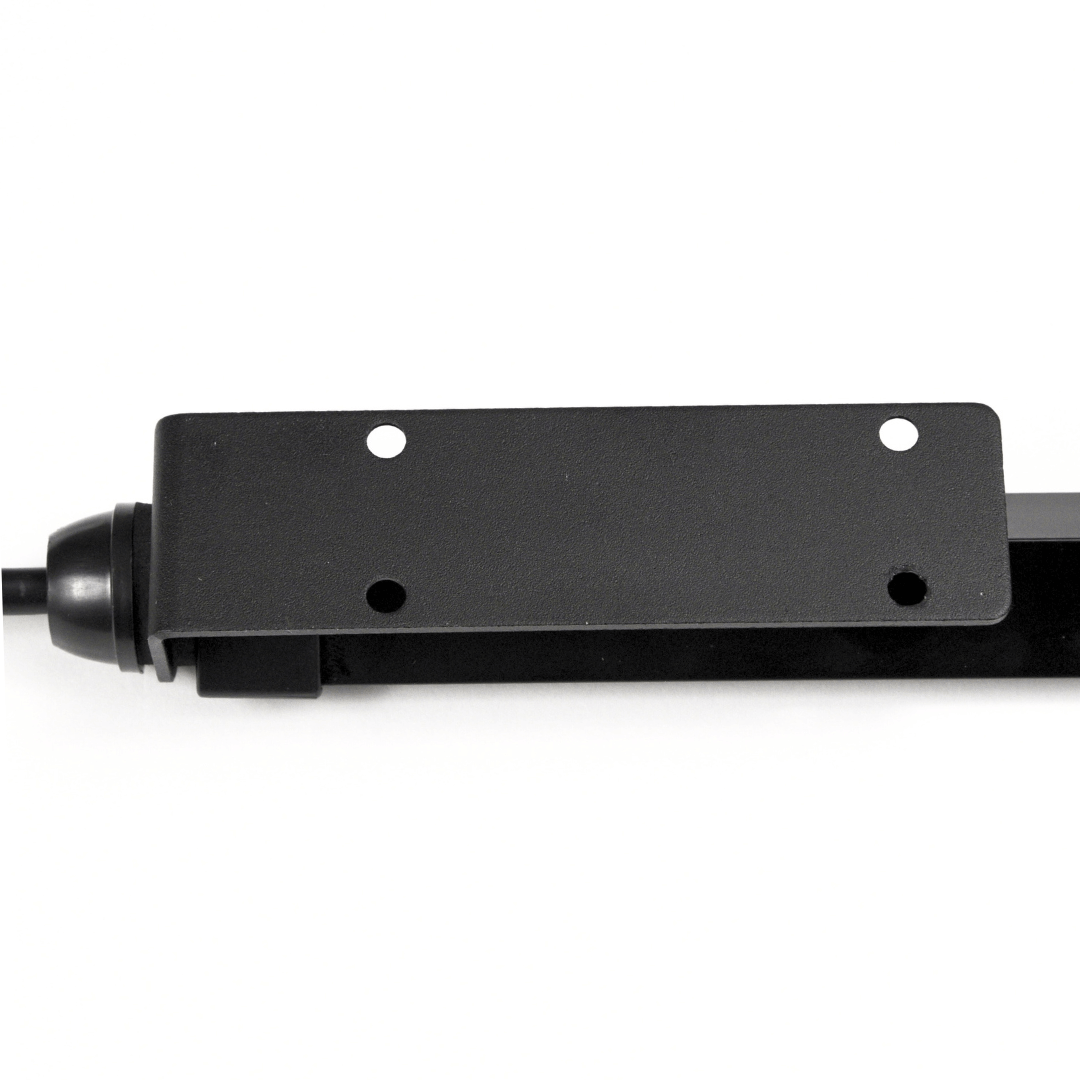

• 180° rotating mount design
• Perfect neutral white color

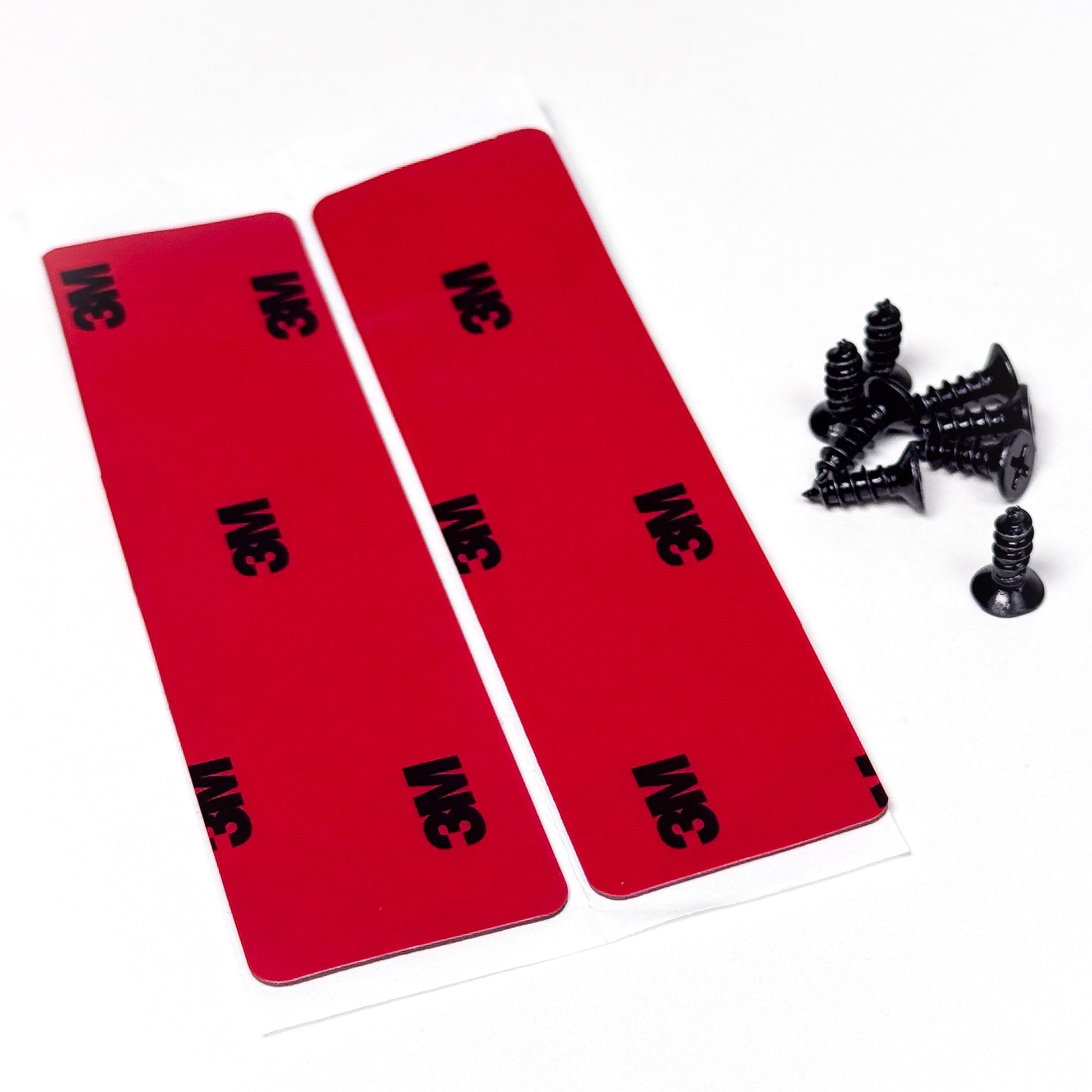

• Mounting hardware included
• Requires external switch for control

Kingpin Pro Tip

V-Series lights throw a slightly narrower light beam compared to F-Series lights. The lens is narrower. This can provide more isolation and less bleed into other areas where you may not want light.

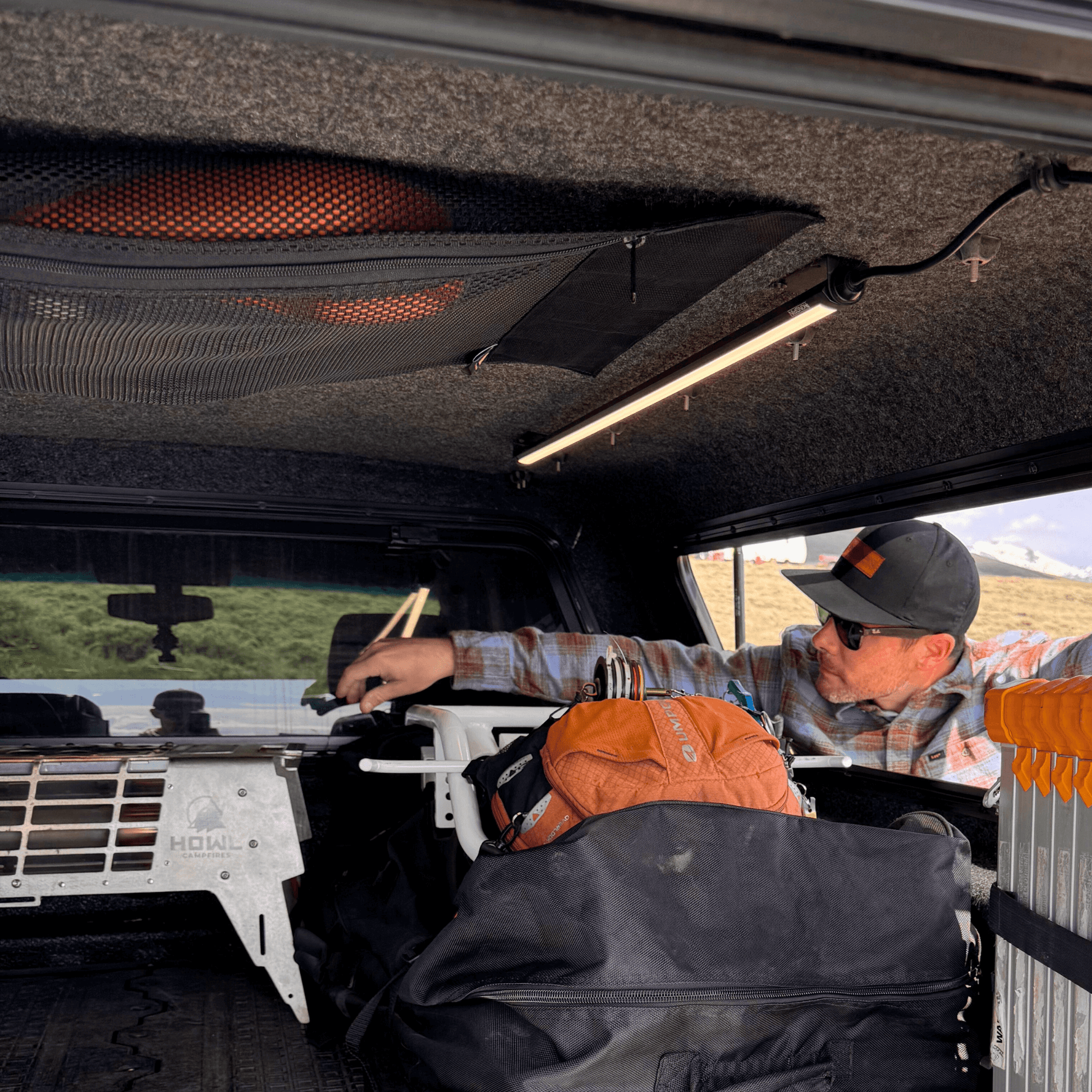

V-Series 40" Light

Durable, low-profile, rotating LED light is what the Kingpin V-Series offers.

What was originally designed to be the "best truck topper light" is now quickly becoming the best "fill in the blank" 12-volt LED light. Engineered for active and hardworking lifestyles. The perfect lights for offroad trucks to trailers, campers, recreational vehicles, and so much more!

The V-Series 40" is the original workhorse that started it all.

Features

• 180° rotating mount design
• Perfect neutral white color
• Mounting hardware included
• Requires external switch for control

Kingpin Pro Tip

V-Series lights throw a slightly narrower light beam compared to F-Series lights. The lens is narrower. This can provide more isolation and less bleed into other areas where you may not want light.
