Uni-Ball Tool

The AGM Uni-Ball Tool lets you replace worn uni-balls, also known as spherical bearings, without removing the suspension or steering component from the vehicle.

Instead of pulling large components off the car, fighting them in a shop press, or beating on expensive parts with a hammer and punch, the Uni-Ball Tool gives you a compact, controlled way to press the worn bearing out and install the new one.

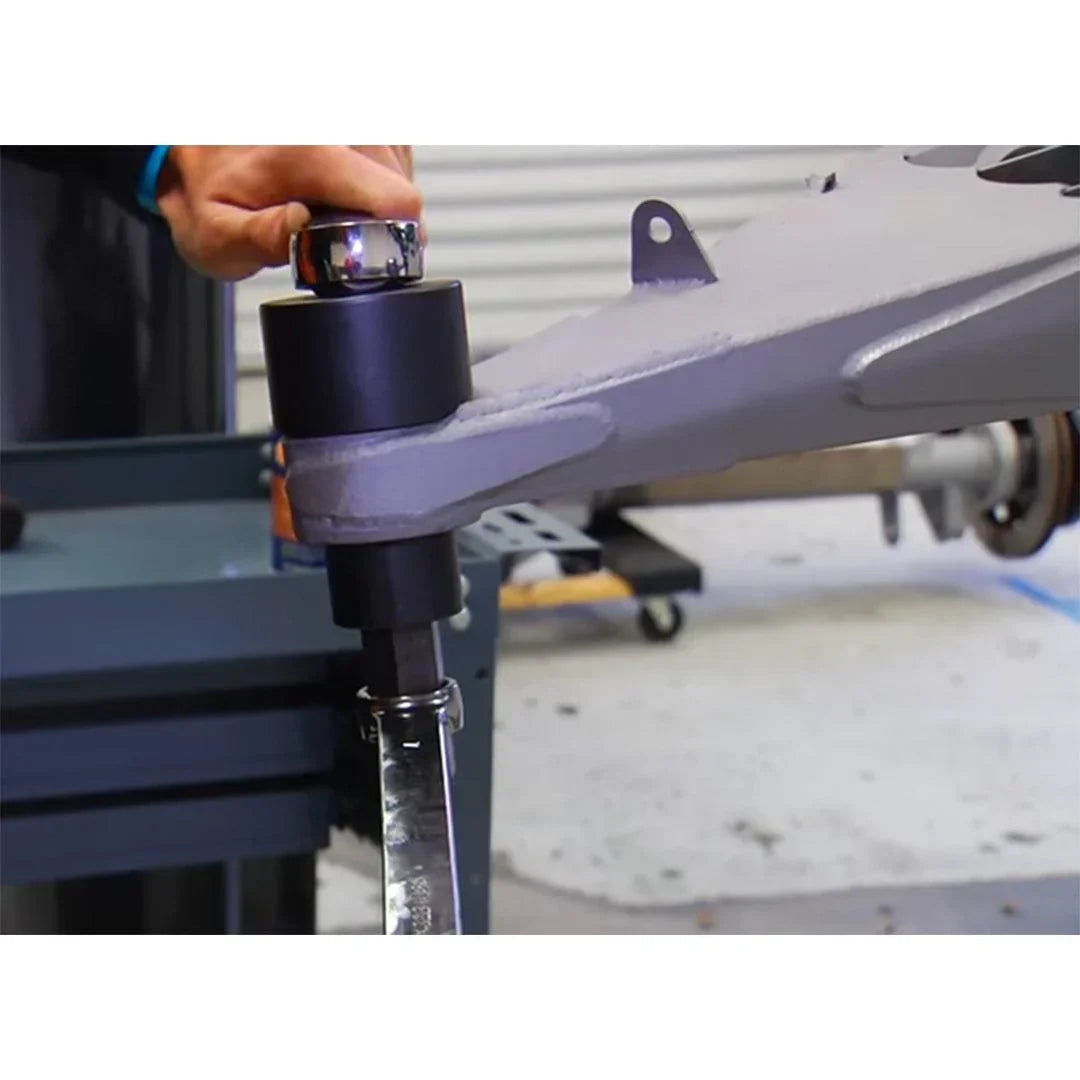

After removing the retaining C-clip, the tool uses a piston, cup, ACME-thread bolt, load-bearing washer, and nut to pull the worn uni-ball out of the component and into the receiving cup. To install the new uni-ball, flip the cup and piston positions and press the replacement bearing back into place.

Built for race teams, fabricators, repair shops, and serious DIYers, each Uni-Ball Tool is made from high-strength steel for repeated service in the shop, garage, or alongside the race course.

Available Sizes

• 7/8 in. Uni-Ball Tool — Size 14 spherical bearings
• 1 in. Uni-Ball Tool — Size 16 spherical bearings
• 1-1/4 in. Uni-Ball Tool — Size 20 spherical bearings
• 1-1/2 in. Uni-Ball Tool — Size 24 spherical bearings

What’s Included

Each Uni-Ball Tool includes:

• Press cup
• Press piston
• ACME-thread bolt
• Load-bearing washer
• Nut

Materials & Finish

• Cup and piston: Black oxide coated steel
• ACME-thread bolt and nut: Zinc coated steel

Important Use Note

Use hand tools only. Do not use an impact wrench or powered driver to operate the Uni-Ball Tool.
